Grove TMS9000E
Price excl. VAT
Print
INFO
Category
Mobile and all terrain cranes
Brand / model
Grove TMS9000E
Year
2012
Location
Georgia, USA, Georgia
Country
United States
General grade
1
2
3
4
5
Mascus ID
66B2CAD6
PRICING
Select Currency
DETAILS
Customer asset number
976
Maximum lift capacity
242,508 lbs
Maximum lift height
142 feet
Attachments
https://freecranespecs.com/Grove/TMS9000E
Additional information

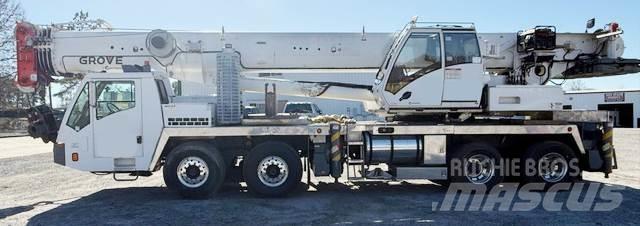

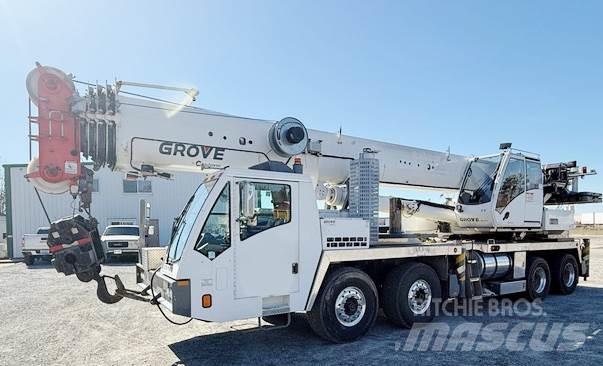

2012 Grove TMS9000E, 110 Ton, Hydraulic Truck Crane; CranesList ID: 976,
36'-142' Five Section Full Power Boom with patented TWIN-LOCK boom pinning system and Quick reeving type boom nose,
33' – 56' bifold lattice swingaway extension (Jib) manual offsettable from 0°, 20°, 40°,
Main & Auxiliary Winches with 19 mm or 3/4" wire rope,
Drum Rotation Indicator, Load Moment and Anti-Two Block System,
Hook Block,
Air Conditioning UP and Heaters Up and Down,
7' 62" wide 8 x 4 x 4 Drive Grove Carrier,
Cummins Ism450 Six Cylinder, 450 Bhp, Turbo-Charged And After Cooled Diesel Engine - AS PER GROVE SPECIFICATIONS AND SUBJECT TO FINAL CONFIRMATION,
Roadranger 11 speeds forward, 3 reverse Transmission - AS PER GROVE SPECIFICATIONS AND SUBJECT TO FINAL CONFIRMATION,
Front Tires: 445/65R 22.5, tubeless, high quality, mounted or aluminum disc wheels,
Rear Tires: 315/80R 22.5, tubeless, high quality, mounted on aluminum disc wheels,
Four hydraulic telescoping, single stage, double box beam outriggers with inverted jack and integral holding valves. Quick release type steel outrigger floats (24 in) diameter. Three position setting with fully extended, intermediate (50%) extended and fully retracted capacities,

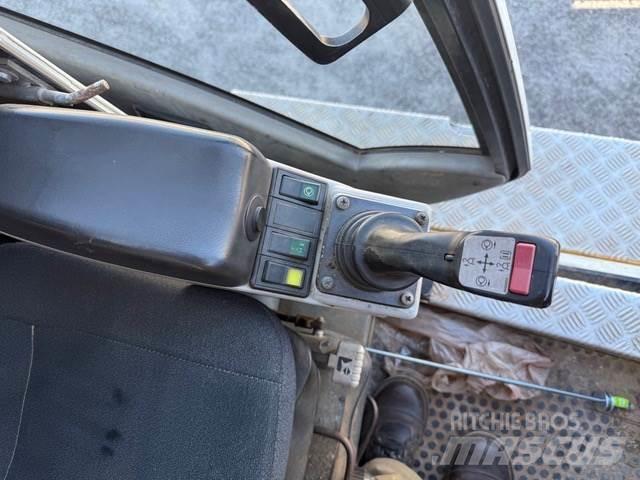

Outrigger Controls - Located in the superstructure cab and on either side of carrier,
Crane Is Freshly Certified.
... IN GEORGIA!
