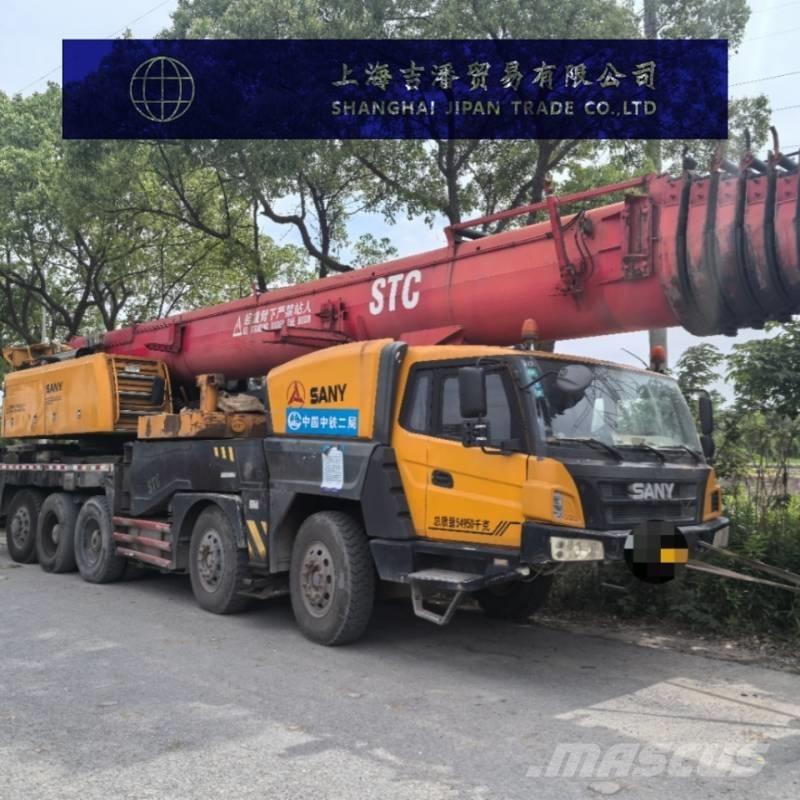

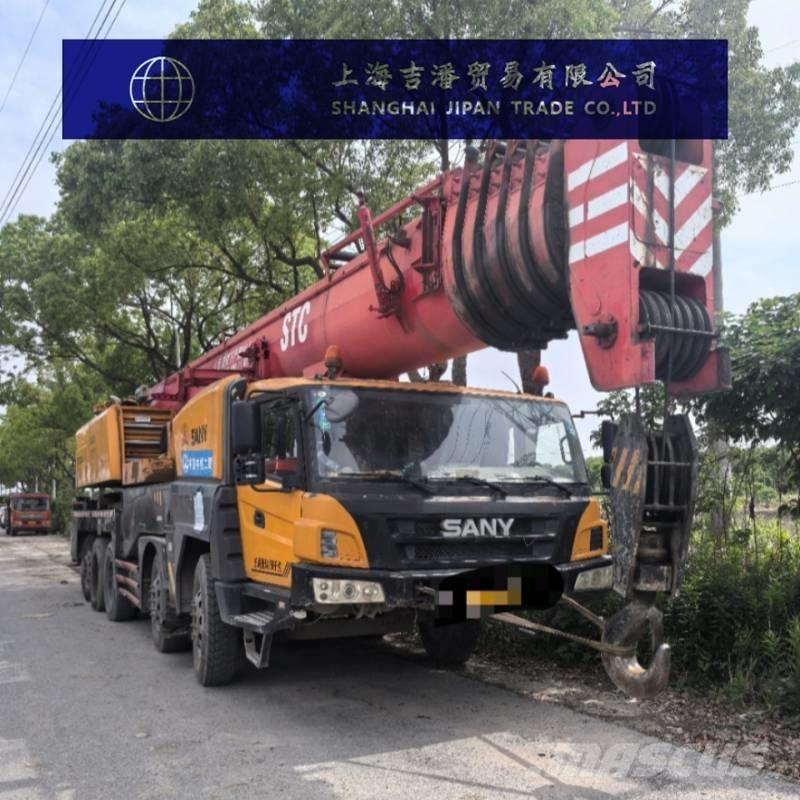

Sany STC 1000

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Sany Heavy Industry STC1000C7-1 crane parameter configuration Lifting capacity Maximum rated lifting capacity (t) 100 The maximum rated lifting torque (KN.m) is 4057 Maximum lifting height - full extension arm (m) 102.5 Maximum lifting capacity (tons) 91-180 tons Job speed parameters The maximum lifting speed of the main winch (m/min) is 135 The total extension time of the lifting arm (s) is 620 Rotation speed (rpm) 1.5 motor Chassis engine model Weichai WP12 Rated power (kw/rpm) 294/1900 Driving parameters Maximum travel speed (km/h) 90 Minimum turning radius (m) 12 Maximum climb (%) 43 Approach/Departure Angle (°) 17/17 Specifications of the whole machine The total length of the whole machine (mm) is 16240 The overall width of the whole machine (mm) is 3000 The overall height of the whole machine (mm) is 3995 Operating weight (t) 54.6 Total counterweight (t) 41 Outrigger span Vertical × horizontal (m) 7.3*8.1
