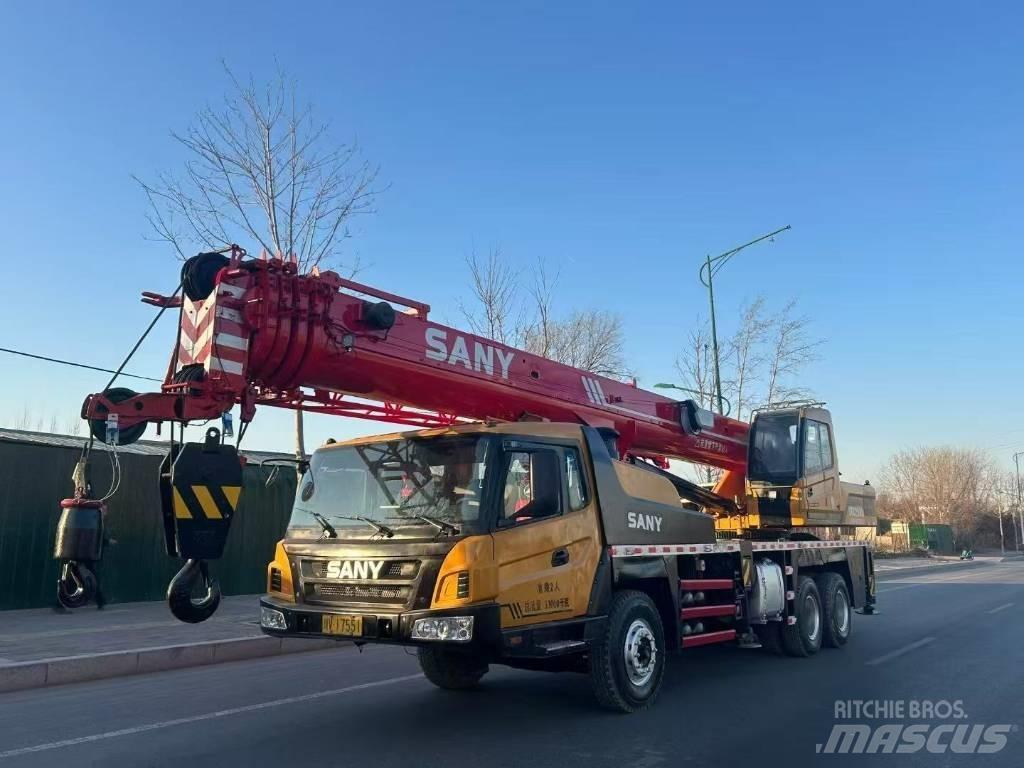

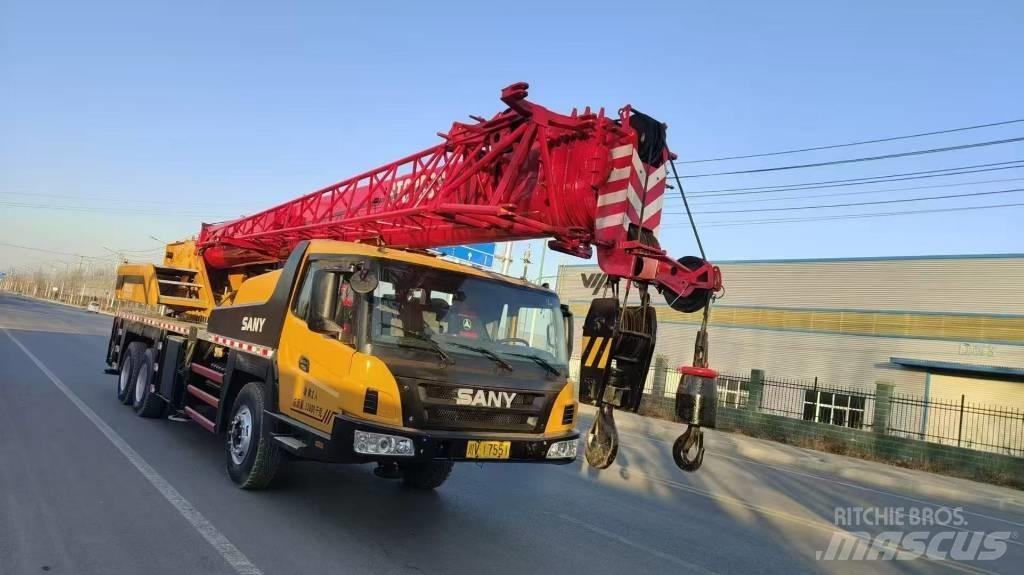

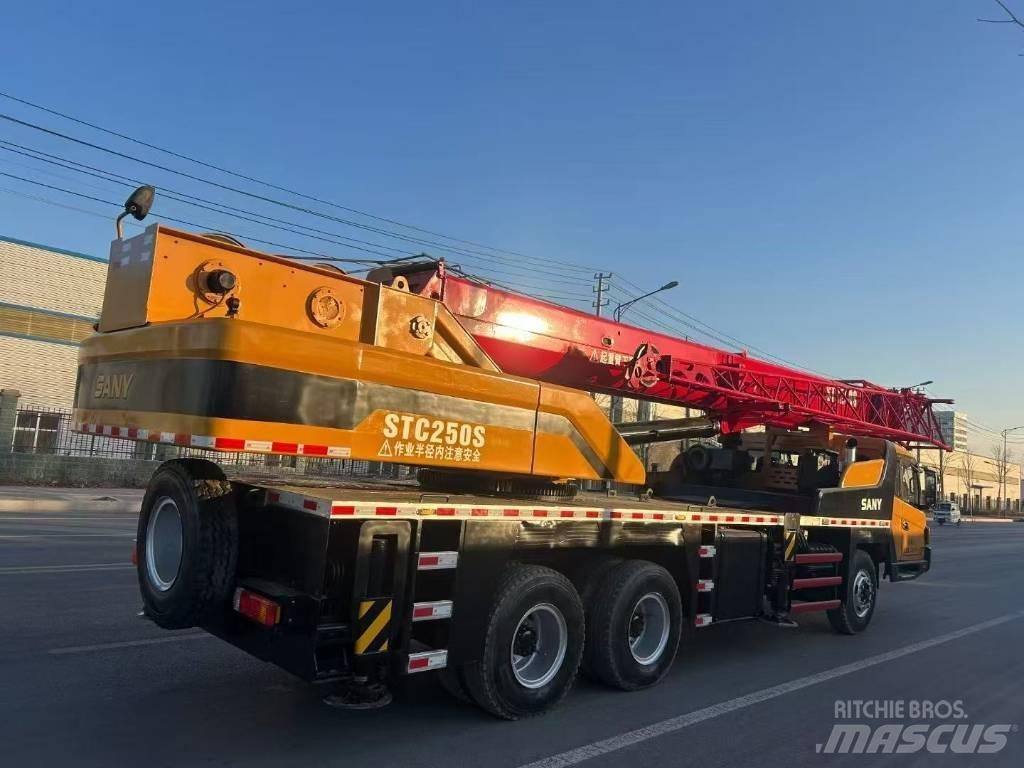

Sany STC 250 S
Price excl. VAT
Print
INFO
Category
Mobile and all terrain cranes
Brand / model
Sany STC 250 S
Year
2021
Hours
3,856 h
Country
China
General grade
1
2
3
4
5
Mascus ID
3E3AABEF
PRICING
Select Currency
DETAILS
Date of latest inspection
2025-05-16
Amount of previous owners
1
Gross weight
46,077 lbs
Maximum lift capacity
55,116 lbs
Max lifting capacity at end of jib
44,092 lbs
Min boom length
9.84 feet
Emission level
Stage V / Tier V
Boom length
135 feet
Min luffing jib
9.84 feet
Jib length of crane
135 feet
Maximum lift height
148 feet
Crane type
Hydraulic jib
Original color
Orginal
Engine manufacturer
Sany
Transport dimensions (LxWxH)
1285025003.65 m
Carrier type
Wheeled
Condition Info/Guarantee
1 Year
Front tires / undercarriage remaining
98
Rear tires remaining
2
Production country
China
Delivery terms
FCA, FOB, CFR, CIF, EXW
Certificates
EPA, CE
Accessories
Hook blocks
Additional information
整体全长:12850mm
整体全宽:2500mm
整体全高:3650mm
动力参数
发动机最大功率:206/2200、220/2300(kW/rpm)
发动机最大输出扭矩:1112/(1300~1500)、1110/(1200~1700)(N.m/rpm)
行驶参数
最高行驶速度:89Km/h
最小转弯半径:10.5m
最大爬坡度:40%
百公里油耗:34.5L
起升能力参数
最大起重量:45 吨以下
最大额定起重量:25 吨
最小工作幅度:3m
最大额定起重力矩:基本臂 1029kN.m,最长主起重臂 573kN.m
最大起升高度:基本臂 11.3m,最长主起重臂 41m,最长主起重臂 + 副起重臂 49m
起重臂尺寸参数
起重臂长度 - 基本臂:10.6m
起重臂长度 - 全伸臂:40.5m
起重臂长度 - 基本臂 + 副臂:48.5m
支腿跨距参数
纵向 × 横向:6.2m×5.3m
工作速度参数
主卷扬单绳最大速度(空载第 4 层):130m/min
起重臂全伸 / 缩时间:100/100s
起重臂全起 / 落时间:45/55s
回转速度:2.2r/min
水平支腿全伸 / 缩时间:30/25s
垂直支腿全收 / 放时间:35/30s
其他参数
整备质量:32870kg
轴数:3
轴距:4690+1350
轴荷:7000/26000(并装双轴)
轮胎数:10
轮胎规格:11.00-20,11.00R20,12R22.5
