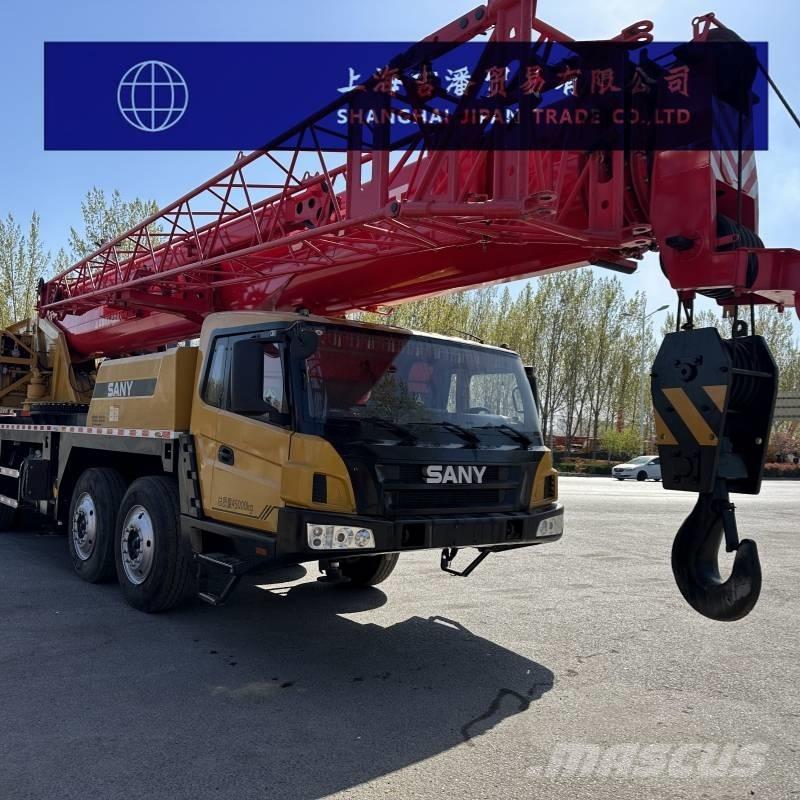

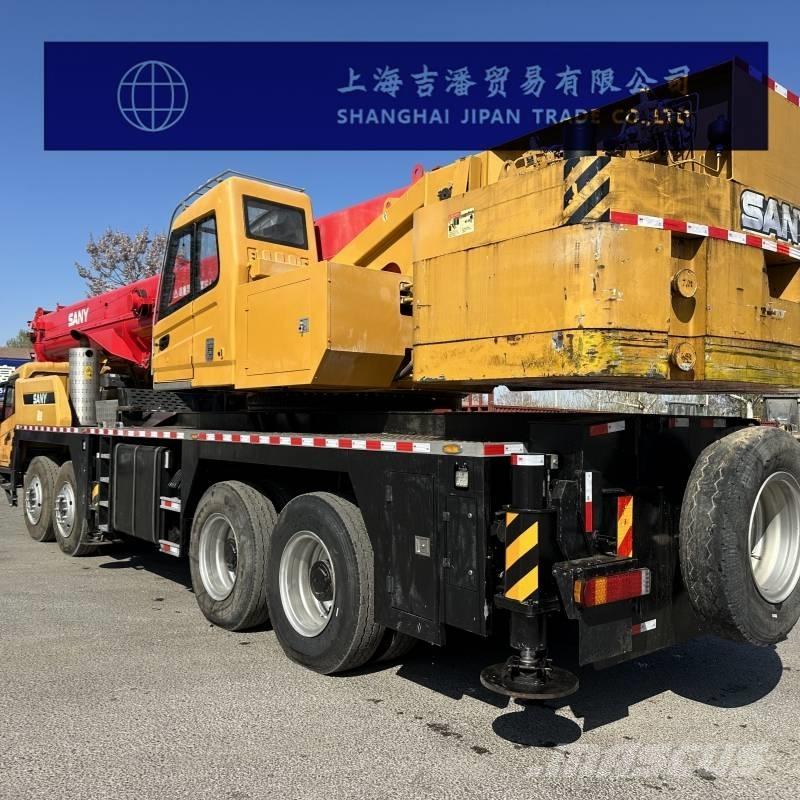

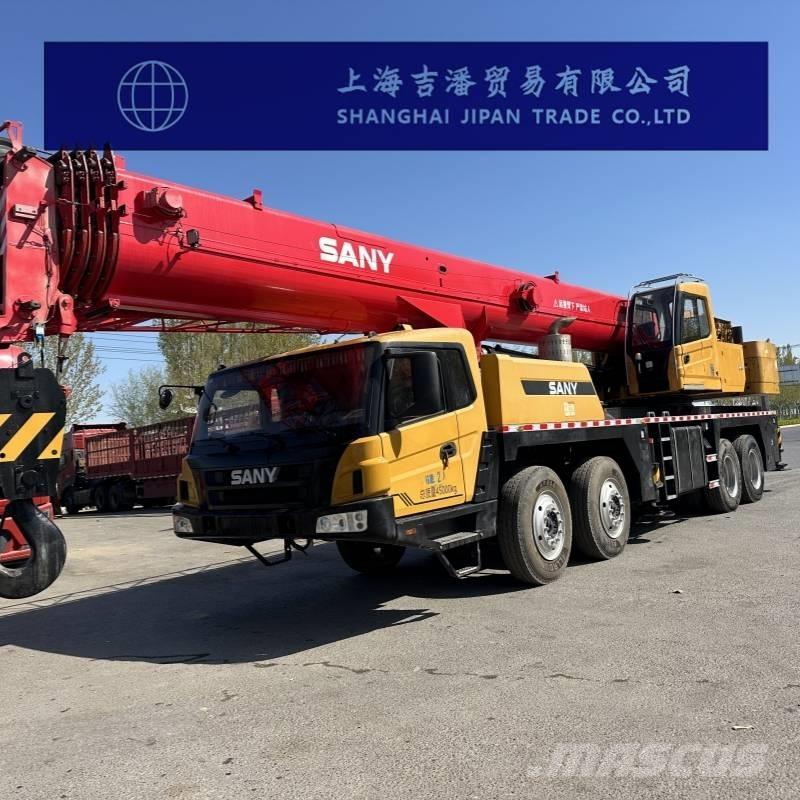

Sany STC 700 T5
Price excl. VAT
4
Favorite
Share
Save searchPrint
INFO
Category
Mobile and all terrain cranes
Brand / model
Sany STC 700 T5
Year
2019
Hours
3,000 h
Country
China
General grade
1
2
3
4
5
Mascus ID
060BE1C7
PRICING
Select Currency
DETAILS
Customer asset number
1
Date of latest inspection
2025-08-19
Serial number
1
Amount of previous owners
1
Gross weight
104,279 lbs
Maximum lift capacity
154,324 lbs
Registration number
1
Max lifting capacity at end of jib
44,092 lbs
Min boom length
9.84 feet
Emission level
Stage V / Tier V
Boom length
162 feet
Jib length of crane
162 feet
Maximum lift height
251 feet
Crane type
Fixed jib
Original color
Yellow&Red
Engine manufacturer
SANY
Transport dimensions (LxWxH)
373.23 x 110.24 x 152.76 inches
Carrier type
Wheeled
Condition Info/Guarantee
1 year
Front tires / undercarriage remaining
98
Rear tires remaining
2
Production country
China
Delivery terms
FCA, FOB, CIF, EXW
Certificates
EPA, CE
Attachments
Fly Jib
Hook
Counter Weight
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Accessories
Hook blocks
Additional information
参数名称 参数值
最大起重量 70t
最大起升高度 76.5m
最大起重力矩 3146kN·m
主卷扬最大单绳速度 130m/min
起重臂全伸 / 缩时间 125/140s
起重臂全起 / 落时间 60/90s
最大回转速度 1.7r/min
整机总重量 47300kg
最大配重 24.8t
整机全长 14970mm
整机全宽 2800mm
整机全高 3880mm
支腿跨距（横 × 纵） 8(5.27)×6.48m
发动机型号 潍柴 WP10H375E62
发动机最大功率 276/1900kW/rpm
发动机最大输出扭矩 1785/1000-1400N·m/rpm
最高行驶速度 90km/h
最小转弯半径 12m
最大爬坡度 0.45
接近角 ≥17°
离去角 ≥13°
