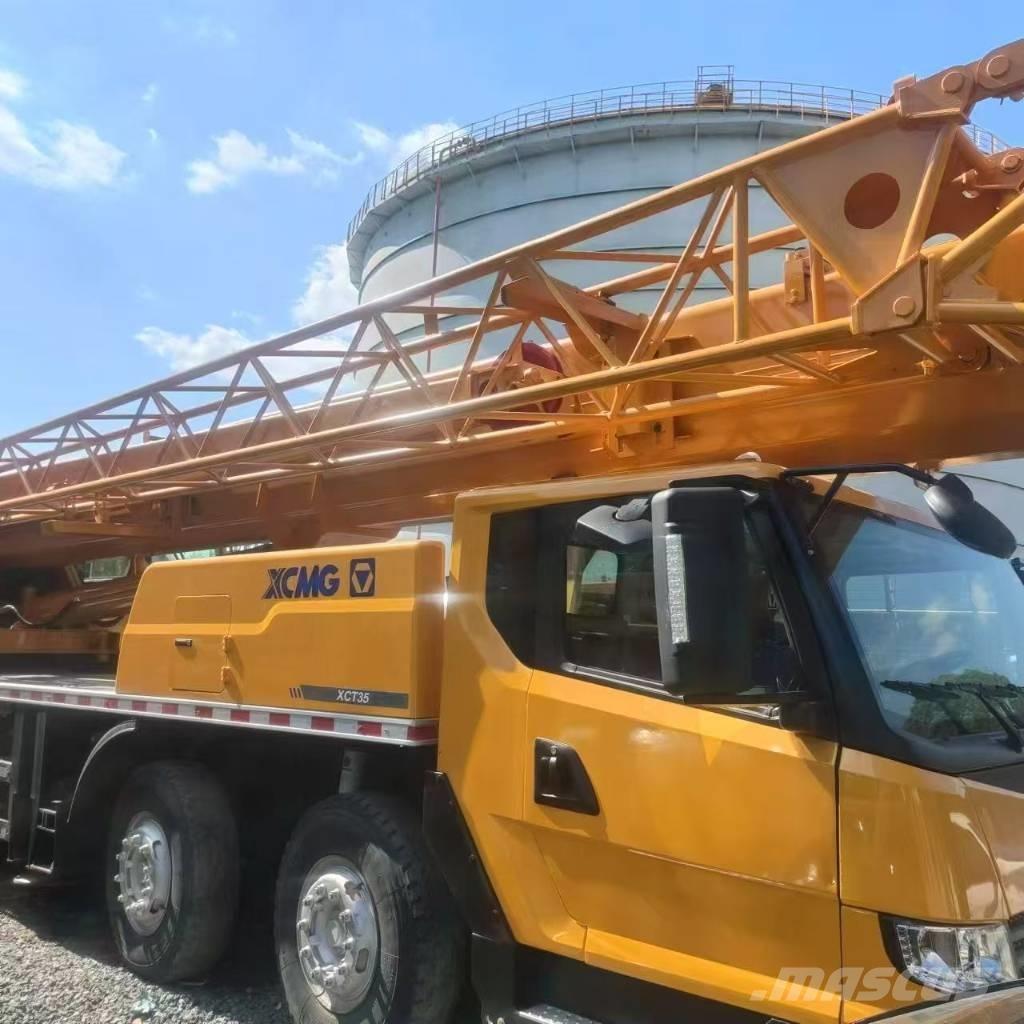

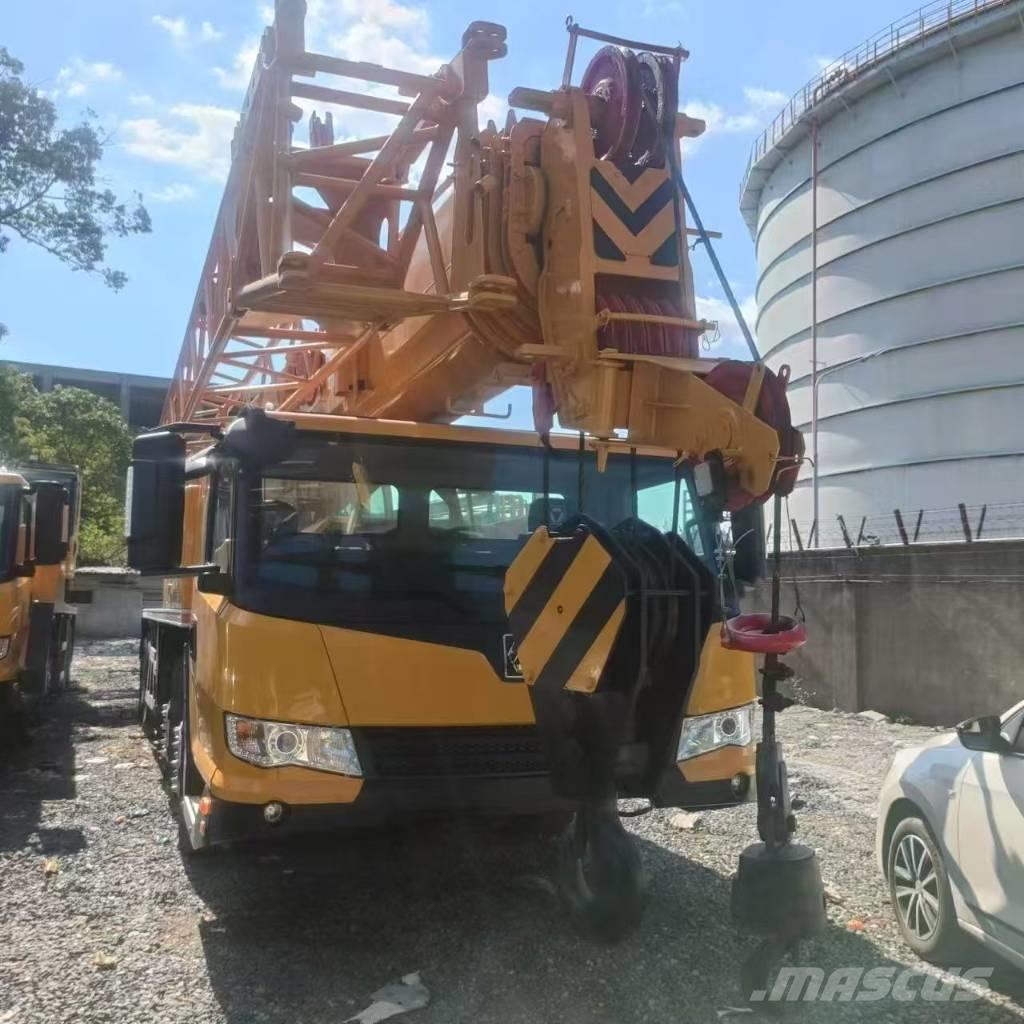

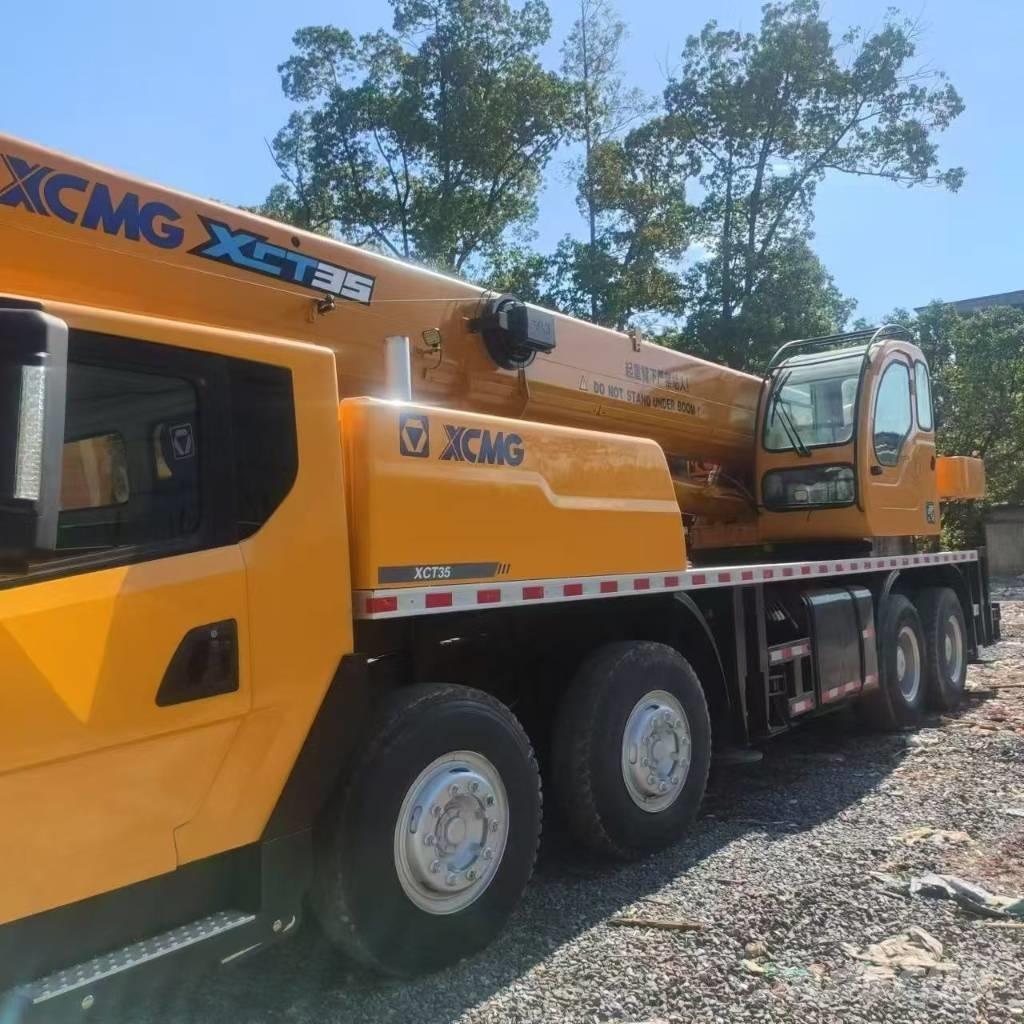

XCMG XCT 35
Price excl. VAT
5
Favorite
Share
Save searchPrint
INFO
Category
Mobile and all terrain cranes
Brand / model
XCMG XCT 35
Year
2019
Hours
3,300 h
Country
China
General grade
1
2
3
4
5
Mascus ID
ACFC5B9A
PRICING
Select Currency
DETAILS
Customer asset number
1
Date of latest inspection
2025-08-19
Serial number
1
Amount of previous owners
1
Gross weight
76,732 lbs
Maximum lift capacity
77,162 lbs
Registration number
1
Max lifting capacity at end of jib
7,716 lbs
Min boom length
9.84 feet
Emission level
Stage V / Tier V
Boom length
190 feet
Jib length of crane
190 feet
Maximum lift height
190 feet
Crane type
Fixed jib
Original color
Yellow
Engine manufacturer
XCMG
Transport dimensions (LxWxH)
0.51 x 108.27 x 139.37 inches
Carrier type
Wheeled
Condition Info/Guarantee
1 year
Front tires / undercarriage remaining
98
Rear tires remaining
2
Production country
China
Delivery terms
FCA, FOB, CIF, EXW
Certificates
EPA, CE
Attachments
Fly Jib
Hook
Counter Weight
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Accessories
Hook blocks
Additional information
徐工XCT35起重机的部分参数如下：
参数名称参数值
----
最大额定起重量35t
最大额定起重力矩1458kN·m
最小工作幅度3m
最大起升高度-基本臂10.1m
最大起升高度-全伸臂41m
最大起升高度-基本臂+副臂56.8m
起重臂长度-基本臂10.9m
起重臂长度-全伸臂42m
起重臂长度-基本臂+副臂58m
主卷扬最大起升速度130m/min
副卷扬最大起升速度130m/min
起重臂全伸时间80s
起重臂变幅时间40s
回转速度2.5rpm
底盘发动机型号SC9DF290.1Q4（上柴）或D10.31 - 40（杭发）
额定功率213/1900kW/rpm（上柴）或228/1900kW/rpm（杭发）
最高行驶速度90km/h
最大爬坡度42%
接近角/离去角19（18）°、12/13.5°
最小离地间隙260mm
整机全长13065mm
整机全宽2750mm
整机全高3540mm
支腿跨距纵向5.975m×横向7m
