Category
Mobile and all terrain cranes
Brand / model

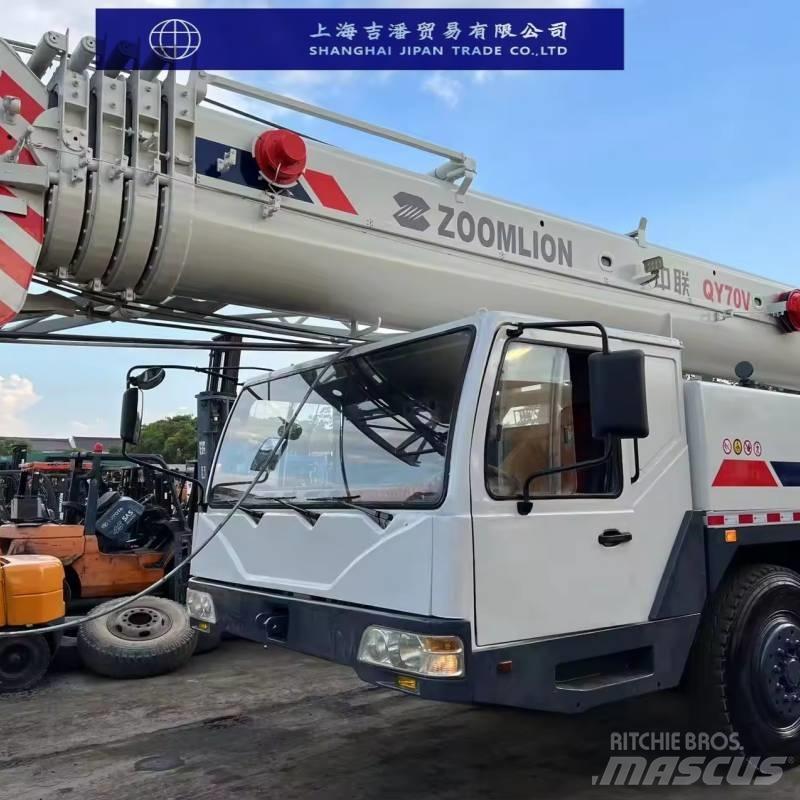

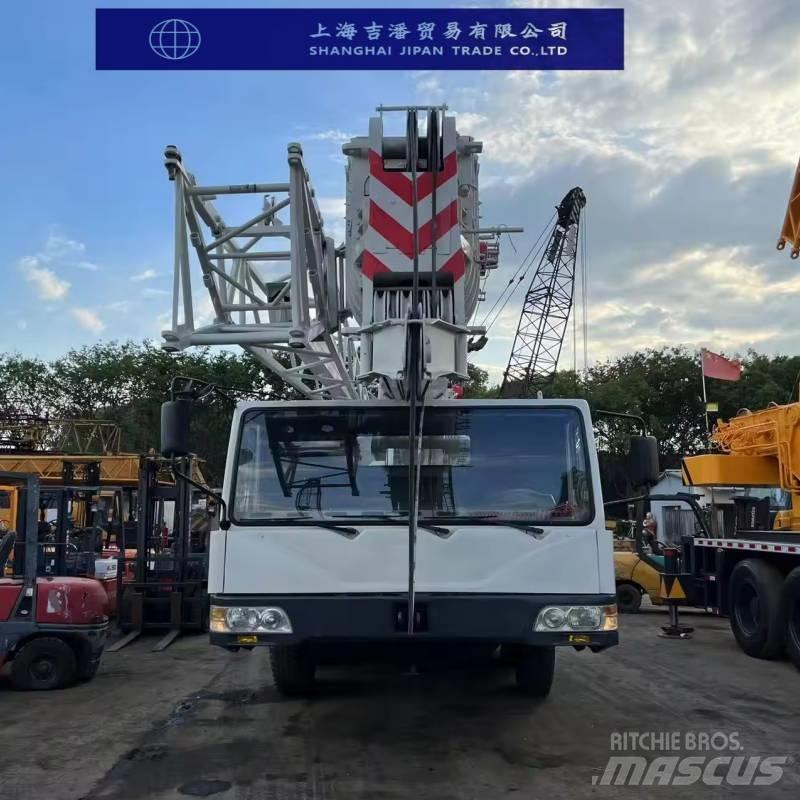

Zoomlion QY 70 H
Year
2018
Hours
3,562 h
Country
China
General grade
1
2
3
4
5
Mascus ID
E2359531

DETAILS

Date of latest inspection
2025-05-28
Amount of previous owners
1
Gross weight
105,822 lbs
Maximum lift capacity
154,324 lbs
Max lifting capacity at end of jib
154,324 lbs
Min boom length
49.2 feet
Emission level
Stage V / Tier V
Boom length
45.9 feet
Min luffing jib
45.9 feet
Luffing jib
45.9 feet
Jib length of crane
45.9 feet
Maximum lift height
205 feet
Hook height of crane - horizontal jib
49.2 feet
Hook height of crane - luffed jib
49.2 feet
Upper hours
857 h
Crane type
Hydraulic jib
Original color
original
Counterweight
14000
Carrier engine
4 t
Engine manufacturer
original
Transport dimensions (LxWxH)
570.87 x 110.24 x 151.57 inches
Carrier type
Wheeled
Condition Info/Guarantee
1 year
Front tires / undercarriage remaining
98%
Rear tires remaining
2
Delivery terms
FCA, FOB, CFR, CIF, EXW
Certificates
EPA, CE
Attachments
Fly Jib ,Hook ,Counter Weight, ETC. We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Fly Jib ,Hook ,Counter Weight, ETC. Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.
Accessories
Hook blocks
Additional information
起重性能参数 额定总起重量:70 吨 基本臂最大起重力矩:2646kN·m 最长主臂最大起重力矩:1376kN·m 基本臂最大起升高度:12.8 米 主臂最大起升高度:46.4 米 副臂最大起升高度:62.5 米 单绳最大速度(主卷扬):140m/min 单绳最大速度(副卷扬):120m/min 起重臂起臂时间:55 分钟 起重臂伸出时间:110 秒 回转速度:0-1.7r/min 行驶参数 最大行驶速度:75km/h 最大爬坡度:37% 最小转弯直径:≤20 米 最小离地间隙:300mm 100km 燃油消耗量:48L 尺寸参数 整机外形尺寸(长 × 宽 × 高):14500mm×2800mm×3850mm 支腿纵向跨距:6.15 米 支腿横向跨距:7.8 米(全伸)、5.17 米(半伸) 尾部回转半径:4280mm 质量参数 行驶状态自重(总质量):48000kg 整车整备质量:47870kg 前轴载荷:24000kg 后轴载荷:24000kg 起重臂参数 主臂长度:12.0-46.0 米 主臂仰角:-2°-80° 副臂长度:9.5 米、16.0 米 副臂安装角度:0°、15°、30° 发动机参数 发动机型号:潍柴(杭发)WD615.46 额定功率:266kW/2200rpmShow more

上海吉潘贸易有限公司

上海市松江区车墩镇莘莘路32号3799 201600 上海 上海 China
5
