INFO

Category
Articulated boom lifts
Brand / model

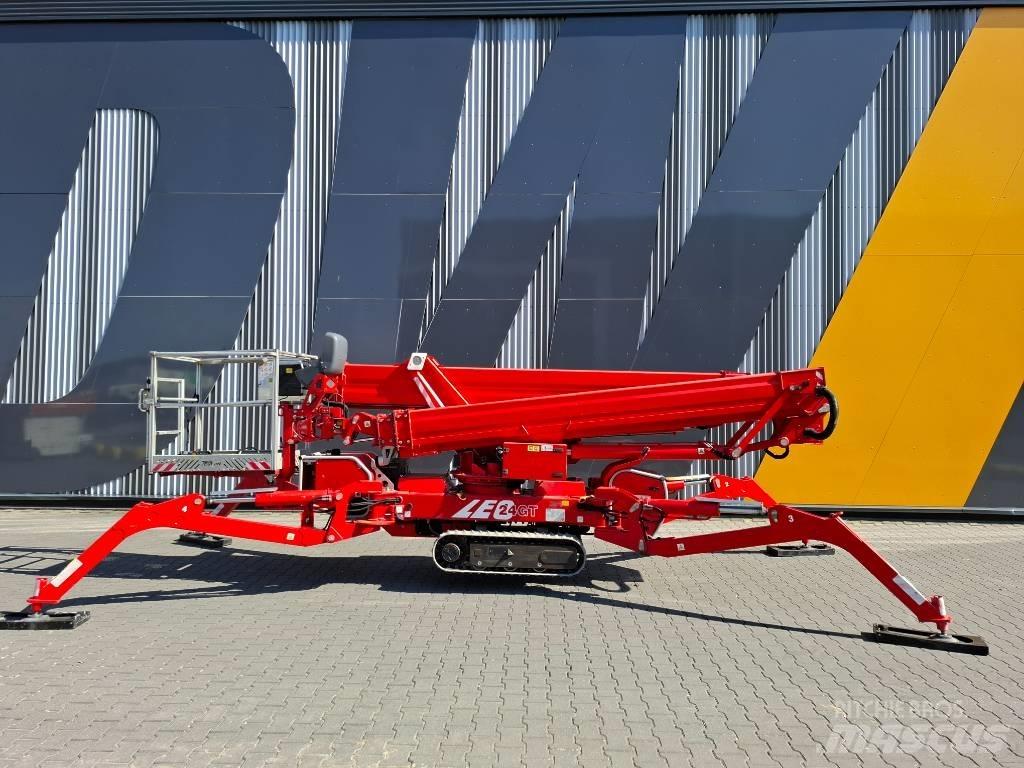

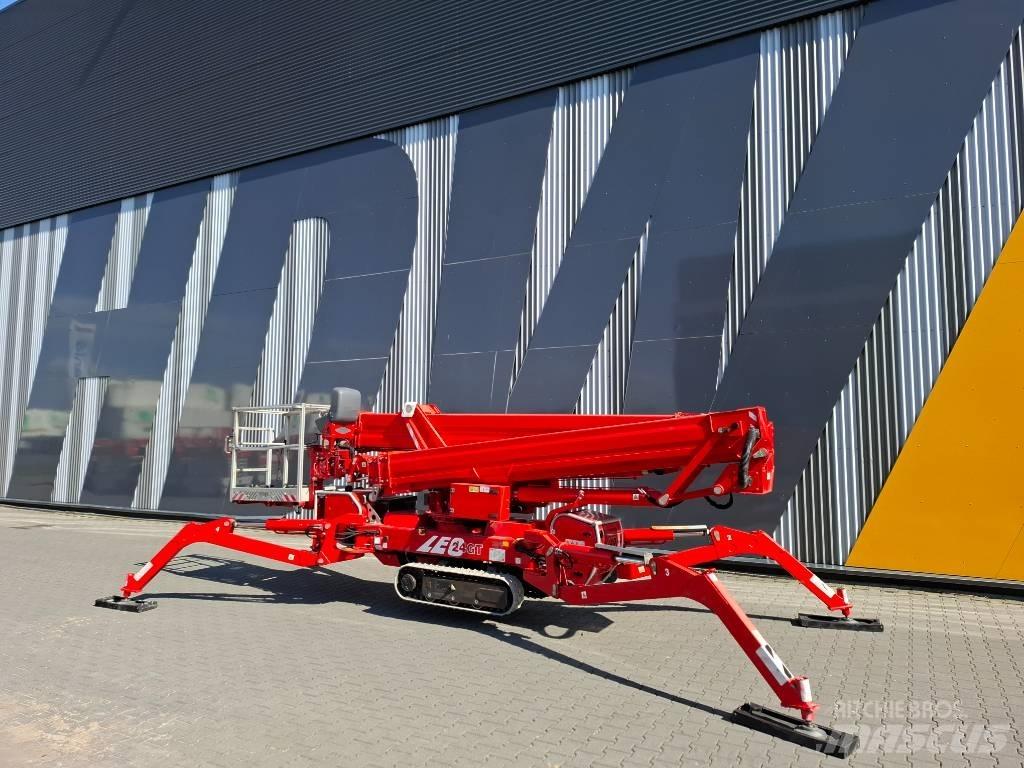

Teupen LEO24GT
Year
2016
Hours
1,748 h
Condition
Reconditioned,Operates With Deficiencies
Location
Heinenoord, Zuid-Holland
Country
Netherlands
General grade
1
2
3
4
5
Mascus ID
708840C6

PRICING

Select Currency

DETAILS

Working height
78.7 feet
Power type
Hybrid
Amount of previous owners
1
Full service history
Yes
Max horizontal reach
42.0 feet
Traction
Tracked
Serial number
10000853
Emission level
Stage IV / Tier IV final
Gross weight
6,592 lbs
Maximum lift capacity
551 lbs
Max swing of arm in degrees
450
Max swing of platform in degrees
180
Engine manufacturer
Kubota Z206
Original color
Originele kleur
Transport dimensions (LxWxH)
253.94 x 35.04 x 78.35 inches
Condition Info/Guarantee
No warranty
Front tires / undercarriage remaining
40
Rear tires remaining
40
Production country
Germany
Delivery terms
EXW
Certificates
CE
Attachments
- Remote controle. - Outrigger plates
Additional information
Working height, max. 24,00 m Platform height, max. 22,00 m Horizontal outreach, max. (100 kg) 12,80 m Horizontal outreach, max. (250 kg) 10,20 m Negative reach, max. 5,00 m Up and over clearance, max. 9,50 m Platform capacity, max. 250 kg Jib, movable 165° Platform rotatable 180° Turntable rotation, max. 450° To be jacked up on ground slope of 16,7° / 30,0 % Track drive, height- & width adjustable 21 cm / 42 cm Gradeability, max. 16,7° / 30,0 % Slope angle, max. 15,5° / 30,0 % Travel speed, max. 2,5 km/h Outrigger plate ⌀ 0,18 m WEIGHT* Total weight 2990 kg Live load in travelling position 3,76 kN/m² Live load in working position 1,38 kN/m² Point load per outrigger plate, max. 22,50 kNShow more

HDW Nederland B.V.

Rooischaar 6 3274 KM Heinenoord Zuid-Holland Netherlands
