Marini Magnum 160

Price excl. VAT

On Request

Compnay LOGO
Images2

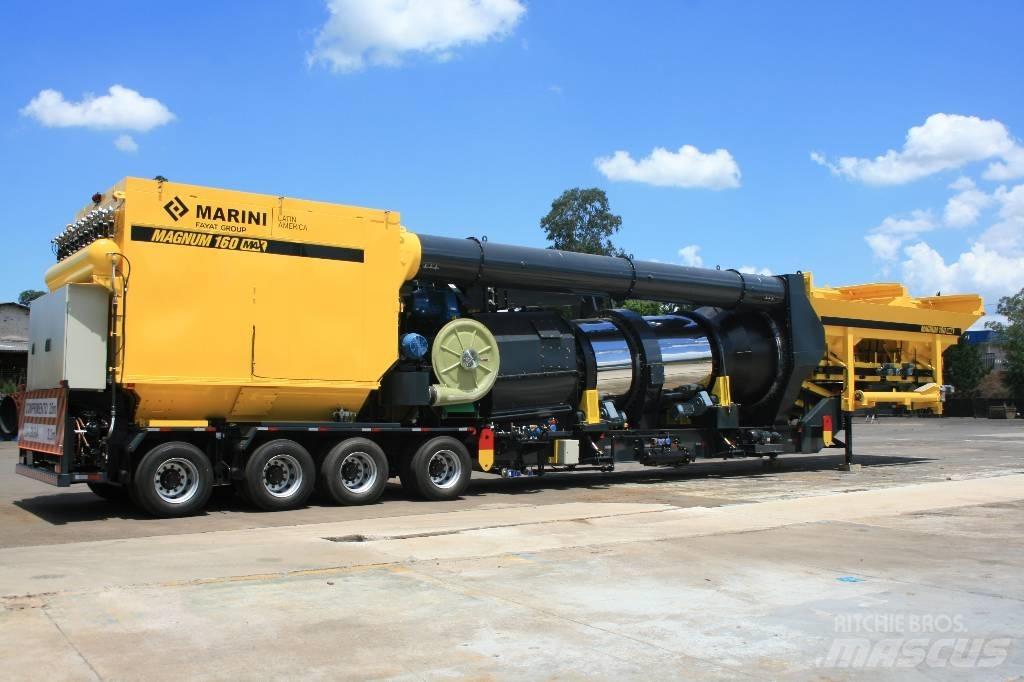

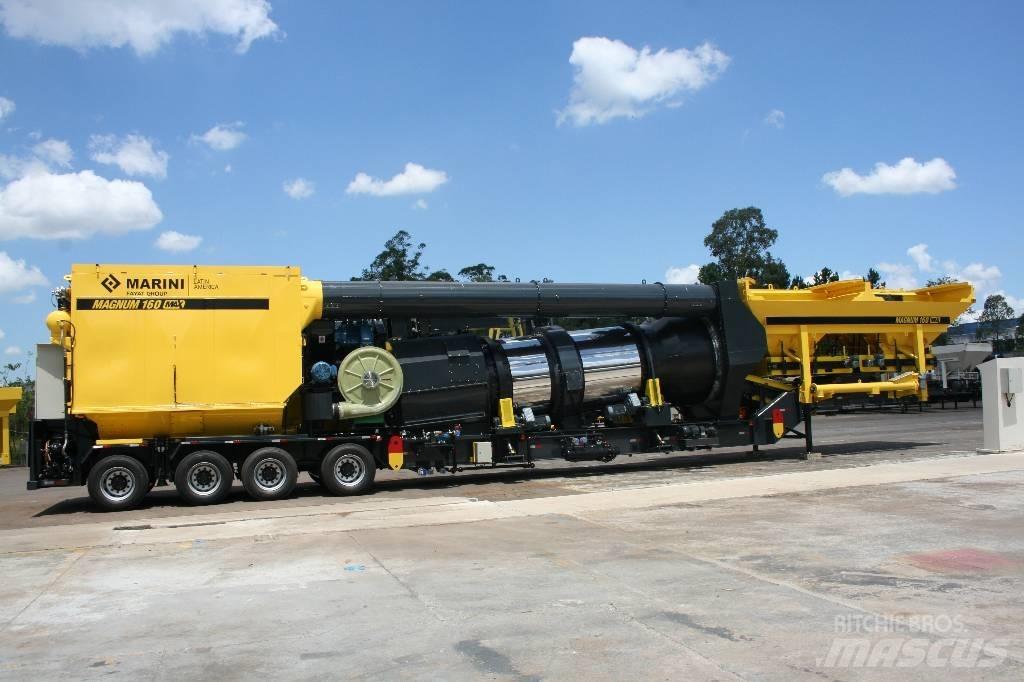

Marini Magnum 160 Asphalt Mixing Plants
Marini Magnum 160 Asphalt Mixing Plants
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Category
Asphalt Mixing Plants
Brand / model
Marini Magnum 160
Year
2025
Condition
New/unused
Location
Finowfurt bei Berlin, Brandenburg
Country
Germany
Mascus ID
0EE96996

DETAILS

Additional information
new Marini Magnum 160 mobile asphalt mixing plant year: NEW capacity: up to 160 t./h 1 year guarantee - calorific power of the fuel 9,600 kcal / kg; - material passing through the #8 (2,38mm) sieve is no more than 20%; - The equipment was developed in order to facilitate the transportation as much as possible without the need of pilot cars. Simply hook up the equipment to the asphalt binding agent storage and fuel system. - Chassis is built with a highly resistant I-Beam with a forged king pin, 3 axles with special tires, suspension springs, air brakes, tank, and safety valve, highway signaling system, mechanical foot with telescopic support. Quadruple feed bin (two-by-two) with 3,80mm wide opening and a capacity of 6m3, completely designed to support the strains during the unloading of materials. Regulated floodgate for flow of aggregates. - Automatic vibrator system for one bin, which facilitates the flowing of fine aggregates with high humidity ratios in one of the bins. - Feeding belts with 20" wide canvas supported by 4" rollers in "V" with permanent lubrication. The gear box is hooked directly to the drum shaft. Drums are regulated with oscillating and shielded bearings. 3-hp electric motor. - Conveyor belt in U-Beam, 24 wide canvas supported by 4 rollers in V shielded rollers actuated by a 7.5hp electric motor. - Sieve with a screen for eliminating oversized materials. - Drum dryer and mixer with heat insulation, four driven supports rollers made of high carbon steel driven by gear box, electric motor 15hp. - rotational external mixer - burner with fuel spraying by gear pump 18.000.000 Kcal/h - Dry filtering system that consists of dust collecting system - Control system Sistex complete offer and details by request * more machines, mixing plants and trucks on our website www.bss.netShow more

BSS heavy machinery GmbH

Magistrale 9-11 16244 Finowfurt bei Berlin Brandenburg Germany
