INFO

Category
Backhoe Loaders
Brand / model

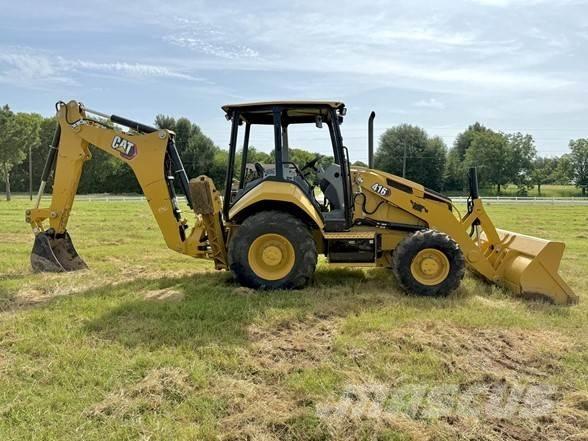

CAT 416
Year
2021
Hours
905 h
Location
Trinidad, Texas
Country
United States
Mascus ID
2BC0E6F7

PRICING

Select Currency

DETAILS

Serial number
CAT00416CH8P00322
Traction
4 WD
Gross weight
24,251 lbs
Engine power
96 hp (70.6 kW)
Additional information
Description: Machine Highlights Year: 2021 Make: Caterpillar Model: 416 4WD Smooth Bucket Loader Standard Stick Backhoe Hours: 905 SN: CAT00416CH8P00322 Engine Displacement: 220 in³ Net power rating at 2,200 rpm: 86hp Ratings at 2,200 rpm - Gross power: 96hp Power rating conditions - No De-rating required up to: 10,000ft Engine Model: C3.6 70 kW (96 hp) Electronic Turbo Intercooled Emissions: Engine meets Tier 4 Final/Stage V emission standards. Dimensions - Bore: 3.86in Net Peak Power Rating ... 2,200rpm - ISO 9249: 85hp Dimensions - Stroke: 4.72in Backhoe Dig Depth - Standard: 14ft Weights Operating weights: 16532lb Auto-shift transmission: 269lb Hydraulic System Pump type: Variable-flow, Axial Piston Type: Closed Center System Pressure - Loader: 336psi System Pressure - Backhoe: 3336psi Pump Capacity at 2,200rpm: 34.9gal/min Axle Ratings Rear Axle - Dynamic: 22046lb Rear Axle - Static: 58422lb Front Axle, AWD - Dynamic: 19841lb Front Axle, AWD - Static: 51808lb Steering Turning Circle - (inner wheel not braked) - Outside Front Wheels: 26.92ft Power Steering: Hydrostatic Stroke: 4.2in Bore: 2.6in Turning Circle - (inner wheel not braked) - Outside widest loader bucket: 35.25ft Type: Front Wheel Steering Axle Oscillation: 11° Road Diameter: 1.6in Cylinder: One Double Acting Service Refill Capacities Hydraulic System: 25.1gal Engine Oil - With Filter: 2.4gal Hydraulic tank: 11.1gal Diesel Exhaust Fluid: 5gal Cooling System with Air Conditioner: 4.8gal Rear Axle: 4.2gal Fuel Tank: 42.3gal Rear Axle - Planetaries: 0.4gal Transmissions - Power Shuttle - AWD: 4.8gal Transmission - Power Shift - AWD: 5gal Front Axle (AWD): 2.9gal Front Axle (AWD) - Planetaries: 0.2gal 2021 CATERPILLAR 416 OROPS 4WD BACKHOE WITH A SMOOTH BUCKET, AND STANDARD STICK BACKHOE! SE HABLA ESPAÑOL! FINANCING AVAILABLE PLEASE CALL US WITH ANY QUESTIONS! ASK ABOUT OUR REASONABLE SHIPPING RATES! Digdepth: 168.000000000000 Ropstype: Open Thumb: 0

Providence Equipment

4435 State Highway 274 75163 Trinidad Texas United States
