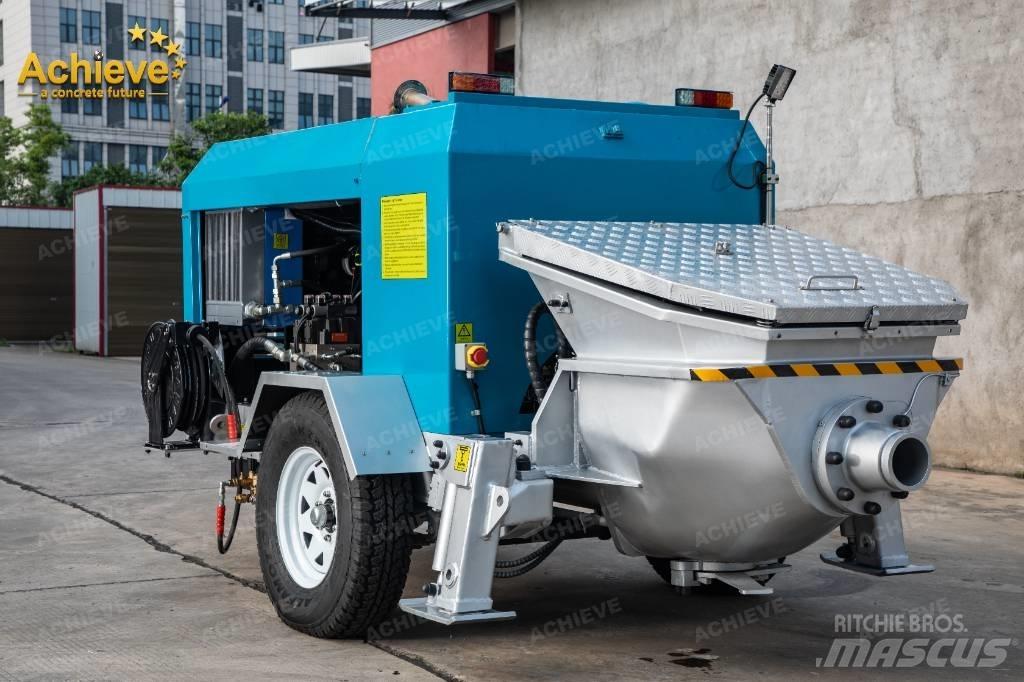

ACHIEVE AP300-TD
Price excl. VAT
Print
INFO
Category
Concrete Pumps
Brand / model
ACHIEVE AP300-TD
Year
2024
Condition
New/unused
Country
China
General grade
1
2
3
4
5
Mascus ID
49885CF8
PRICING
Select Currency
DETAILS
Serial number
Concrete trailer pump truck parameters
Date of latest inspection
2024-09-26
Gross weight
5,732 lbs
Movement type
Mobile
Pump power type
Diesel
Pump power
50 kW
Transport dimensions (LxWxH)
1811.02 x 700.79 x 677.17 inches
Engine manufacturer
Deutz, Köln-deutz
Pump type
Piston
Production country
China
Delivery terms
FOB, CIF
Certificates
EPA, CE, TÜV
Attachments
Theoretical maximumthroughput
5-25 m³/h
5-30 m³/h
45m³/h
Maximum conveying pressure
80bar
70bar
80bar
Specification of conveying cylinder
160 ㎜
150㎜
180mm
Work schedule
800mm
1000㎜
1000mm
Maximum stroke per minute
27
30
30
Engine brand
Deutz, Köln-deutz
Deutz, Köln-deutz
DEUTZ (imported from Germany)/Dalian diesel engine in China
Engine type
TD2.9-L4 (EKZ11501) 2200r/min
TD2.9-L4(EKZ11505) 2200r/min
TCD3.6L04/BF4M2012-09T3R
Power
50KW
55KW (3.7562 Horsepower)
74.4Kw/72Kw
Discharge
US EPA Tier 4
US EPA Tier 4
Euro 5/Country 3
Fuel tank volume
65L
98L
98L
Volume of hydraulic tank
200L
200L
200L
Hopper structure
S valve
S valve
S valve
Hopper height
960㎜
960㎜
1250mm
Hopper capacity
260L
260L
300L
Outlet diameter
125 ㎜
125㎜
125mm
Maximum aggregate size
≤30㎜
≤30㎜
≤40mm
Trailer
Single Shaft、electric controller
Single Shaft、electric controller
Single Shaft、electric controller
Weight
2300Kg
2600㎏
2600㎏
External
Additional information
Achieve Innovations
5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 China
