Putzmeister 56 M
Price excl. VAT
25
5
Favorite
Share
Save searchPrint
INFO
Category
Concrete Pumps
Brand / model
Putzmeister 56 M
Year
2015
Hours
2,950 h
Condition
Reconditioned,Remanufactured
Country
China
General grade
1
2
3
4
5
Mascus ID
C6676564
PRICING
Select Currency
DETAILS
Customer asset number
AICPT045
Gross weight
94,777 lbs
Movement type
Mobile
Pump power type
Diesel
Pump power
300 kW
Transport dimensions (LxWxH)
1419025003.98 m
Emission level
Stage IV / Tier IV final
Engine manufacturer
Mercedes Benz OM501LA.IV/3
Pump type
Piston
Chassis Manufacturer
Mercedes Benz
Production country
China
Delivery terms
FOB, CIF
Certificates
EPA, CE, TÜV
Additional information

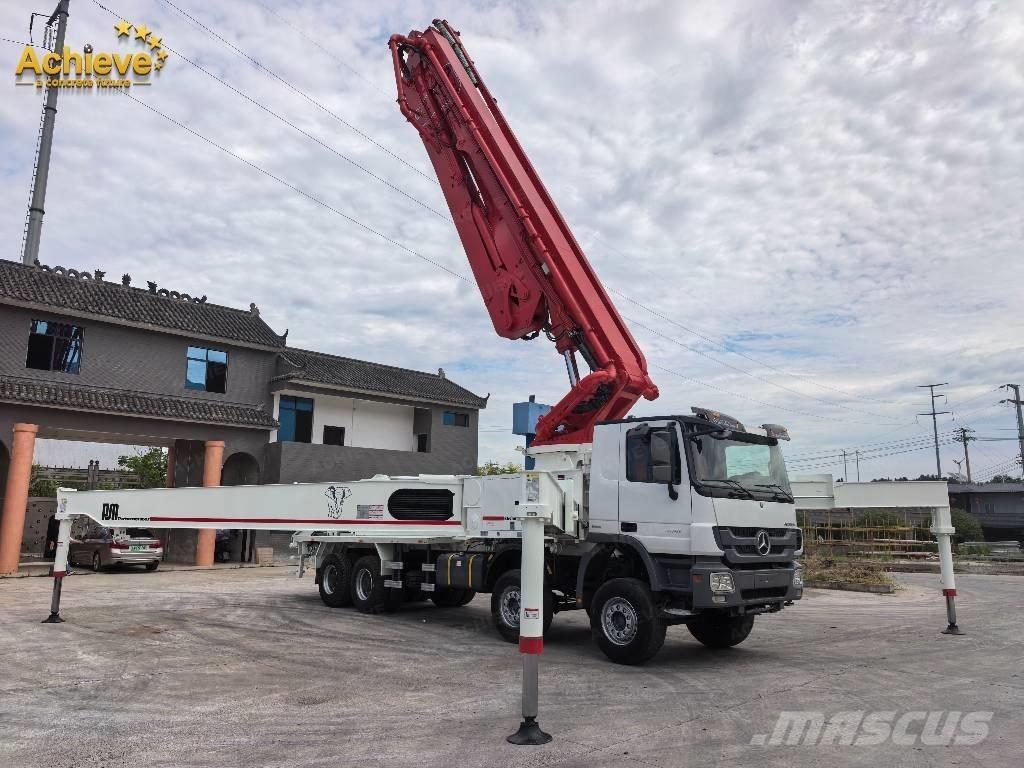

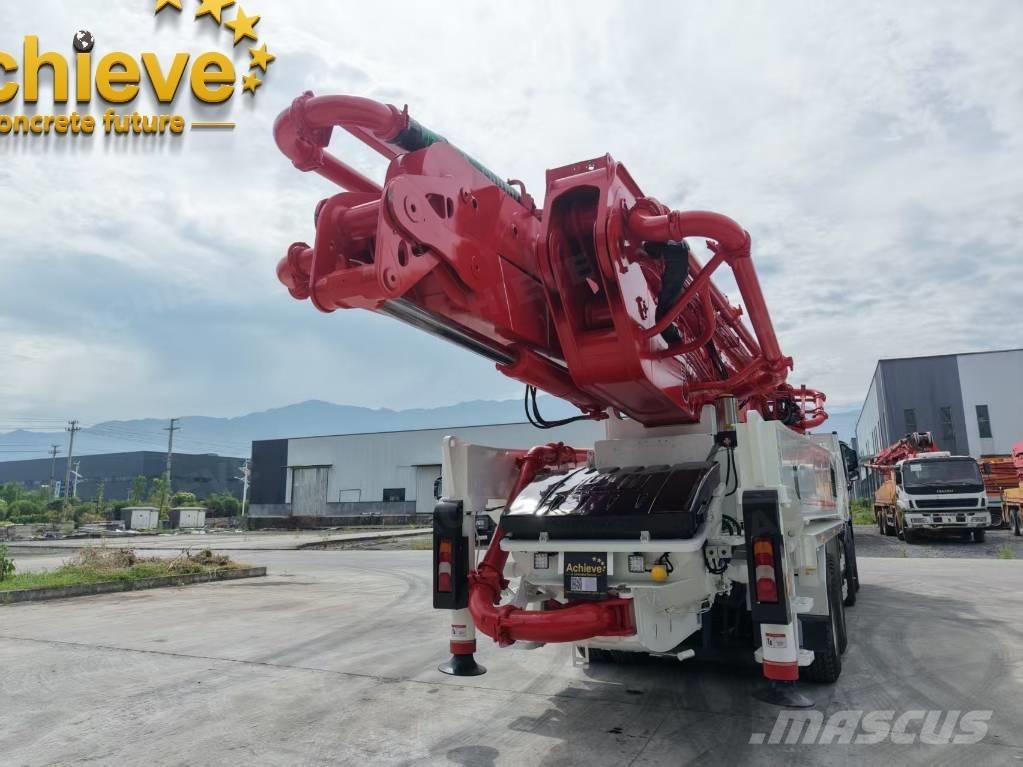

【ACHIEVE】TOP CONDITION!!! Top Quality Refurbished Putzmeister M56-5 Concrete Pump Truck, Mercedes-Benz 4141 8X4 ERUO III, Ready for Sale!!!
Putzmeister M56-4RZ Mercedes-Benz Actros 4141 8x4
Year: 2012.
Milage: 75000 km.
Manual gearbox 8 gears.
Max weight: 43000 kg.
Arms: 5
Folding Type: RZ-Folding
Vertical Reach: 55.1 m
Horizontal Reach gross: 49.9 m
Horizontal Reach net: 45.6 m
Reach Depth: 40.3 m
Unfolding Height: 15.6 m
Slewing Range: 365 degree
End Hose - Length: 3 m
Delivery Line (DN, Pressure) : DN125/5.5 / 85 mm/bar
Support width Standard (front-rear): 9.0 / 12.4 m
Support width OSS (front-rear): 5.9 / 8.1 m
Support width ESC (front-rear): 5.9 / 7.5 m
Length x Width x Height: 14.1 x 2.5 x 4 mm
Delivery Cylinder Diameter - Stroke Length250/2100 mm
Output (piston side):160 m³/hr
Delivery Pressure (piston side): 85 bar
Strokes (piston side): 26
Engine brake.
Wheelbase:
Euro
Achieve Innovations
5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 China
