Putzmeister M38-4

Price excl. VAT

Images8Videos1

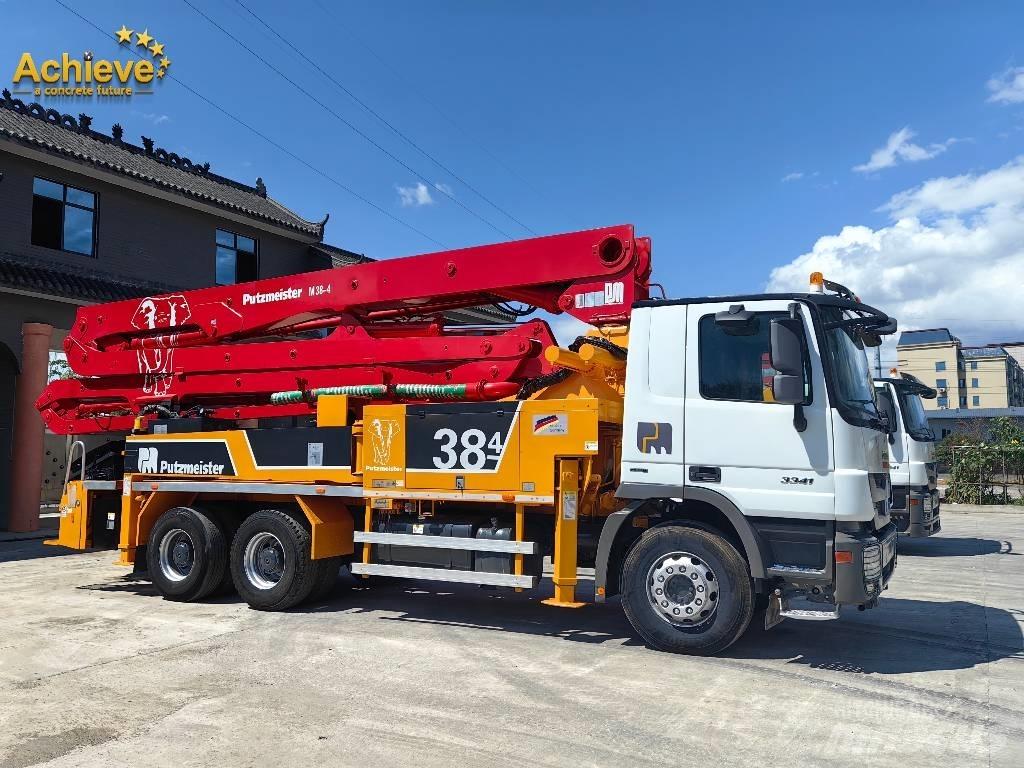

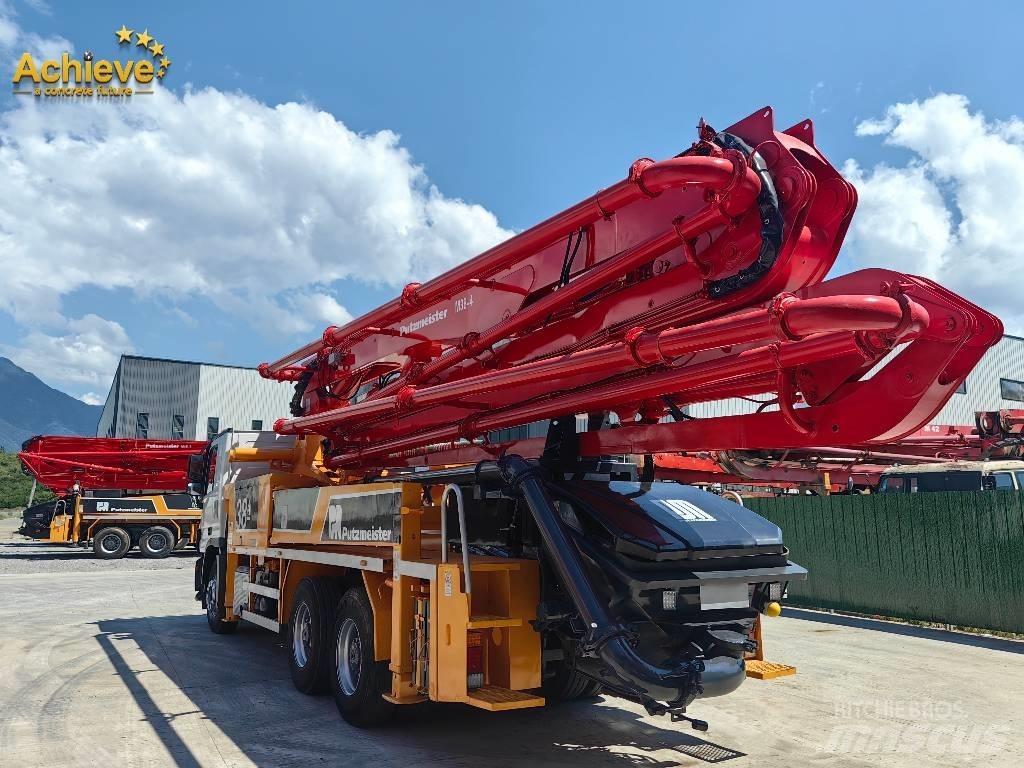

Putzmeister M38-4 Concrete Pumps
Putzmeister M38-4 Concrete Pumps
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Category
Concrete Pumps
Brand / model
Putzmeister M38-4
Year
2014
Hours
3,000 h
Condition
Reconditioned,Remanufactured
Country
China
General grade
1
2
3
4
5
Mascus ID
758F2315

PRICING

Select Currency

DETAILS

Customer asset number
AICPT009
Number of boom sections
4
Date of latest inspection
2024-09-26
Full service history
Yes
Gross weight
57,320 lbs
Boom length
9.84 feet
Max horizontal reach
110 feet
Max vertical reach
126 feet
Movement type
Static
Pump power type
Diesel
Pump power
300 kW
Transport dimensions (LxWxH)
452.76 x 98.43 x 153.54 inches
Emission level
Stage V / Tier V
Engine manufacturer
Mercedes Benz OM501LA.III/17
Pump type
Piston
Chassis Manufacturer
Mercedes Benz
Tire brand
Mercedes Benz
Production country
China
Delivery terms
FOB, CIF
Certificates
EPA, CE, TÜV
Attachments
Technical Details General Information Arms 4 Folding Type Z-Folding Vertical Reach 38.30 m Horizontal Reach gross 33.60 m Horizontal Reach net 30.70 m Reach Depth 24 m Unfolding Height 9 m Slewing Range 365 degree End Hose - Length 3 m End hose - Diameter 125 mm Delivery Line (DN, Pressure) 125/85 mm/bar Configuration Concrete Pump .16 H Delivery Cylinder Diameter - Stroke Length 230/2100 mm Output (rod side) 160 m³/hr Delivery Pressure (rod side) 85 bar Strokes (rod side) 31
Additional information
Putzmeister’s M39-4 Truck-Mounted Concrete Boom Pump comes equipped with a newly designed four-section Z boom that can either be permanent or detachable. It’s a jack-of-all-trades that can achieve typical and high-rise pumping applications as well as frost law and special weight considerations. We’ve listened to our user feedback and put it into action. Rather than purchasing three separate pieces of equipment, customers will benefit from the value of a single, customizable machine. Key Features Easy replacement of the radio remote control thanks to radiomatic(R) iLOG Technology Lithium ion battery for a working time of up to 17 hours Putzmeister concrete pump technology is designed to withstand extreme conditions as it performs in high- pressure and long-distance pumping applicationsShow more
