Putzmeister M42-4

Price excl. VAT

Images24Videos1

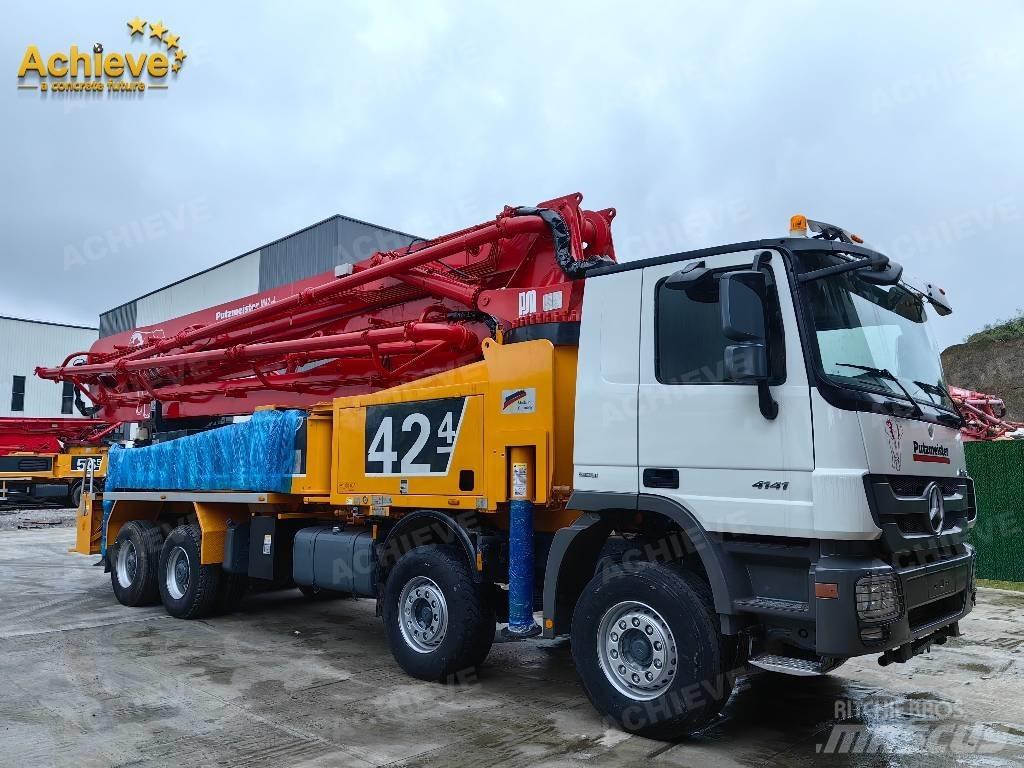

Putzmeister M42-4 Concrete Pumps
Putzmeister M42-4 Concrete Pumps
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Category
Concrete Pumps
Brand / model
Putzmeister M42-4
Year
2014
Hours
3,000 h
Condition
Reconditioned,Remanufactured
Country
China
General grade
1
2
3
4
5
Mascus ID
C8CCEE59

PRICING

Select Currency

DETAILS

Customer asset number
AICPT010
Number of boom sections
5
Date of latest inspection
2024-09-26
Gross weight
57,320 lbs
Boom length
13.1 feet
Max horizontal reach
122 feet
Max vertical reach
136 feet
Movement type
Static
Pump power type
Diesel
Pump power
300 kW
Transport dimensions (LxWxH)
452.76 x 98.43 x 165.35 inches
Emission level
Stage V / Tier V
Engine manufacturer
Ergonic3. EU Version
Pump type
Piston
Chassis Manufacturer
Mercedes Benz
Tire brand
Mercedes Benz
Production country
China
Delivery terms
FOB, CIF
Certificates
EPA, CE, TÜV
Attachments
Technical Details General Information Arms 5 Folding Type RZ-Folding Vertical Reach 41.6 m Horizontal Reach gross 37.3 m Horizontal Reach net 34.5 m Reach Depth 31 m Unfolding Height 8.6 m Slewing Range 365 degree End Hose - Length 4 m Delivery Line (DN, Pressure) DN125/5.5 / 85 mm/bar Support width Standard (front-rear) 7.5 / 8.3 m Support width OSS (front-rear) 5.0 / 6.4 m Support width iSC (front/rear) 2.6-7.5 Length x Width x Height 11.35 x 2.5 x 4 mm Total Weight (approx.) under 32000 kg Configuration Concrete Pump .17 iLS Concrete Pump .16 H LS Concrete Pump .16 H Delivery Cylinder Diameter - Stroke Length 250/2100 mm Output (piston side) 170 m³/hr Delivery Pressure (piston side) 85 bar Strokes (piston side) 27
Additional information
The Putzmeister M42-5 truck-mounted concrete pump has improved maneuverability and weight indices for 4 axle chassis. In Europe the M42-5 is equipped with iSC full flexible support and Ergonic 3 control. For countries outside of Europe it is equipped with the OSS support system, which allows you to work in a limited workspace. The concrete pump length is less than 12 meters, and it weighs less than 32 tons. Key Features A gross weight of less than 32 t includes sufficient reserves for payload and operating materials Smooth 5-arm placing boom, thanks to intelligent laying of the delivery line and the balanced development of the steel structure Efficient work through consistently clever ergonomic design Even better safety through closer consideration for current standards and guidelines Service-friendly as a result of its optimised accessibility and consistent bolted concept Lower service costs thanks to maintenance-free components, fewer special components (only 3 standard deliShow more
