4200 Amp Transformer & VFD Bank
Title: 4200 Amp Transformer & VFD Bank
SKU: 137884
Year: 2019
Condition: Surplus New
GeneralOil vs Dry:147
Rated Input: 600VAC, 4000A, 3f
Max short circuit amps: 65kAIC
DC bus rating: 835VDC, 5000A
DC link rating: 2500A
Braking capacity peak: 1600A x 2 ... DUTY CYCLE
VFD Rating: 0-600VAC, 3f 7 x 600HP
Max. ambient temp: 40deg C
Cooling method: FORCED AIR Majority of components manufactured in 2019.
All cabinets can be connected together for one large multi-purpose bank.

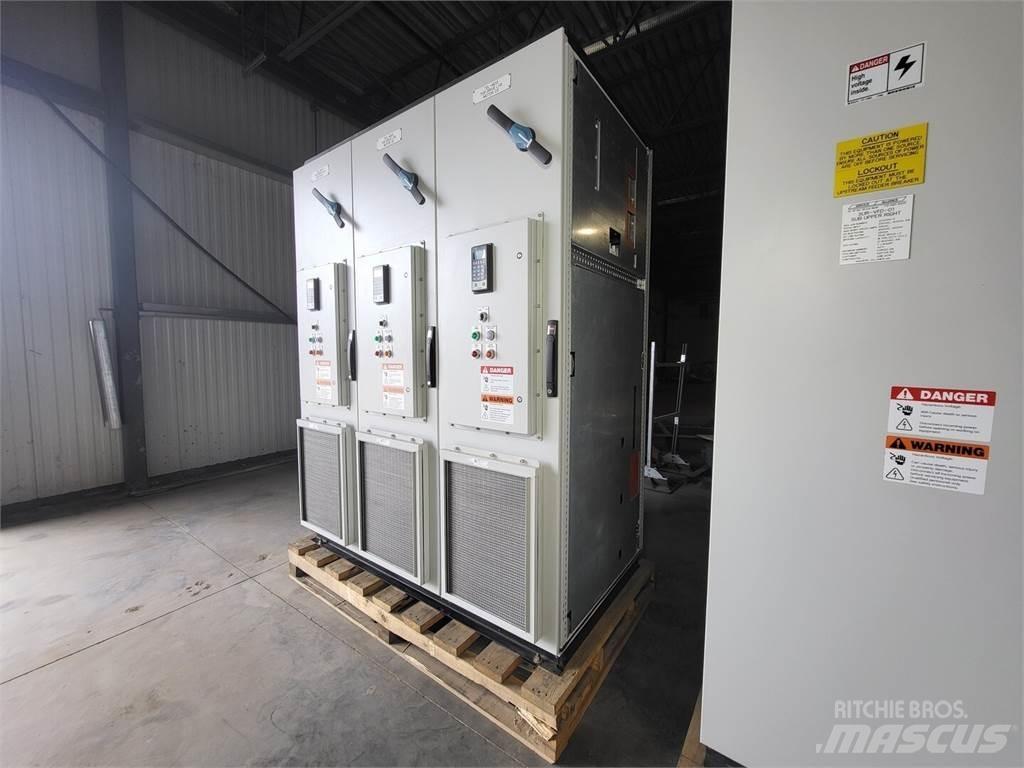

2- AB VFD Cabinets X 7 + 2X EMPTY SPARE Cabinets

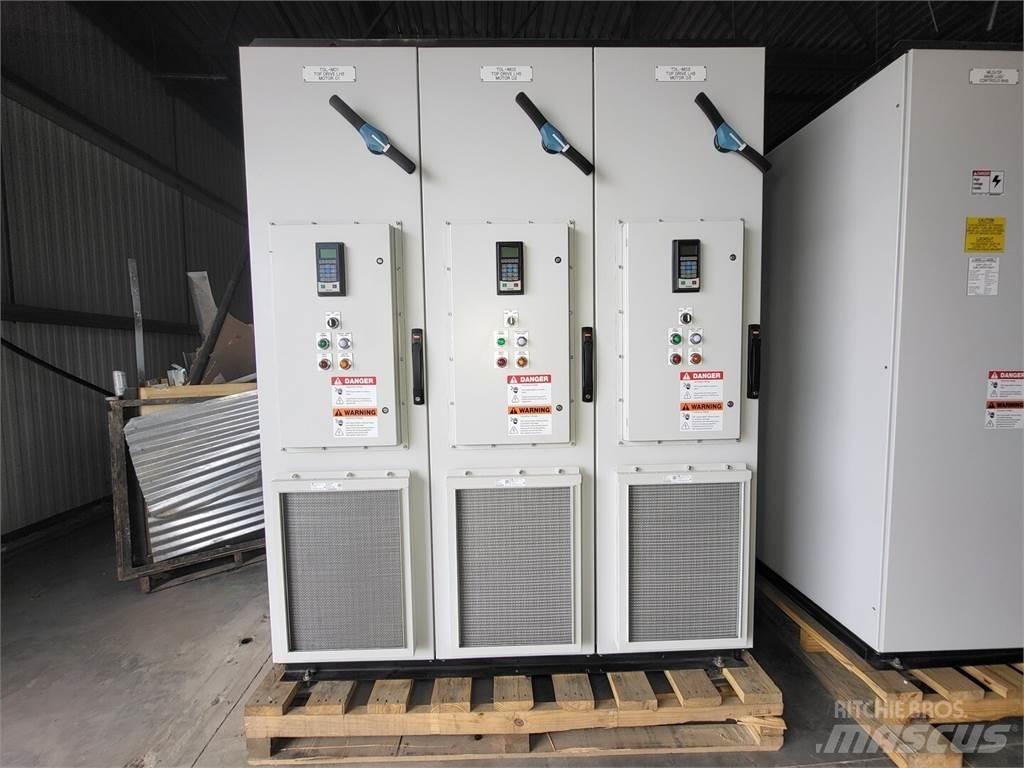

Each cabinet is comprised of two open type AB Powerflex 750 20-750-M12-E395F370 drives controlled by a PowerFlex 755T 20-760-MCPOD1-F8M Drive Board.

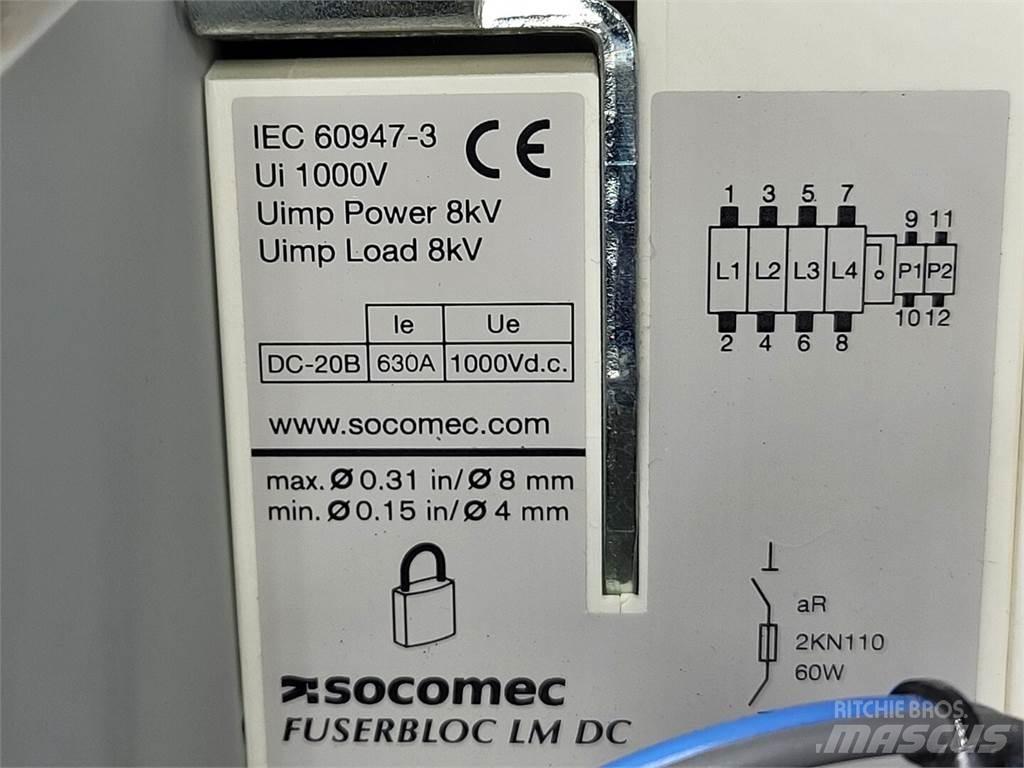

The cabinet utilizes a SOCOMEC Fuserbloc externally controlled fused switch/ disconnect.

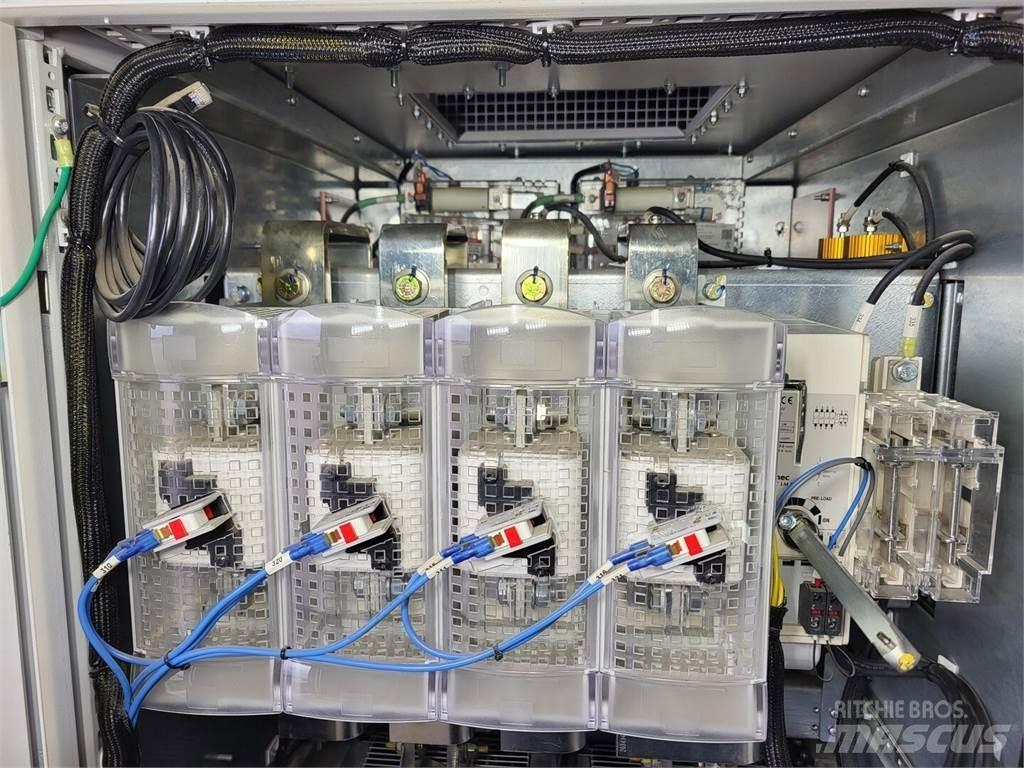

Each cabinet has approximately 250 lbs of tinned busbar connecting the VFDs to the overall bank.
Each cabinet also features the following AB accessories;
2 x Allen-Bradley 20-750-MDCBUS-COND DC Bus Conditioners
2 x Allen-Bradley 20-750-MREC1-F8M Stab Receptacles
3-Transformer/ Inductor Cabinets
APS Rectifier
Magnetics Design 4000 AMP 3PH 60 Hz 600 Volts Dry Type Inductor
2 x Eaton 6702ED587-4 Definite Purpose DC 750V DC 3000A 3NO/1NC - Contactors
PLC Panel (as pictured)
2 x Bonitron M3452 1600 Amp Braking Transistors, Model # M3452-L1600CT10-R7E
Components:
A) (2 UNITS)-PLC panel w/ AB Array and Additional Components (intact) 1 x Allen-Bradley
(AB) Stratix 5400 Ethernet Switch- 1783-HMS4C4CGN 1 x AB ControlLogix Power Supply 1756-PBT2 w/ Logix5582ES and Ethernet/IP Modules AB Compact 5000 I/O PLC Rack w/ the following modules: - 1 x 5069-IF8 - 9X 5069-IB16 - 2 x 5069-OW16 - 1 x 5069-1B8S - 1 x 5069-OBV8S - 1 x AB MSR127TP Guardmaster Module - 3 x Phoenix Contact Quint Power Units
B) (2 UNITS) AB Switchgear - AB Centreline 2100 Switchgear (breakers and motor starters, all wiring intact) Full AB Centreline 2100 Switchgear (breakers and motor starters, all wiring intact) Diagrams pictured in google photo album. 13 x Racks with AB 500F-BO*930 Motor Starter Contactors w/ 592-EEDC Solid State Overload/Relays and 140MG-H8P-C30 or C50 (or similar) 125/ 150A Breakers 5 x Racks w/ Breakers only. 1 x 208Y/ 120V 100A Panel - 1 x AB 140G-J15C3-C30 Main Breaker 1 x AB 600V 25kVA Type J Dry Type Transformer HV 600 LV 208Y/120
C) (8 UNITS) AB VFD Drives - VFD units. Each cabinet is comprised of two open type AB Powerflex 750 20-750-M12-E395F370 drives controlled by a PowerFlex 755T 20-760-MCPOD1-F8M Drive Board. The cabinet utilizes a SOCOMEC Fuserbloc externally controlled fused switch/ disconnect. Overall capability: RATED INPUT- 600VAC, 4000A, 3f MAX SHORT CIRCUIT AMPS- 65kAIC DC BUS RATING 835VDC, 5000A DC LINK RATING 2500A BRAKING CAPACITY PEAK 1600A x 2 ... DUTY CYCLE VFD RATING 0-600VAC, 3f 7 x 600HP MAXIMUM AMBIENT 40 deg C COOLING METHOD- FORCED AIR CONSTRUCTED- JUNE 2019 Majority of components manufactured in 2019.
D) (2 UNITS) Transformer/ Inductor Magnetics Design 4000 AMP 3PH 60 Hz 600 Volts Dry Type
E) (4 UNITS) Bonitron Braking Resistors 2 x Bonitron M3452 1600 Amp Braking Transistors, Model # M3452-L1600CT10-R7E
F) (2 UNITS) External Dynamic Braking Resistors 2 x Post Glover Dynamic Braking Resistors DB0916 1100 Volts 492 KW Made 05/19
G) (4 UNITS) Drive Boards (pair 2 vfd's together) - Units require additional parts to fully connect the bank together, i.e. busbar connections, fiber optic cabling, hard wiring, fasteners, etc. Unit should have preventative maintenance performed before being put into service. Capacitor reforming for each individual VFD unit should be done. This work should be completed by a certified tech.
Capacitor needs to be redoneShow more
