TOPPER TMV-1050A

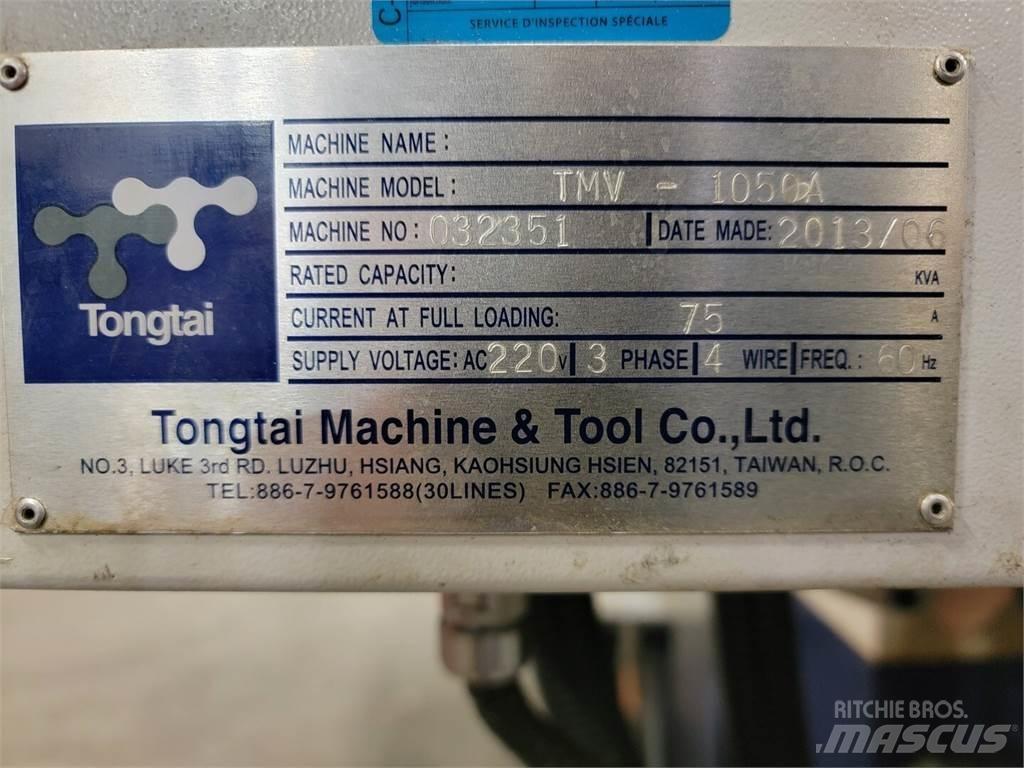

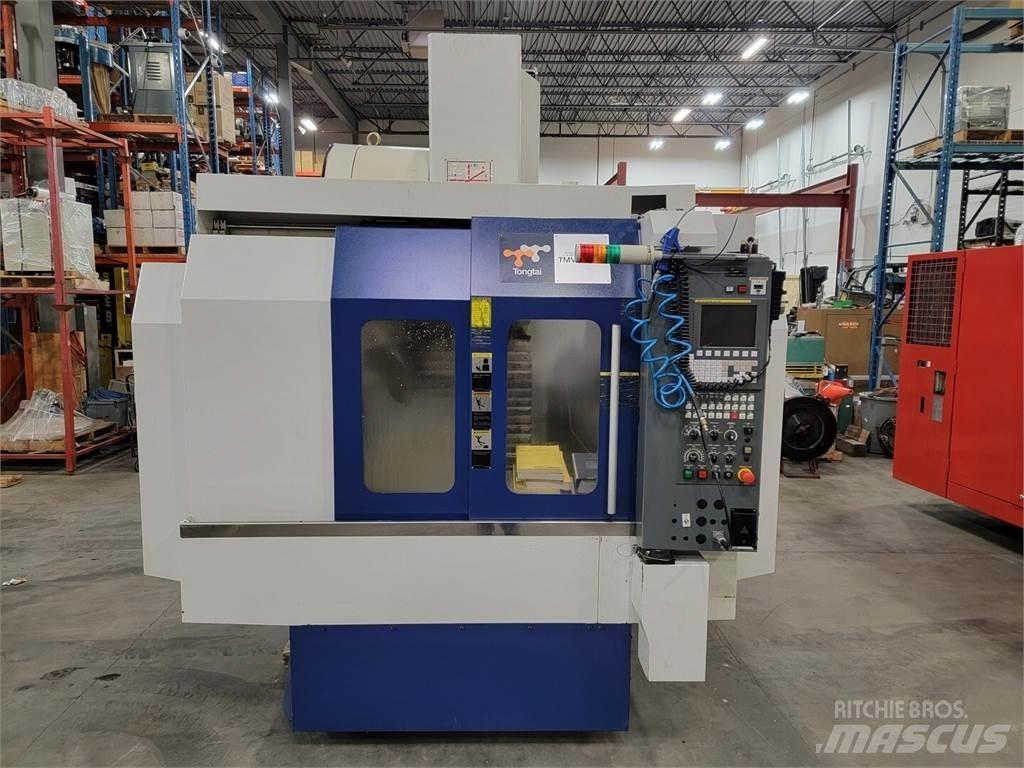

CNC Vertical Machining Centre TMV-1050A Title: CNC Vertical Machining Centre TMV-1050A SKU: 117428 Model: TMV-1050A Year: 2013 Condition: Used S/N: 032351 GeneralSpindle Taper:BT40 Cross Travel (Table):19.68" Table Size:1100 x 500 mm (42.8" x 19.4") Speed:60 - 8000 rpm CNC:Yes ElectricalVoltage:220volts Phase:3-phase Amps:75amps Made In: TAIWAN Dimensions: 112.00 (H) x 93.00 (W) x 125.00 (L) inches [PDF BROCHURE](... Travel (X): 1050 mm (41.3") Vertical Travel (Z): 530 mm (20.87") Distance Between Spindle Nose to Table: Max. 630 mm (24.8") / Min. 100 mm (4") Max. Table Load: 500 kg (1100 lbs) Rapid Traverse (X/Y/Z): X,Y = 30 m/min, Z = 24 m/min Servo Motor: X,Y = 3 kW, Z = 4 kW Tool Quantity: 24 Max. Tool Diameter: 88 mm (3.5") Max. Tool Length: 250 mm (9.84") Max. Tool Weight: 7 kg Tool Holder: BT40 Control: FANUC Series 0i-MD Machine Precision: - Position: 0.01 mm/Full Travel - Repeatability: +/- 0.005 mm Floor Space: 2000 mm x 2870 mm Additional: Comes with instruction manuals
