HY-LOK 6DK

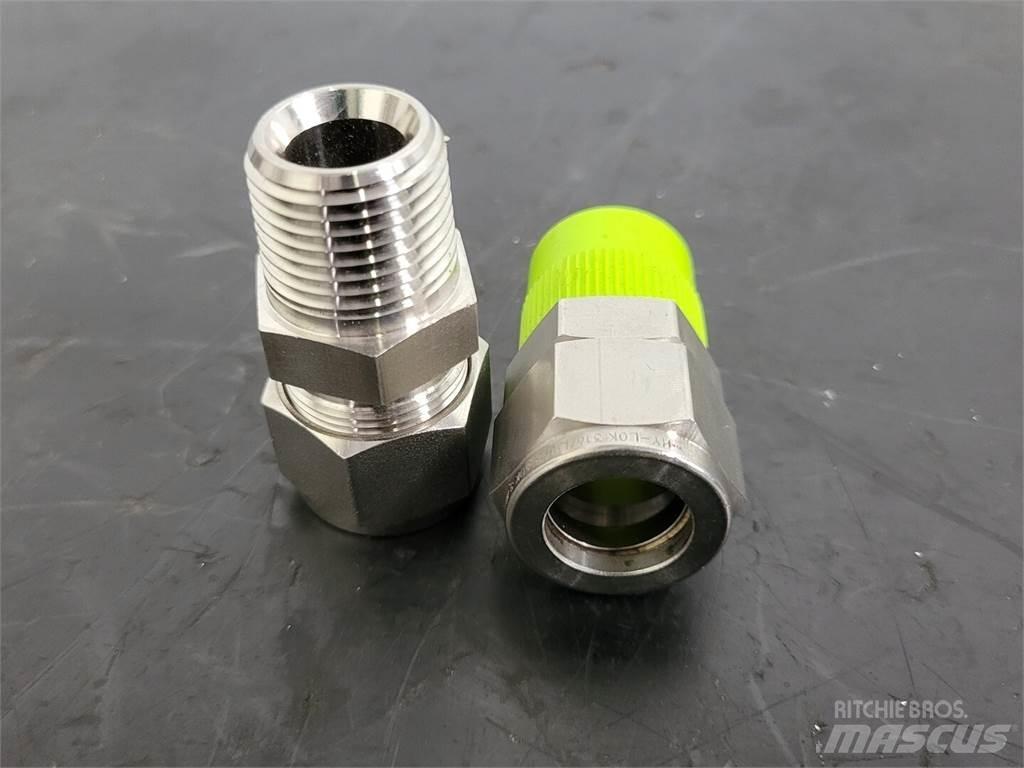

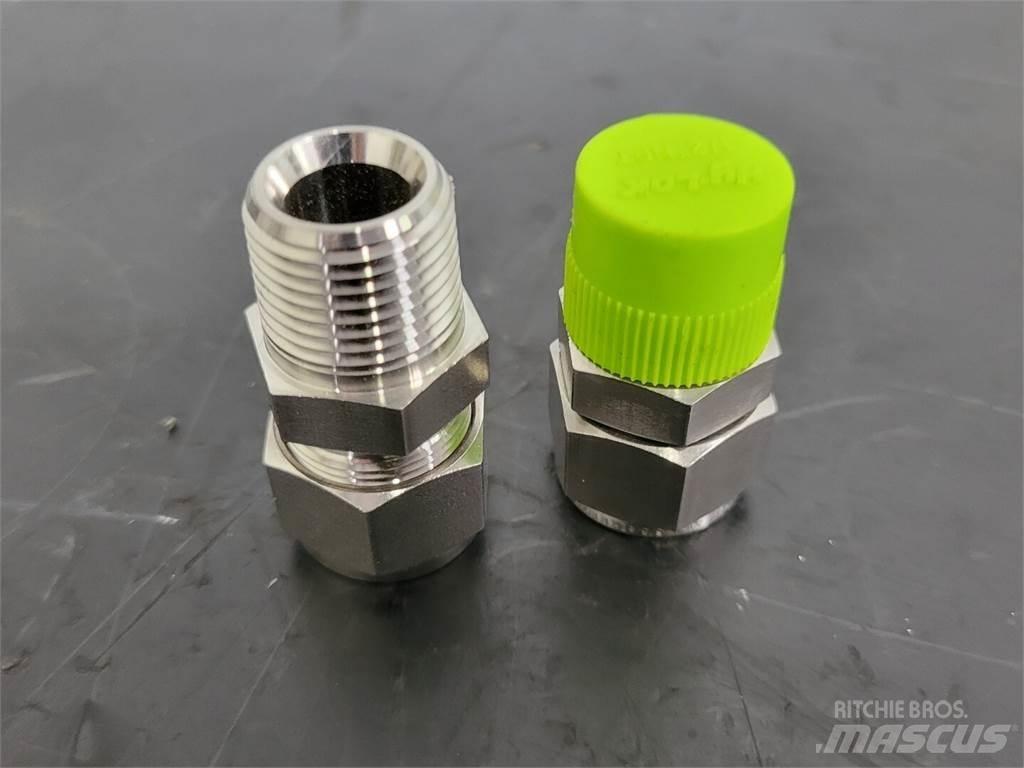

5/8in, x 1/2in, Connector, 6DK Title: 5/8in, x 1/2in, Connector, 6DK SKU: 26170 Model: 6DK Condition: New Dimensions: 1.00 (H) x 1.00 (W) x 2.00 (L) inches Item: Male Connector Fitting Side A Connection Type: Compression Fitting Material: Stainless Steel Material Grade: 316 Maximum Operating Temperature: 1,200 Degrees F Specific Fitting Shape: Connector Compatible Fitting Brands: LET-LOK(R), SWAGELOK System of Measurement: Imperial Hex Size15/16" Resistance Properties: Corrosion-ResistantApplicationAir, Chemicals, Water Fitting Side B Connection Type: MNPT Fitting Side A Tube Outer Diameter: 5/8 in Maximum Operating Pressure: 7,700 psi Overall Length: 1 15/16 in Fitting Side B Pipe Size: 1/2 in Thread Size B: 7/8-20 Standards: SAE, ASTMA, ASME, MIL-F-18866, CE Minimum Operating Temperature: 425 Degrees F
