New Power ND6
Price excl. VAT
On Request
8
Favorite
Share
Save searchPrint
INFO
Category
Crawler dozers
Brand / model

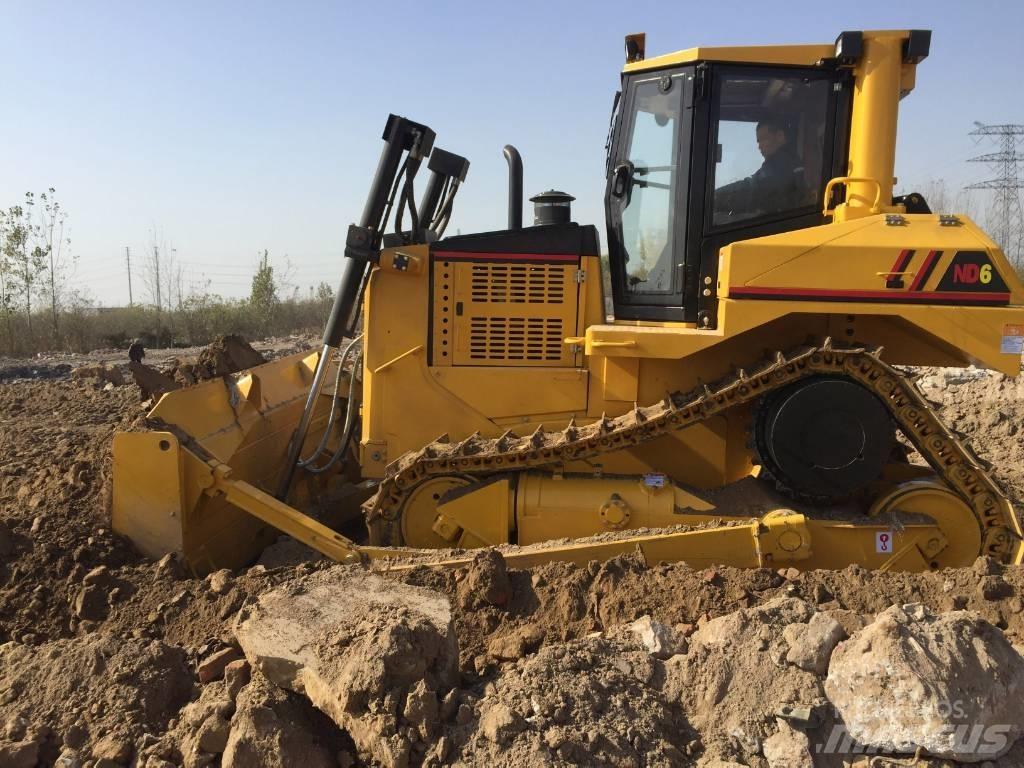

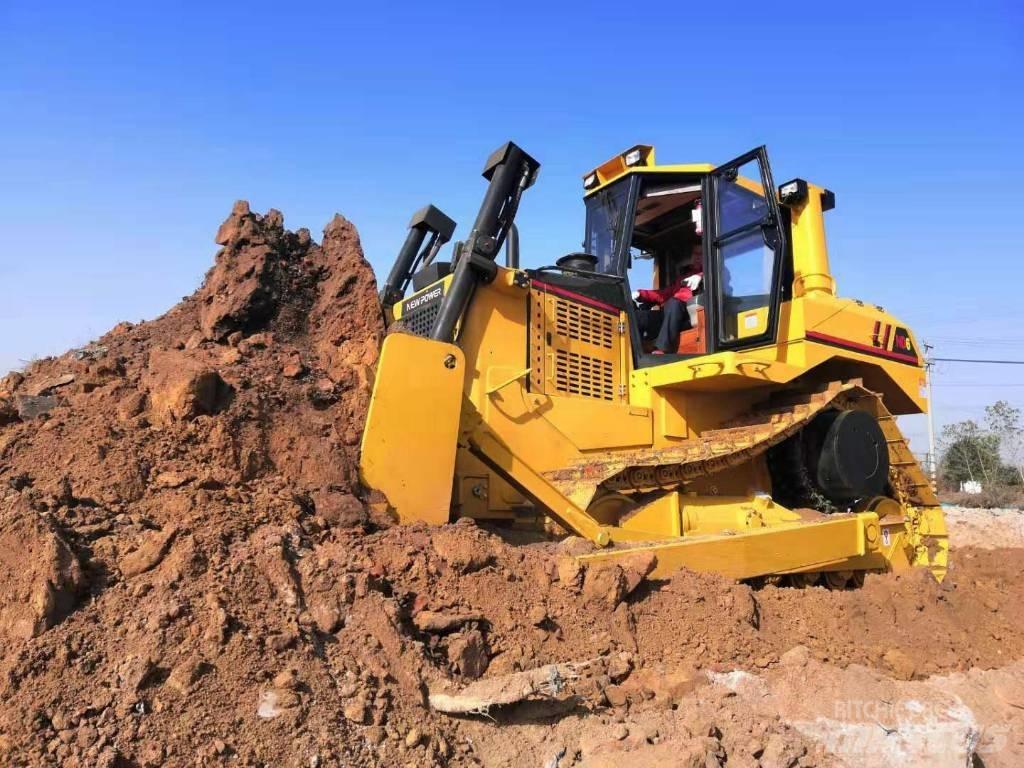

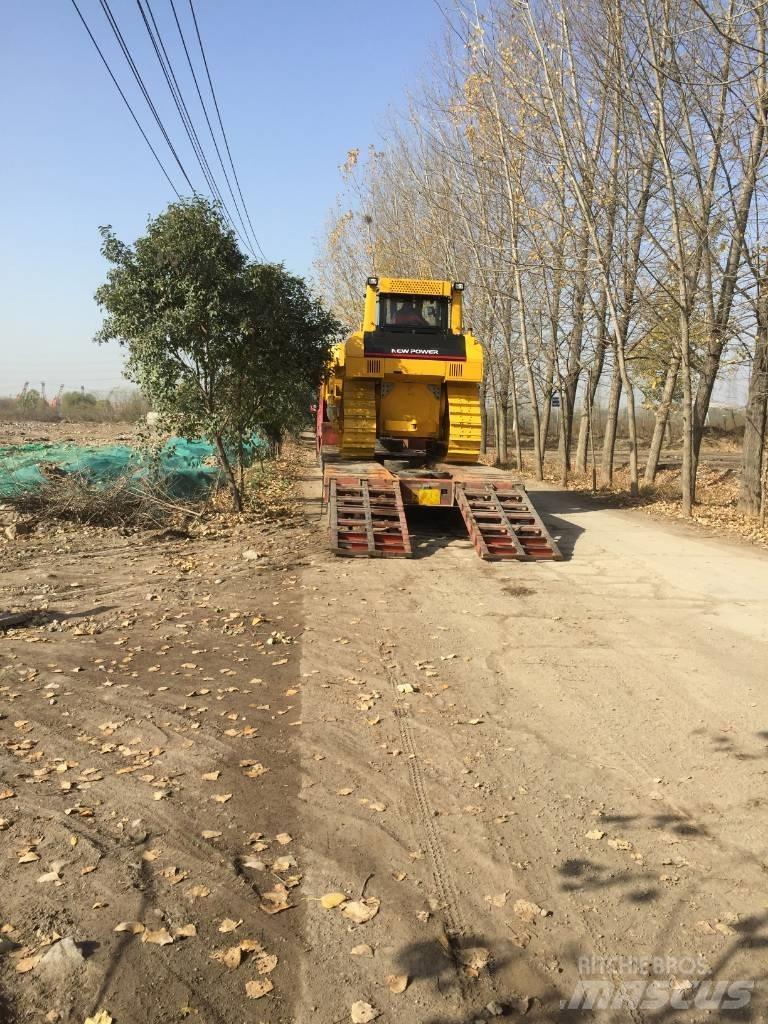

New Power ND6
Year
2019
Hours
5 h
Condition
New/unused
Location
jining
Country
China
General grade
1
2
3
4
5
Mascus ID
59C2CAED
DETAILS
Date of latest inspection
yes
Gross weight
42,990 lbs
Blade type
Straight blade
Undercarriage
Tracked
Cabin type
Enclosed cab
Emission level
Stage II / Tier II
Engine
Shangchai SC9DK190G3
Engine power
200 hp (147 kW)
Track width
22.1 inches
Transport dimensions (LxWxH)
164370.17 x 96063.04 x 133858.34 inches
Original color
Yellow
Condition Info/Guarantee
yes
Production country
China
Delivery terms
FOB, CFR, CIF, EXW
Attachments
ROPS
Accessories
Air conditioning
Additional hydraulics
Multi shank ripper
Additional information
The most fuel efficient dozer
Hydrostatic travel drive with electronic control
Shangchai engine with CATERPILLAR pedigree (optional Cummins) were developed for the most demanding conditions of use. Their low rated speed ensures high operational reliability and a long lifetime.
Model ND6
Engine model SDEC SC9DK190G3
Rated power(kw/rpm) 147/1700 kw/rpm
Displacement(L) 8.8
Max.torque(N.m/rpm) 920/1400
Operating weight(Kg) 19575
Dimension(no ripper)(mm) 4175*2440*3400
Min ground clearance(mm) 390
Ground pressure(MPa) 0.65 kg/cm2
Track shoe width(mm) 560
Track gauge(mm) 1880
Dozing capacity( m³) 5.65
Blade width(mm) 3160
Blade height(mm) 1410
Max drop below ground(mm) 473
Pitch(mm) 203
Quantity of track link 39
Max pressure(MPa) 26MPa
Grade ability(°) 30
Forward(km/h) 4.8/7.8/11
Reverse(km/h) 4.8/7.8/11Materials and specifications are subject to change without notice
Jining Haoduo Import and export co., Ltd.
Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 China
