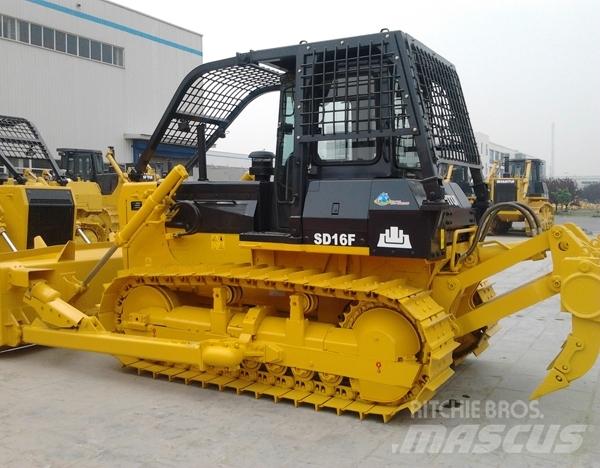

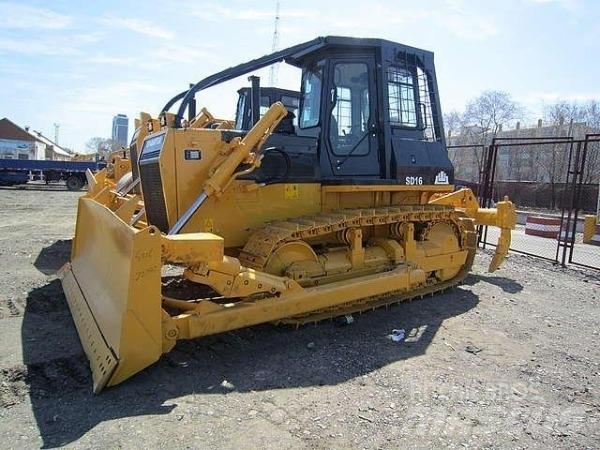

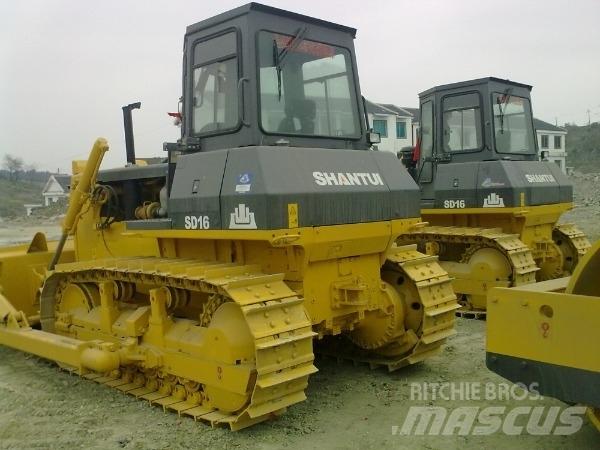

Shantui SD16F
Price excl. VAT
Print
INFO
Category
Crawler dozers
Brand / model
Shantui SD16F
Year
2025
Condition
New/unused
Location
Jining, Shandong, China
Country
China
General grade
1
2
3
4
5
Mascus ID
5E025A7D
PRICING
Select Currency
DETAILS
Customer asset number
SD16F
Date of latest inspection
yes
Full service history
Yes
Working width
11.2 feet
Serial number
SD16F
Gross weight
38,581 lbs
Blade type
Straight blade
Undercarriage
Tracked
Cabin type
Enclosed cab
Emission level
Stage II / Tier II
Engine
SC11CB184G2B1
Engine power
160 hp (118 kW)
Track width
22.1 inches
Transmission
Shantui
Transport dimensions (LxWxH)
210.63 x 133.46 x 119.29 inches
Original color
yellow
Tire brand
Shantui
Condition Info/Guarantee
ISO9001
Front tires / undercarriage remaining
100
Production country
China
Equipped for
propertynames.pp_equippedfor_2100012
Delivery terms
FOB, CFR, CIF, EXW
Certificates
EPA, CE, ANSI
Attachments
three-shank ripper
Accessories
Additional information
L×W×H (Ripper not included) 5345×3388×3032mm
Operating weight (Ripper not included) 17.5t
Engine Shangchai SC11CB184G2B1/
Weichai WD10G178E25
Rated power 120/1850kW/rpm
Gradeability 30°
Blade type Straight tilt blade U blade Angle blade
Blade width Straight tilt blade 3388×1149mm
U blade 3556×1120mm
Angle blade 3970×1040mm
Dozing capacity Straight tilt blade 4.5m3
U blade 5m3
Angle blade 4.3m3
Ma× drop below ground of blade 540mm
Lift height of blade 1095mm
Ripper type Three-shank ripper
Ripping depth of ripper 572mm
Lifting height of ripper 592mm
Number of carriers (each side) 2mm
Number of track rollers (each side) 7
Number of track shoes (each side) 39
Width of track shoe 560mm
Track gauge 1880mm
Ground length and ground pressure 2635-0.062mm/MPa
Pitch 203.2mm
Forward speed 0–3.29km/h
0–5.82km/h
0–9.63km/h
Reverse speed 0–4.28km/h
0–7.59km/h
