CAT 320 C

Price excl. VAT

Images9

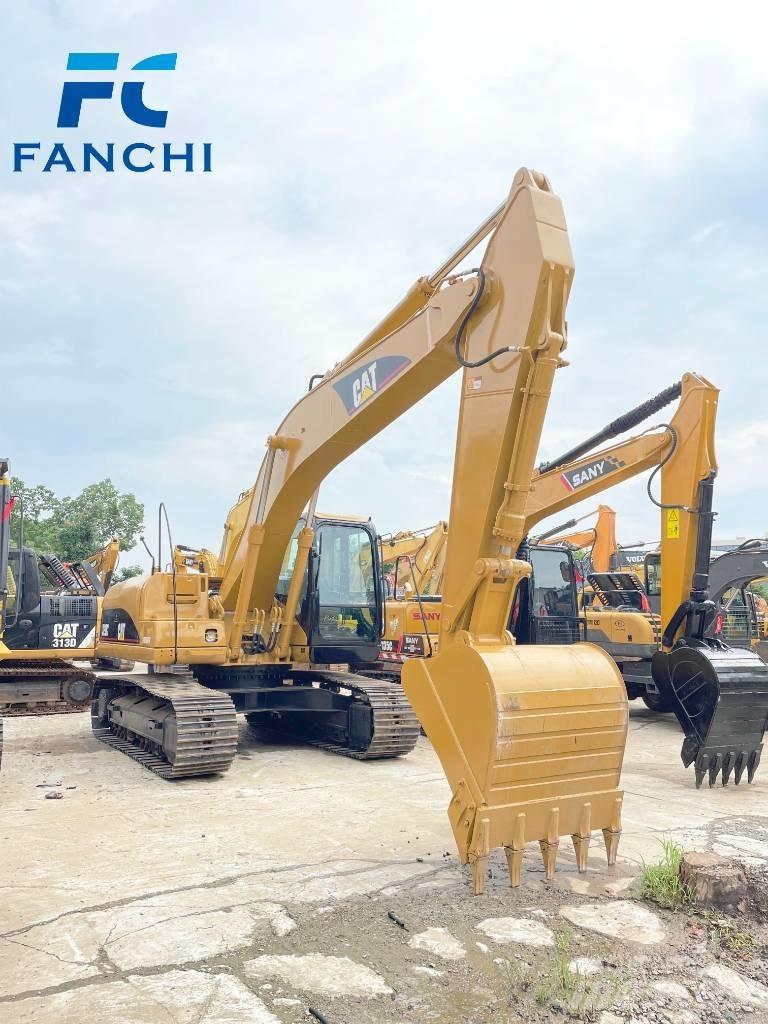

CAT 320 C Crawler Excavators
CAT 320 C Crawler Excavators
CAT 320 C Crawler Excavators
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Category
Crawler Excavators
Brand / model
CAT 320 C
Year
2024
Hours
455 h
Country
China
General grade
1
2
3
4
5
Mascus ID
5230FF4E

PRICING

Select Currency

DETAILS

Amount of previous owners
1
Undercarriage condition
good
Gross weight
44,092 lbs
Engine power
220 hp (162 kW)
Engine manufacturer
JAPAN
Bucket capacity
1.25 m3
Track width
29.5 inches
Top speed
8 km/h
Original color
YELLOW
Dipper / stick length
71.7 inches
Condition Info/Guarantee
good
Production country
Japan
Delivery terms
FOB, EXW
Certificates
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME
Attachments
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Accessories
line rupture valve boom -> safety line rupture valve - boom/hoist
line rupture valve dipper -> safety line rupture valve - dipper/stick
Twig wire box
Skeleton bucket
Show more
Additional information
The Caterpillar Cat320C is a classic medium-sized crawler excavator. Here are some of its common parameter details: General Specifications - Operating weight of the whole machine: Approximately 20,000 kg - Standard bucket capacity: 0.9 - 1.25 m³ Engine - Model: Cat C6.4 - Rated power: Approximately 121 kW (162 hp) / 2000 rpm - Fuel tank capacity: Approximately 454 L - Coolant capacity: Approximately 40 L - Engine oil capacity: Approximately 30 L Performance Parameters - Maximum digging radius: Approximately 9.9 m - Maximum digging depth: Approximately 6.6 m - Maximum unloading height: Approximately 6.7 m - Gradeability: 70% (35°) Travel System - Track shoe width: 600 mm or 750 mm - Gauge: Approximately 2.5 m - Ground pressure: Approximately 45 - 50 kPa Hydraulic System - Main pump type: Variable displacement axial piston pump - System pressure: Approximately 32.4 MPa - Pilot system pressure: Approximately 3.9 MPa - Swing hydraulic motor: Axial piston motor - Travel hydraulic motor: Axial piston motor Cab - Complies with ROPS/FOPS standards: Provides safety protection for the operator. - Equipped with an air conditioning system: Creates a comfortable working environment for the operator.Show more
