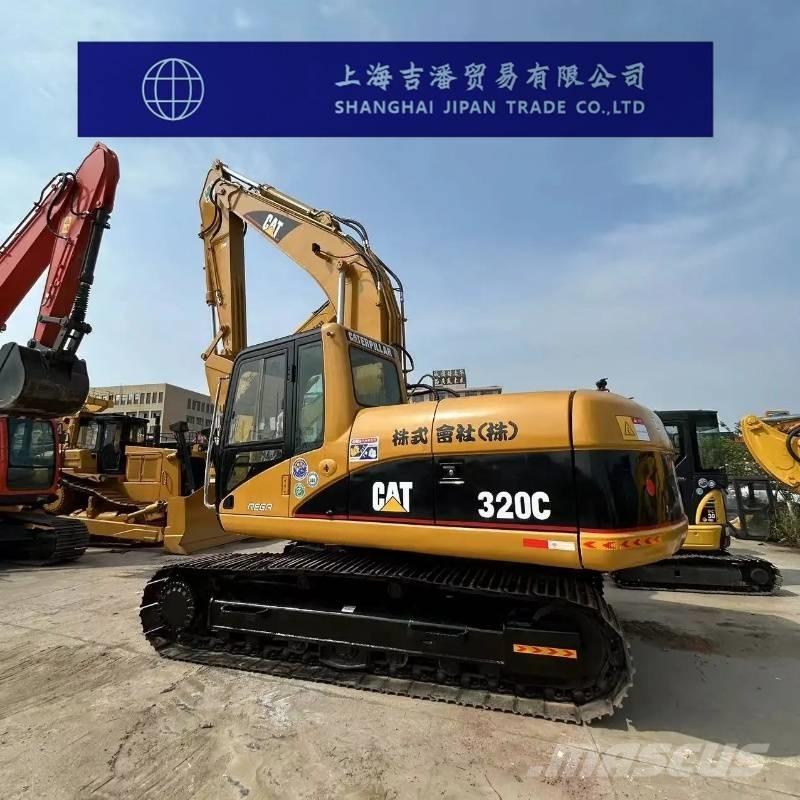

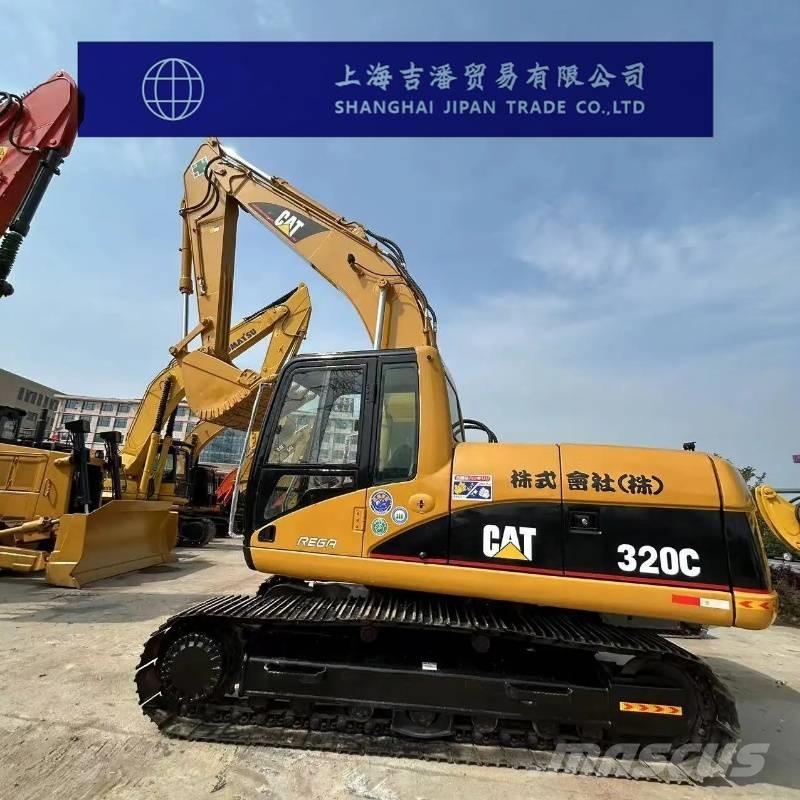

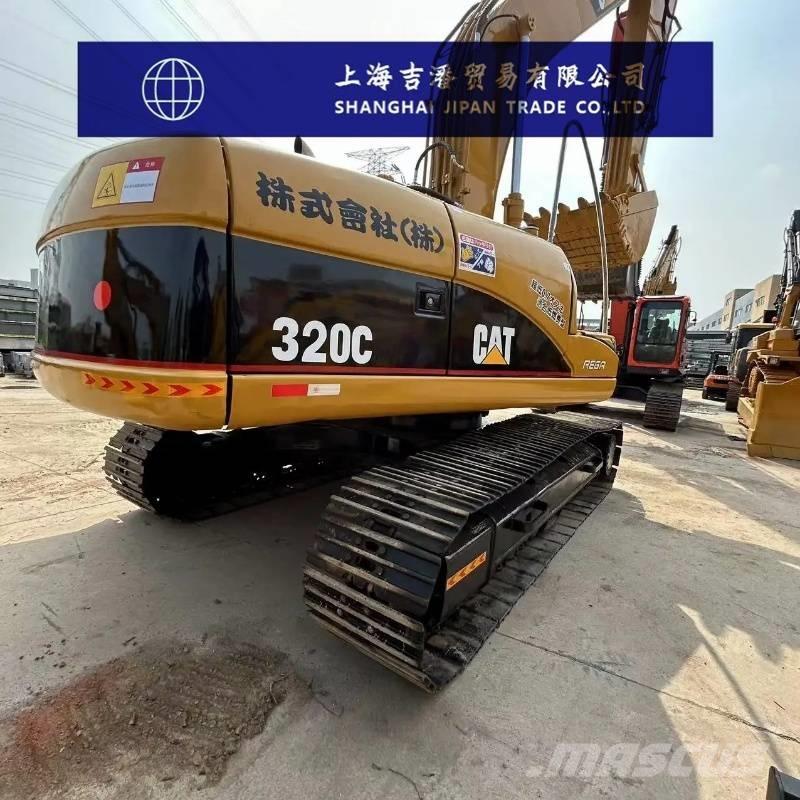

CAT 320 C
Price excl. VAT
Print
INFO
Category
Crawler Excavators
Brand / model
CAT 320 C
Year
2024
Hours
900 h
Country
China
General grade
1
2
3
4
5
Mascus ID
98B911FC
PRICING
Select Currency
DETAILS
Customer asset number
1
Power type
Diesel
Serial number
1
Amount of previous owners
1
Date of latest inspection
2025-08-18
Undercarriage condition
good condition
Engine
Original
Gross weight
46,551 lbs
Engine power
150 hp (110 kW)
Engine manufacturer
Caterpillar
Registration number
1
Emission level
Stage V / Tier V
Bucket capacity
0.80 m3
Track width
23.6 inches
Top speed
5.50 km/h
Transport dimensions (LxWxH)
369.69 x 110.24 x 120.08 inches
Original color
Yellow
Dipper / stick length
114 inches
Condition Info/Guarantee
1 year
Production country
China
Delivery terms
FCA, FOB, CIF, EXW
Certificates
EPA, CE
Attachments
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Accessories
line rupture valve boom -> safety line rupture valve - boom/hoist
line rupture valve dipper -> safety line rupture valve - dipper/stick
Air conditioning
Engine pre-filter
Skeleton bucket
Rotating beacon
Extra equipment
Joystick control
Standard digging bucket
Additional information
卡特彼勒320C挖掘机 参数配置
规格
动力传统动力
厂商合资/进口
铲斗反铲
吨位(吨)20
整机工作重量(kg)21115
铲斗容量(m³)0.8
动臂长度(mm)5680
斗杆长度(mm)2900
性能
回转速度(rpm)11.5
行走速度(km/h)5.5
接地比压(Kpa)48.02
铲斗挖掘力(kN)132
斗杆挖掘力(kN)99
动力系统
发动机型号卡特CAT 3066 ATAAC
额定功率(kw/rpm)110/1800
排量(L)6.4
缸径×行程(mm)102×130
冷却方式水冷
液压系统
主泵最大流量(l/min)205
先导油路(MPa)4.12
工作液压油路(Mpa)34.3
行走液压回路(Mpa)34.4
回转液压回路(Mpa )26
动臂油缸-个数×缸径×行程(mm)2-120×1260
斗杆油缸-个数×缸径×行程(mm)1-140×1430
铲斗油缸-个数×缸径×行程(mm)1-120×1030
油类容量
燃油箱(L)320
液压油箱(L)120
液压系统(L)200
发动机油更换量(L)30
冷却液(L )24
主体尺寸
运输总长度(mm)9390
运输总宽度(mm)2800
运输总高度(mm)3050
驾驶室全高(mm)3050
履带接地长度(mm)3260
履带总长度(mm)4070
履带板宽度(mm)600
履带总宽度(mm)2800
履带轨距(mm)2200
最小离地间隙(mm )460
后端回转半径(mm )2770
作业范围
停机面最大挖掘半径(mm)9710
最大挖掘深度(mm)6550
最大挖掘高度(mm)9440
最大卸载高度(mm)6770
最大垂直挖掘深度(mm)5440
