INFO

Category
Crawler Excavators
Brand / model

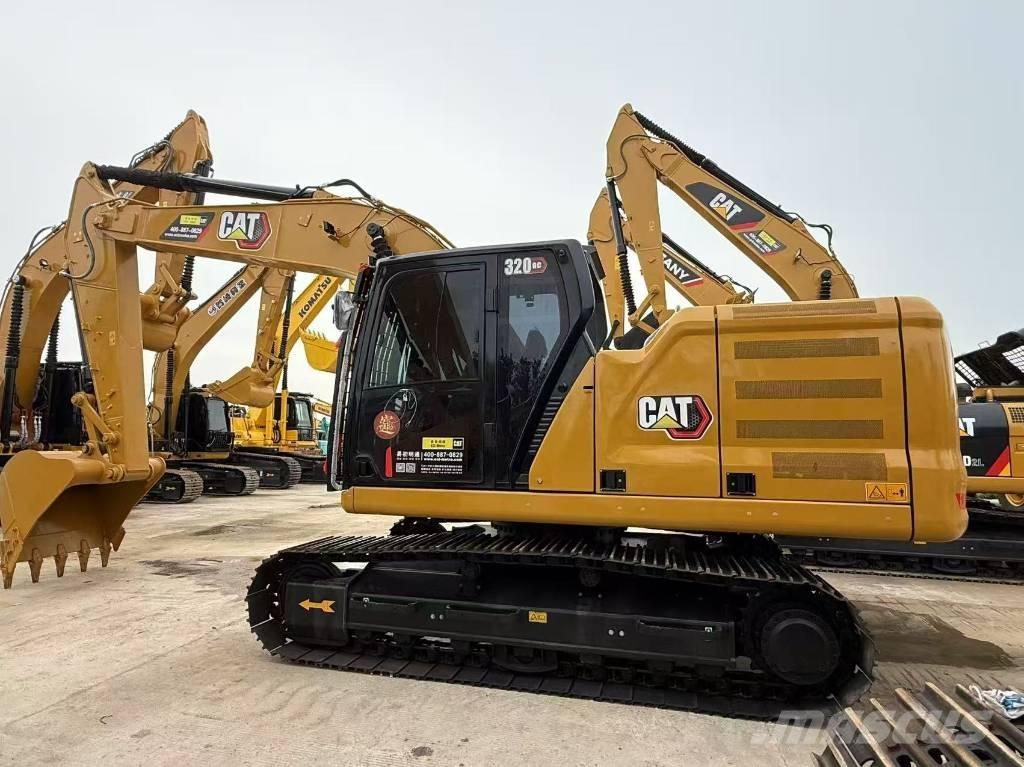

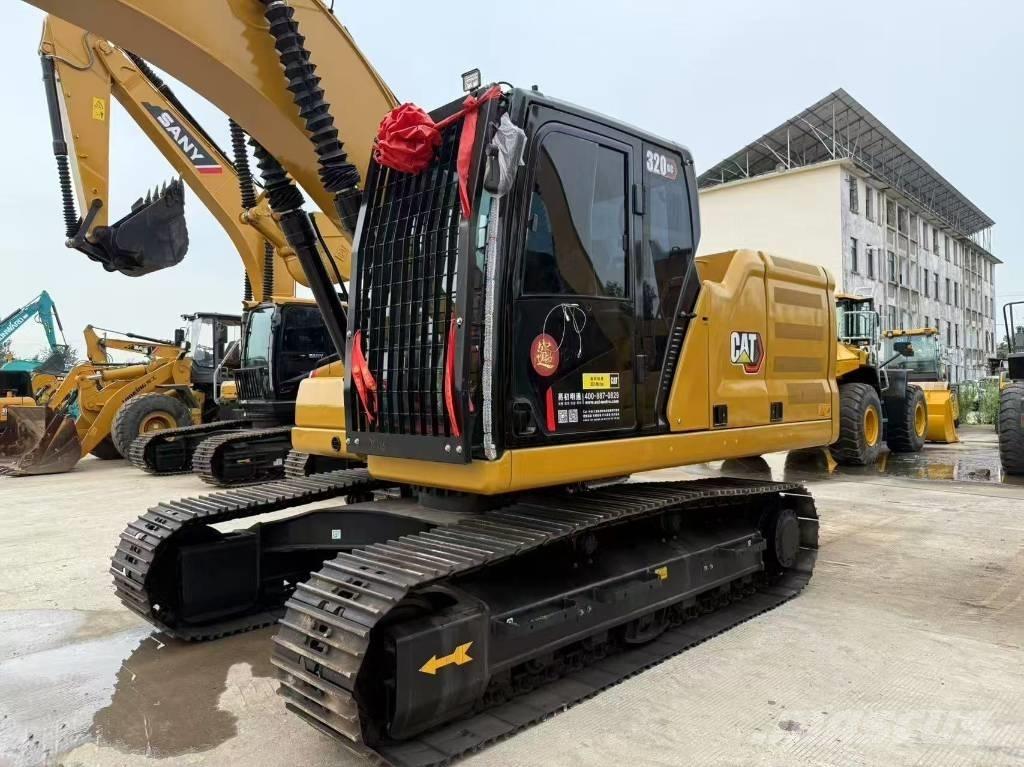

CAT 320 GC
Year
2024
Hours
355 h
Country
China
General grade
1
2
3
4
5
Mascus ID
CFB83812

PRICING

Select Currency

DETAILS

Date of latest inspection
2025-09-11
Undercarriage condition
Perfect
Engine
C4.4
Gross weight
45,415 lbs
Engine power
150 hp (110 kW)
Engine manufacturer
Japan
Bucket capacity
1 m3
Track width
23.6 inches
Output of the auxiliary hydraulics
429 l/min
Top speed
5.90 km/h
Transport dimensions (LxWxH)
375.2 x 1173.31 x 116.54 inches
Original color
Original color
Condition Info/Guarantee
One year
Production country
Japan
Delivery terms
FOB, CFR, CIF, EXW
Certificates
EPA, CE
Accessories
GPS
Air conditioning
Engine pre-filter
Skeleton bucket
Rotating beacon
automatic lub. system -> auto lubrication system
Extra equipment
Diesel heater
Joystick control
Steel tracks
Standard digging bucket
Depth control
Additional information
Technical Specifications of CAT320GC Excavator - Machine Parameters - Operating Weight: 20,600 kg - Bucket Capacity: 1.0 m³ - Total Transport Length: 9,530 mm - Total Transport Width: 2,980 mm - Total Transport Height: 2,960 mm - Power System Parameters - Engine Model: Cat® C4.4 - Rated Power: 110 kW / 2000 rpm - Displacement: 4.4 L - Bore × Stroke: 105 × 127 mm - Hydraulic System Parameters - Maximum Flow of Main Pump: 429 L/min - Working Hydraulic Circuit Pressure: 35 MPa - Travel Hydraulic Circuit Pressure: 34.3 MPa - Swing Hydraulic Circuit Pressure: 25 MPa - Travel System Parameters - Travel Speed: 5.9 km/h - Total Track Length: 4,250 mm - Track Shoe Width: 600 / 700 mm - Track Gauge: 2,380 mm - Working Range Parameters - Maximum Digging Radius: 9,770 mm - Maximum Digging Depth: 6,630 mm - Maximum Digging Height: 9,440 mm - Maximum Dumping Height: 6,580 mm

Hefei Keyue Construction Machinery Co., Ltd.

lingmeng building 231600 hefei Anhui 安徽 China
