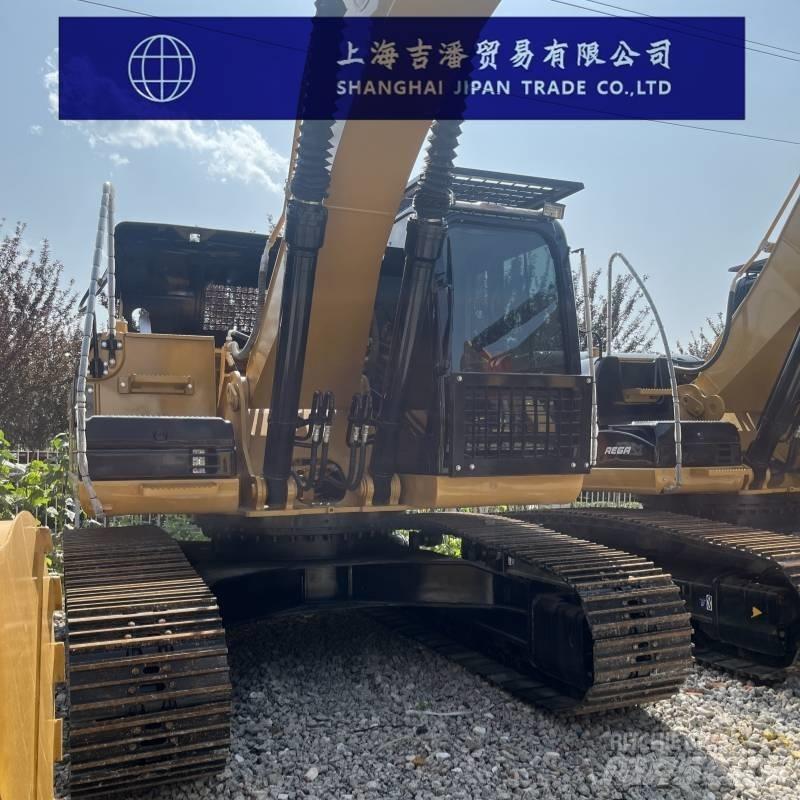

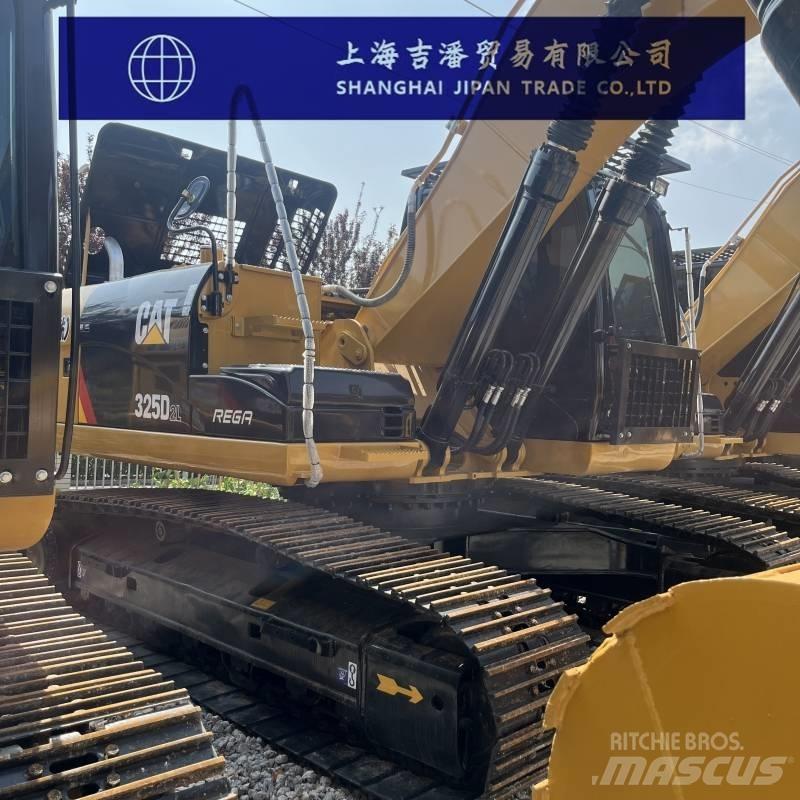

CAT 325 D

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Cat 325DL excavator Specification The working weight of the entire machine (kg) is 29,240 Bucket capacity (m³)1.4 Boom length (mm) : 6150 The length of the boom (mm) is 3750 Origin: Japan Tonnage (tons)25 Bucket backhoe Power Traditional Power Bucket backhoe Joint venture/import by manufacturers Power Traditional Power Performance Rotational speed (rpm) : 10.2 Walking speed (km/h)5.3 Power system Engine model: Caterpillar CAT C7ACERT Rated power (kw/rpm) : 141.7/1800 Displacement (L)7.2 Number of cylinders (6 Cylinder diameter × stroke (mm)110×127 The cooling method is water cooling Hydraulic system The main overflow set pressure (Mpa) is 36 The maximum flow rate of the main pump (l/min) is 470 Oil capacity Fuel tank (L)520 Hydraulic System (L)310 Engine oil change volume (L)10 Coolant (L)30 Main body size Total transportation length (mm) : 10410 The total transportation width (mm) is 3390 The total transportation height (mm) is 3632 The total height of the cab (mm) is 3040 The ground clearance of counterweights (mm) is 1110 Track plate width (mm) : 800 The total width of the tracks (mm) is 3390 Track gauge (mm) : 2590 Minimum ground clearance (mm) : 490 Scope of work The maximum excavation radius of the shutdown face (mm) is 11153 Maximum excavation depth (mm) : 7833 Maximum excavation height (mm) : 10297 Maximum unloading height (mm) : 7102 The maximum vertical excavation depth (mm) is 6590
