INFO

Category
Crawler Excavators
Brand / model

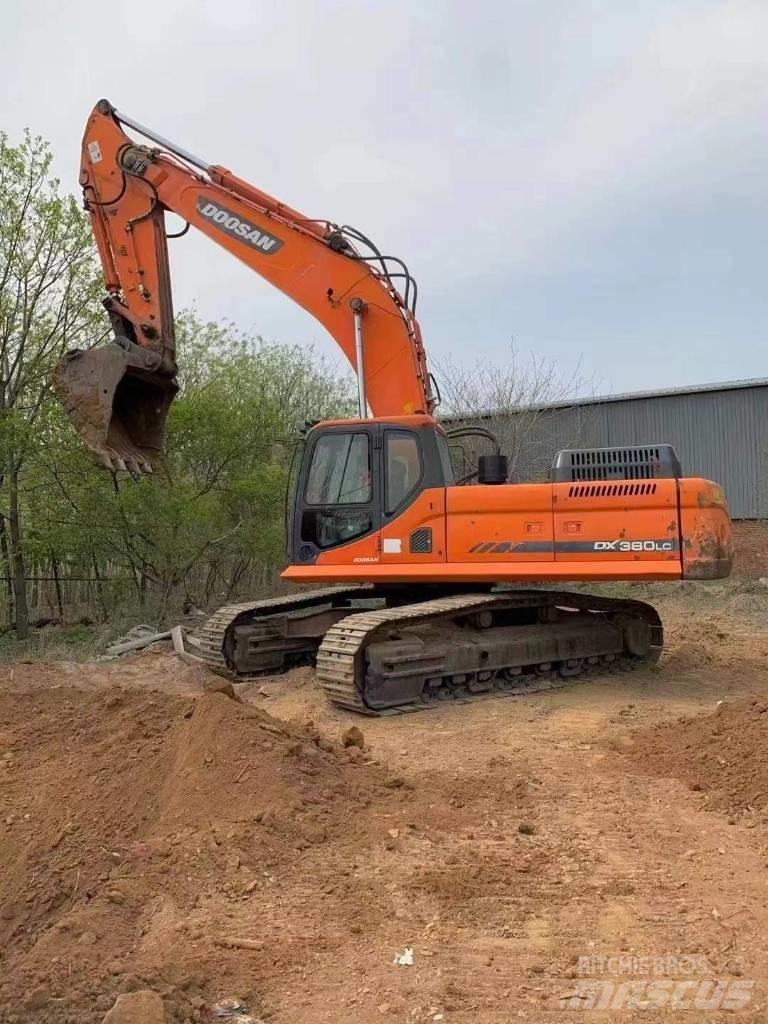

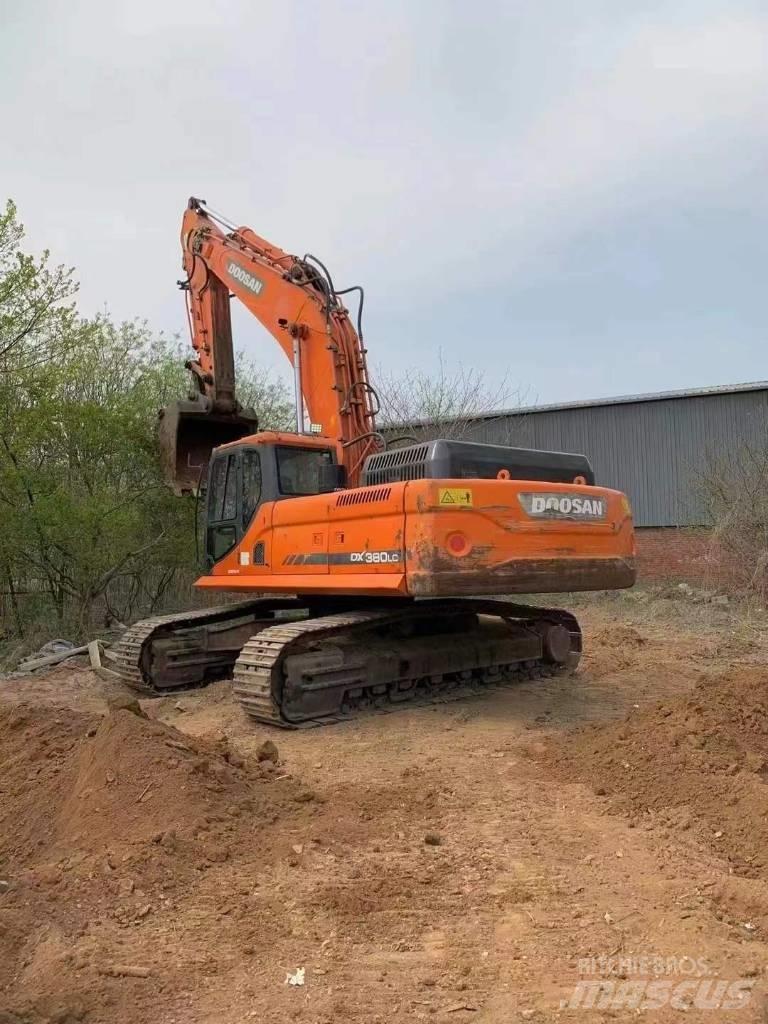

Doosan DX 380 LC
Year
2022
Hours
766 h
Location
金山区, 上海
Country
China
General grade
1
2
3
4
5
Mascus ID
1FDB4427

PRICING

Select Currency

DETAILS

Power type
Diesel
Amount of previous owners
1
Full service history
Yes
Date of latest inspection
2025-07-27
Undercarriage condition
good
Gross weight
83,996 lbs
Engine power
275 hp (202 kW)
Bucket capacity
1.90 m3
Top speed
5.50 km/h
Original color
yellow
Condition Info/Guarantee
good
Production country
China
Delivery terms
FOB, CFR, CIF, EXW
Certificates
EPA, CE
Attachments
Hello, I'm Gavin, specializing in the sales of construction machinery. We have been working in this industry for decades and have four large machine storage yards in Shanghai. If you are interested in any machines, please feel free to contact me. WhatsApp/WeChat: 0086 18019214942
Accessories
Diesel heater
Joystick control
Standard digging bucket
V ditch bucket
Additional information
斗山DX380 基本信息 • 整机工作重量:38100kg • 铲斗容量:1.9m³ • 动臂长度:6500mm • 斗杆长度:2900mm 动力系统 • 发动机型号:斗山 DE12TIA-C2A • 额定功率:202kW/1800rpm • 排量:11.05L • 气缸数:6 • 缸径 × 行程:123×155mm • 冷却方式:水冷 • 工作形式:直喷、涡轮增压、空冷 液压系统 • 主泵类型:变量柱塞泵 • 主泵最大流量:2×279L/min • 行走液压马达型式:轴向柱塞式 ×2 • 回转液压马达型式:轴向柱塞式 ×1 • 工作液压油路:34.3MPa • 行走液压回路:34.3MPa • 回转液压回路:29.4MPa • 动臂油缸:个数 × 缸径 × 行程为 2×150×1430mm • 斗杆油缸:个数 × 缸径 × 行程为 1×170×1812mm • 铲斗油缸:个数 × 缸径 × 行程为 1×150×1290mm 油类容量 • 燃油箱:610L • 液压油箱:206L • 发动机油更换量:28L 主体尺寸 • 运输总长度:11380mm • 运输总宽度:3350mm • 运输总高度:3740mm • 驾驶室全高:3150mm • 配重离地间隙:1265mm • 履带总长度:4975mm • 履带板宽度:600mm • 履带总宽度:3350mm • 最小离地间隙:545mm • 前段工作装置最小回转半径:4485mm • 后端回转半径:3530mm

Shanghai Liuxu Construction Machinery Co., Ltd

上海市松江区车墩镇北松公路5255号2楼 201600 上海市 Shanghai 上海 China
