INFO

Category
Crawler Excavators
Brand / model

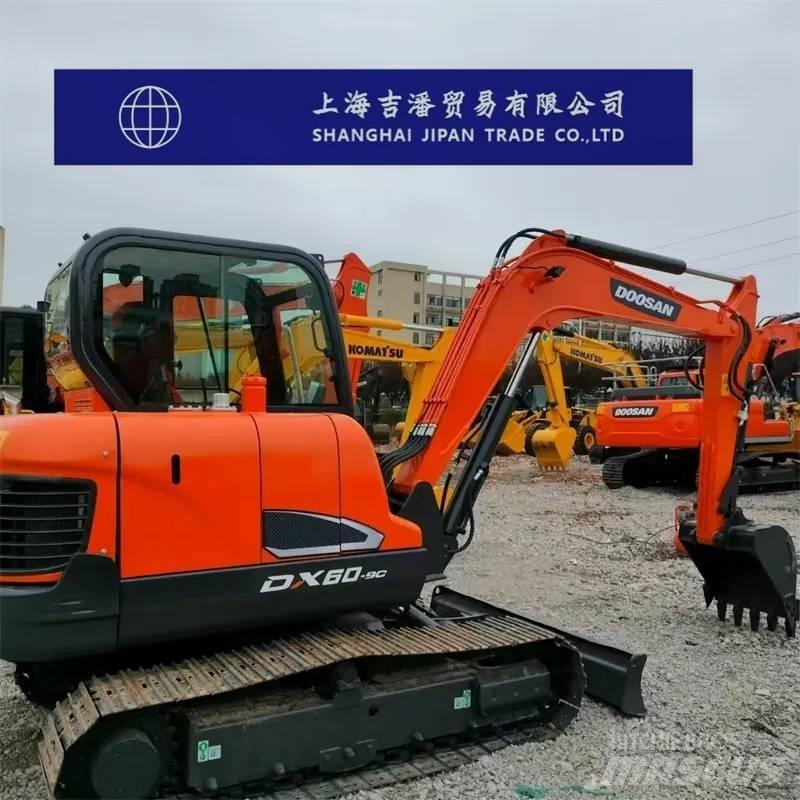

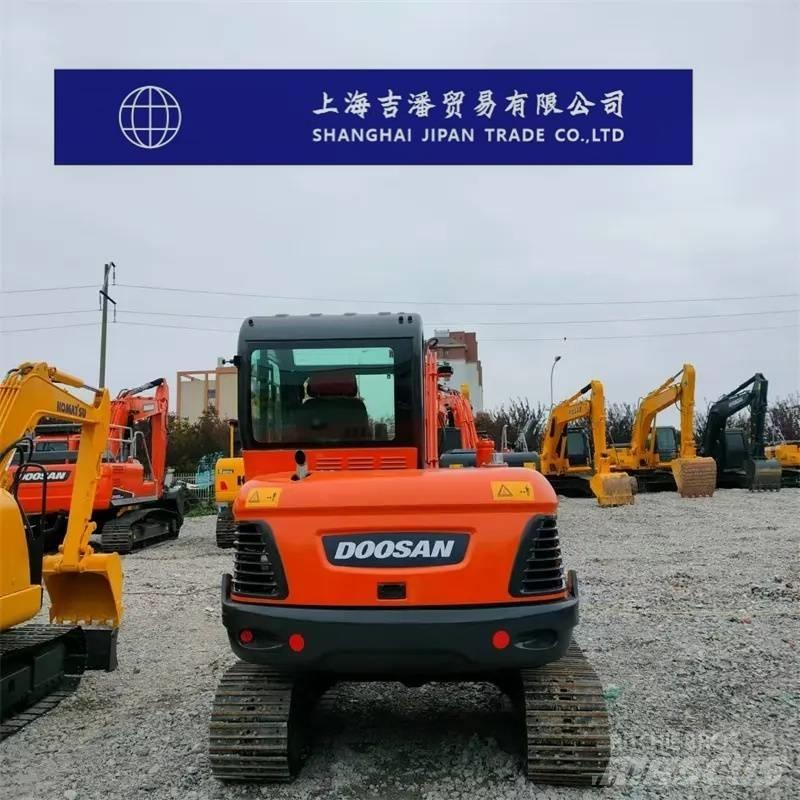

Doosan DX 60-9C
Year
2020
Hours
3,620 h
Country
China
General grade
1
2
3
4
5
Mascus ID
2463CBDE

PRICING

Select Currency

DETAILS

Power type
Diesel
Amount of previous owners
1
Date of latest inspection
2025-05-08

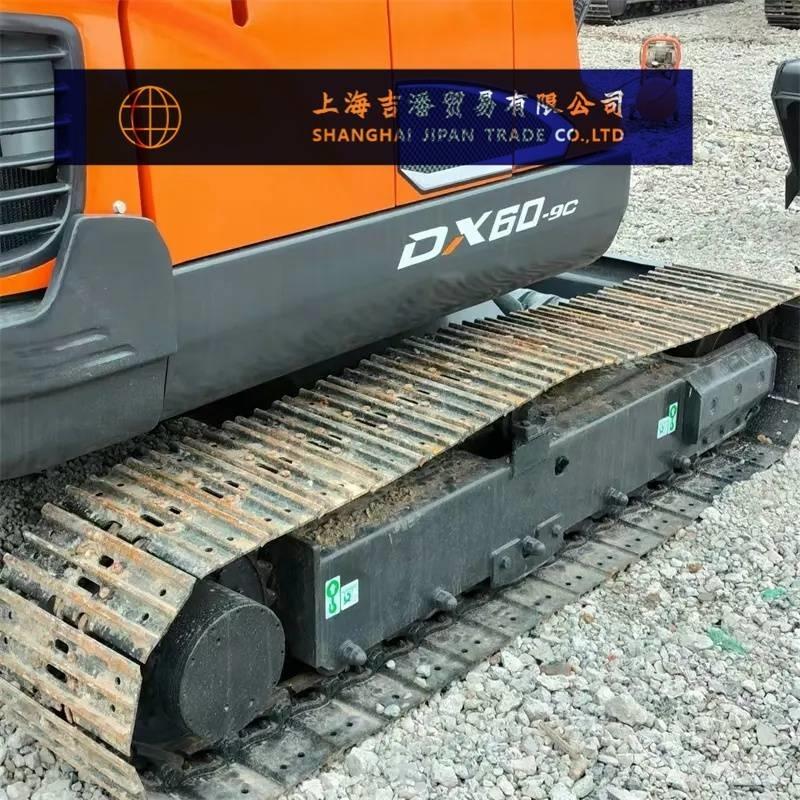

Undercarriage condition
98%
Engine
original
Gross weight
12,566 lbs
Engine power
52.9 hp (38.9 kW)
Engine manufacturer
original
Emission level
Stage V / Tier V
Bucket capacity
0.21 m3
Track width
19.7 inches
Top speed
5.50 km/h
Transport dimensions (LxWxH)
231.1 x 78.74 x 78.07 inches
Original color
original
Dipper / stick length
4.17 inches
Condition Info/Guarantee
1 year
Production country
South Korea
Delivery terms
FCA, FOB, CFR, CIF, EXW
Certificates
EPA, CE
Attachments
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.
Accessories
Air conditioning
Skeleton bucket
Joystick control
Standard digging bucket
Show more
Additional information
斗山DX60-9C挖掘机 参数配置 规格 动力传统动力 厂商合资/进口 铲斗反铲 吨位(吨)6 整机工作重量(kg)5700 铲斗容量(m³)0.21 动臂长度(mm)3000 斗杆长度(mm)1600 性能 回转速度(rpm)9 回转扭矩(Nm)971 行走速度(km/h)4.2/2.3 接地比压(Kpa)30 铲斗挖掘力(kN)4.2ton 斗杆挖掘力(kN)2.8ton 动力系统 发动机型号D24C DIESEL 额定功率(kw/rpm)38.9/2100 气缸数(个)4 缸径×行程(mm)90×94 工作形式直列,涡轮增压 液压系统 主泵类型变量柱塞泵 行走液压马达型式轴向柱塞液压马达 主泵最大流量(l/min)2×57.8 工作液压油路(Mpa)240 行走液压回路(Mpa)240 回转液压回路(Mpa )220 油类容量 燃油箱(L)115 液压系统(L)62 主体尺寸 运输总长度(mm)5870 运输总宽度(mm)2000 运输总高度(mm)1983 驾驶室全高(mm)2565 上车宽度(mm)1850 履带总长度(mm)2540 履带板宽度(mm)400 履带总宽度(mm)2000 最小离地间隙(mm )700 配重离地间隙(mm)350 前段工作装置最小回转半径(mm)2365 后端回转半径(mm )1660 作业范围 最大挖掘半径(mm)6136 停机面最大挖掘半径(mm)6000 最大挖掘深度(mm)3807 最大挖掘高度(mm)5788 最大卸载高度(mm)4064 最大垂直挖掘深度(mm)3037 最大有效挖掘深度(mm)3388 推土板宽度×高度(mm)2000×350Show more

上海吉潘贸易有限公司

上海市松江区车墩镇莘莘路32号3799 201600 上海 上海 China
