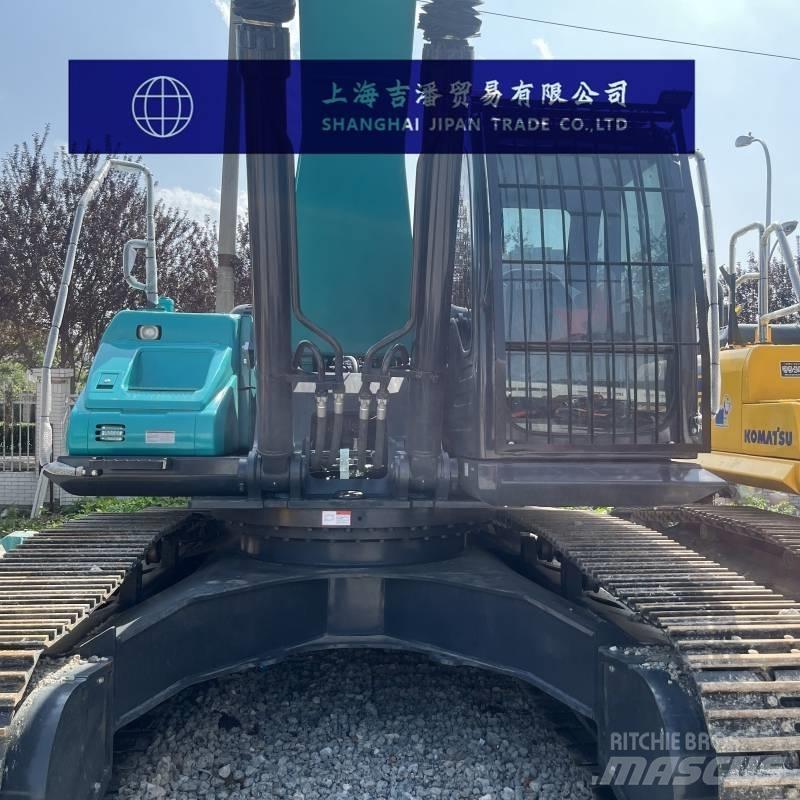

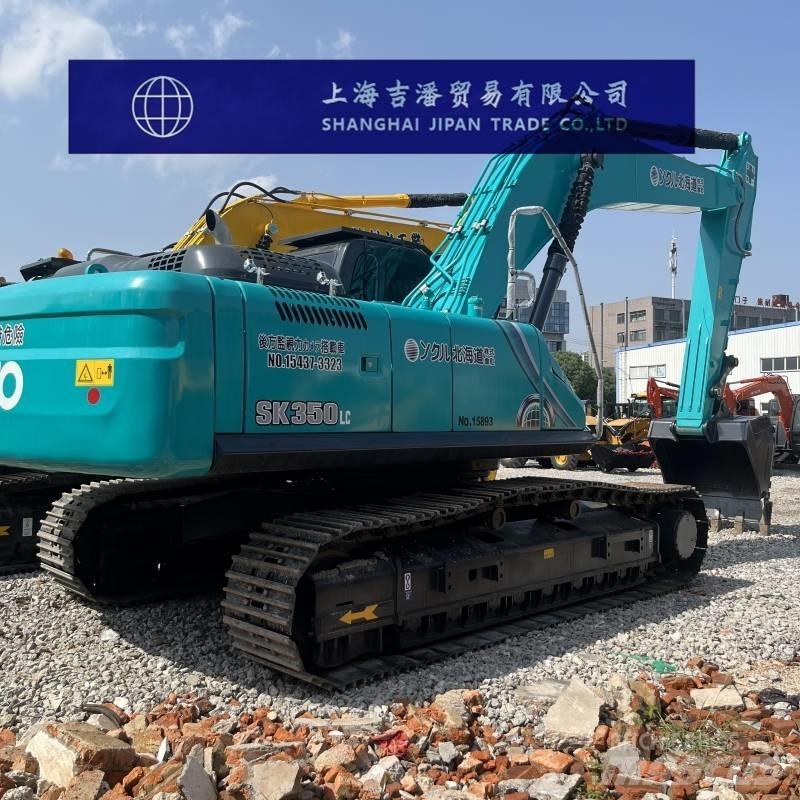

Kobelco SK 350
Price excl. VAT
Print
INFO
Category
Crawler Excavators
Brand / model
Kobelco SK 350
Year
2023
Hours
700 h
Country
China
General grade
1
2
3
4
5
Mascus ID
C882AD8B
PRICING
Select Currency
DETAILS
Customer asset number
1
Power type
Diesel
Serial number
1
Amount of previous owners
1
Date of latest inspection
2025-07-09
Undercarriage condition
Good Condition
Engine
Original
Gross weight
76,500 lbs
Engine power
268 hp (197 kW)
Engine manufacturer
Original
Registration number
1
Emission level
Stage V / Tier V
Bucket capacity
1.60 m3
Track width
23.6 inches
Output of the auxiliary hydraulics
294 l/min
Top speed
5.60 km/h
Transport dimensions (LxWxH)
440.95 x 133.86 x 134.65 inches
Original color
Original
Dipper / stick length
130 inches
Condition Info/Guarantee
1 Year
Production country
Japan
Delivery terms
FCA, FOB, CIF, EXW
Certificates
EPA, CE
Attachments
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Accessories
line rupture valve boom -> safety line rupture valve - boom/hoist
line rupture valve dipper -> safety line rupture valve - dipper/stick
Twig wire box
Air conditioning
Additional hydraulics
Engine pre-filter

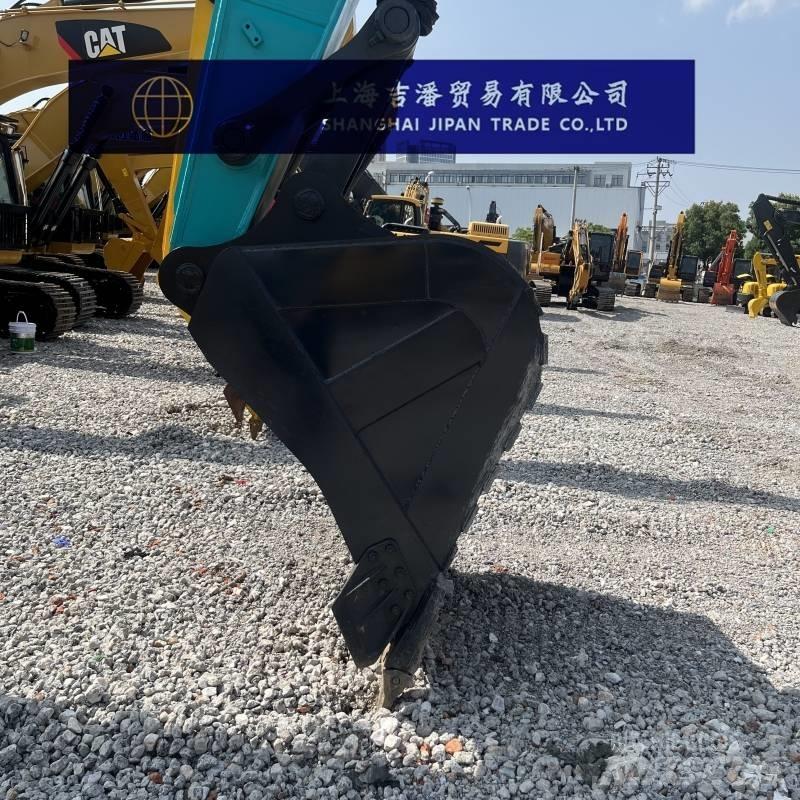

Skeleton bucket
Engine heater
Rotating beacon
Diesel heater
Joystick control
Standard digging bucket
Cable bucket
V ditch bucket
Additional information
Overall machine specification
The overall working weight of the machine is 34,700 kg
Bucket capacity: 1.6 cubic meters
Boom length: 3300mm
Performance parameters
Rotational speed: 10rpm
Walking speed: 5.6/3.3Km/h
Climbing ability: 70% (35°)
Grounding specific pressure: 50.5Kpa
Bucket digging force: 322kN
Bucket shaft digging force: 165kN
Power system
Engine model: Hino JO8E
Rated power: 196.9/2100 kW /rpm
Displacement: 7.7L
Number of cylinders: 6
Cylinder diameter × stroke: 112*130mm
Note: Direct injection, turbocharging, built-in intercooling
Hydraulic system
Main pump types: Double variable displacement axial piston pump, pilot gear pump
The maximum flow rate of the main pump is 2*294L/min
The type of walking hydraulic motor: two sets of two-speed variable displacement plunger motors
Working hydraulic circuit: 34.3Mpa
Walking hydraulic circuit: 34.3Mpa
Rotary hydraulic circuit: 29Mpa
Control hydraulic circuit: 5Mpa
Boom cylinders: Number × cylinder diameter × stroke: 2140-1550mm
Bucket rod cylinder: number × cylinder diameter × stroke is 170*1788mm
Bucket cylinder: Number × cylinder diameter × stroke is 150*1193mm
Oil capacity
Fuel tank: 580L
Hydraulic oil tank: 280L
Hydraulic system: 353L
Engine oil change volume: 28.5L
Coolant: 31.1L
Main body size
Total transportation length: 11200mm
Total transportation width: 3400mm
Total transportation height: 3420mm
The total height of the cab is 3160mm
Counterweight ground clearance: 1190mm
Track grounding length: 4050mm
Total track length: 4980mm
Track plate width: 600/800mm
Total width of the track: 3200mm
Track gauge: 2600mm
Minimum ground clearance: 500mm
Minimum turning radius of the front working device: 4370mm
Rear end turning radius: 3500mm
Scope of work
Maximum excavation radius: 11,260 mm
Maximum excavation radius of the shutdown face: 11060mm
Maximum excavation depth: 7,560mm
Maximum excavation height: 10,580mm
Maximum unloading height: 7370mm
Maximum vertical excavation depth: 6610mm
Maximum excavation depth (2.5 meters level) : 7400mm
