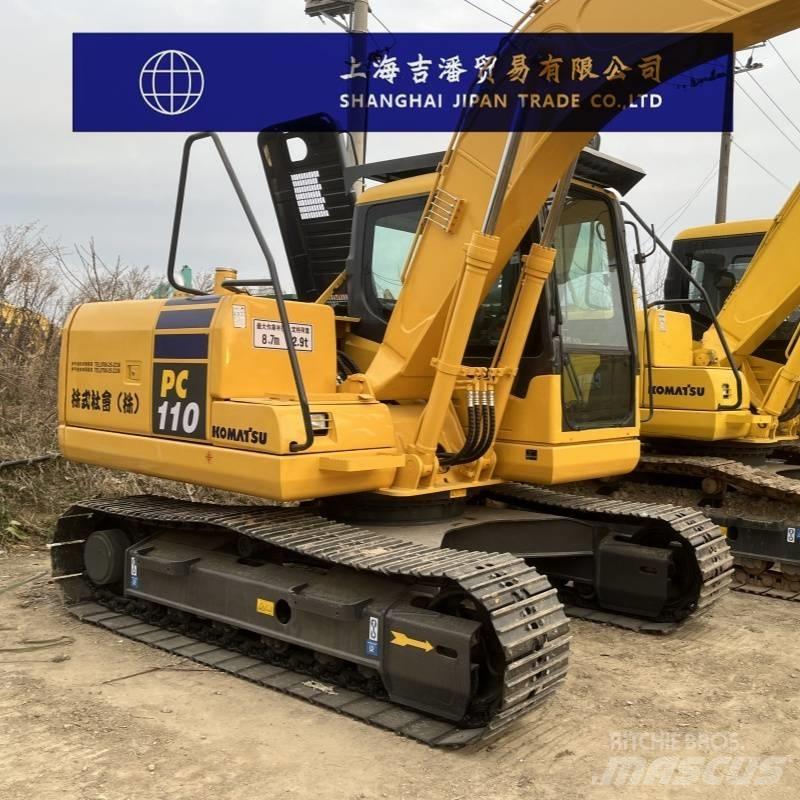

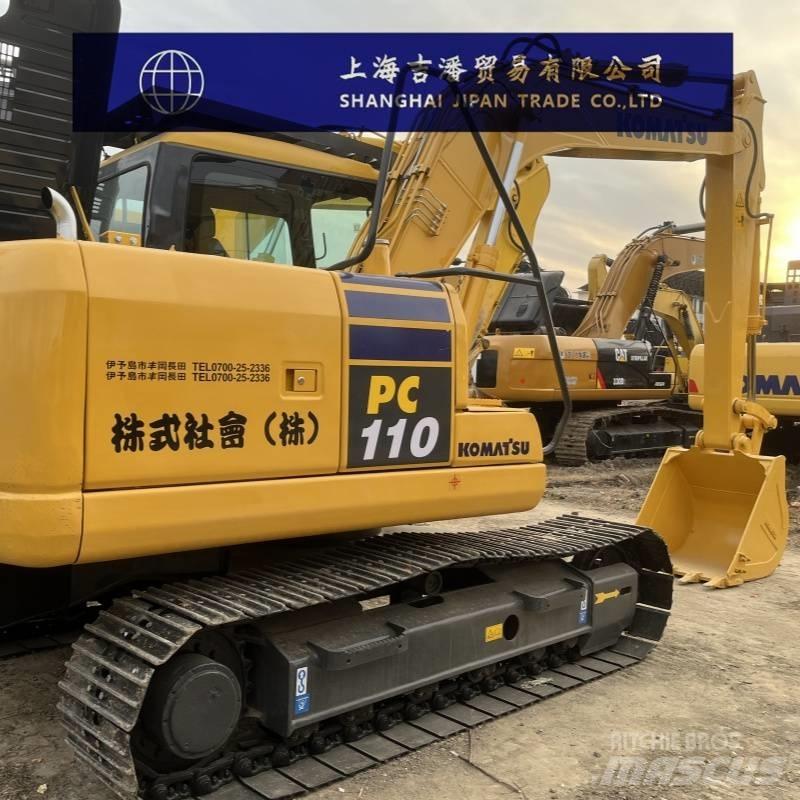

Komatsu PC 110
Price excl. VAT
Print
INFO
Category
Crawler Excavators
Brand / model
Komatsu PC 110
Year
2023
Hours
450 h
Condition
Reconditioned
Country
China
General grade
1
2
3
4
5
Mascus ID
1A2959C9
PRICING
Select Currency
DETAILS
Customer asset number
1
Power type
Diesel
Serial number
1
Amount of previous owners
1
Date of latest inspection
2025-07-02

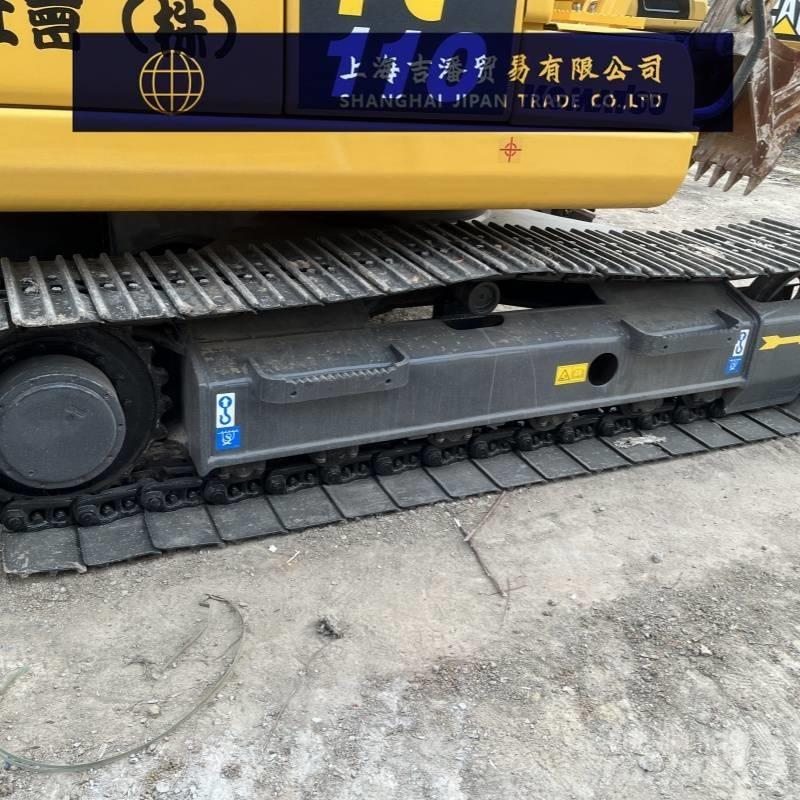

Undercarriage condition
Good Condition
Engine
Original
Gross weight
24,207 lbs
Engine power
88.4 hp (65 kW)
Engine manufacturer
Original
Registration number
1
Emission level
Stage V / Tier V
Bucket capacity
0.48 m3
Track width
19.7 inches
Output of the auxiliary hydraulics
226 l/min
Top speed
5.50 km/h
Transport dimensions (LxWxH)
282.28 x 98.03 x 110.63 inches
Original color
Original Yellow
Dipper / stick length
89.0 inches
Condition Info/Guarantee
1 Year
Production country
Japan
Delivery terms
FCA, FOB, CIF, EXW
Certificates
EPA, CE
Attachments
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Accessories
Twig wire box
Additional hydraulics
Engine pre-filter
Skeleton bucket
Engine heater
Battery disconnector
Rotating beacon
Diesel heater
Joystick control
Standard digging bucket
Cable bucket
V ditch bucket
Additional information
Specification
The working weight of the entire machine (kg) is 10,980
Bucket capacity (m³) : 0.48
Boom length (mm) : 4260
The length of the boom (mm) is 2260
Origin: Jining, Shandong Province
Tonnage (tons)11
Bucket backhoe
Joint venture/import by manufacturers
Power Traditional Power
Bucket backhoe
Joint venture/import by manufacturers
Power Traditional Power
Performance
Rotational speed (rpm)11
Walking speed (km/h) : 2.7-5.5
Climbing ability (%)70/30°
Ground pressure (Kpa) : 0.37
Bucket digging force (kN)86
The digging force of the boom (kN) is 56
Power system
Engine model: Komatsu SAA4D95LE-3
Rated power (kw/rpm) : 65/2200
Displacement (L)3.26
Cylinder diameter × stroke (mm) : 95×115
The cooling method is water cooling
Working mode: 4-stroke, post-cooling, direct injection; Complies with the EPA/EU/ Japan Grade 2 emission standards of 2001.
Hydraulic system
The maximum flow rate of the main pump (l/min) is 226L/min
Walking hydraulic motor type: Axial piston motor ×2(with parking brake)
Rotary hydraulic motor type: Axial piston motor ×1(with a rotary holding valve)
Walking hydraulic circuit (Mpa)355
Rotary hydraulic circuit (Mpa)295
Control hydraulic circuit (Mpa)325
Boom cylinders - Number × cylinder diameter × stroke (mm)110×980×65
Bucket rod cylinder - number × cylinder diameter × stroke (mm)133×1005×75
Bucket cylinder - Number × cylinder diameter × stroke (mm)104×885×60
Is the hydraulic crushing pipeline standard? No
Oil capacity
Fuel tank (L)247
Hydraulic oil tank (L)90
Engine oil change volume (L)11
Coolant (L)13.4
Main body size
The total transportation length (mm) is 7170
The total transportation width (mm) is 2490
The total transportation height (mm) is 2810
The total height of the cab (mm) is 2810
The ground clearance of the counterweight (mm) is 855
Track grounding length (mm) : 2705
The total length of the track (mm) is 3435
Track plate width (mm) : 500
The total width of the tracks (mm) is 2490
Track gauge (mm)1990
Minimum ground clearance (mm) : 400
The rear end turning radius (mm) is 2110
Scope of work
Maximum excavation radius (mm) : 7730
The maximum excavation radius (mm) of the shutdown face is 7600
Maximum excavation depth (mm) : 5060
Maximum excavation height (mm) : 7910
Maximum unloading height (mm) : 5650
Maximum vertical excavation depth (mm) : 4570
Maximum effective excavation depth (mm) : 4730
Lifting or deepening with a bulldozer (mm) without a bulldozer
