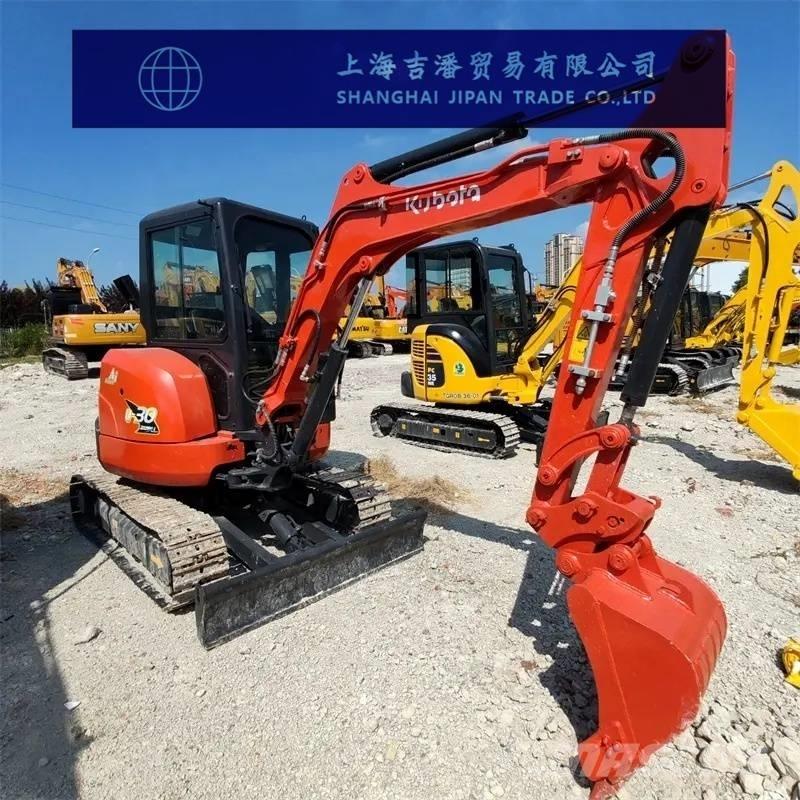

Kubota U 30

Kubota U30 excavator parameter configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe Tonnage (tons) 3 The working weight of the whole machine (kg) is 3648 Bucket width (mm) 520/470 Bucket capacity (m³) 0.08 performance Rotational speed (rpm) 9 Travel speed (km/h) 3.0/4.6 Climbing ability (%) 30° Bucket digging force (kN) 29.5 dynamical system Engine model D1703-E4 Rated power (kw/rpm) 18.5/2200 Displacement (L) 1.647 Hydraulic system Main pump type: variable pump*2 + gear pump*2 Traveling hydraulic motor type 2-speed plunger hydraulic motor Slewing hydraulic motor type plunger hydraulic motor Oil capacity Fuel tank (L) 45.1 Body size Total length of transport (mm) 4573 Total width of transport (mm) 1550 Total height of transport (mm) 2482 Total track length (mm) 2081 Track shoe width (mm) 300 Minimum ground clearance (mm) 287 The minimum turning radius of the front working device (mm) is 2164 Rear end slewing radius (mm) 900 Scope of work Maximum digging radius (mm) 4951 Maximum digging depth (mm) 2825 Maximum digging height (mm) 4558 Maximum unloading height (mm) 3141 Maximum vertical digging depth (mm) 1988 The width × height of the bulldozer plate (mm) is 1550*341 Bulldozer shovel lifting or pushing depth (mm) 366/375
