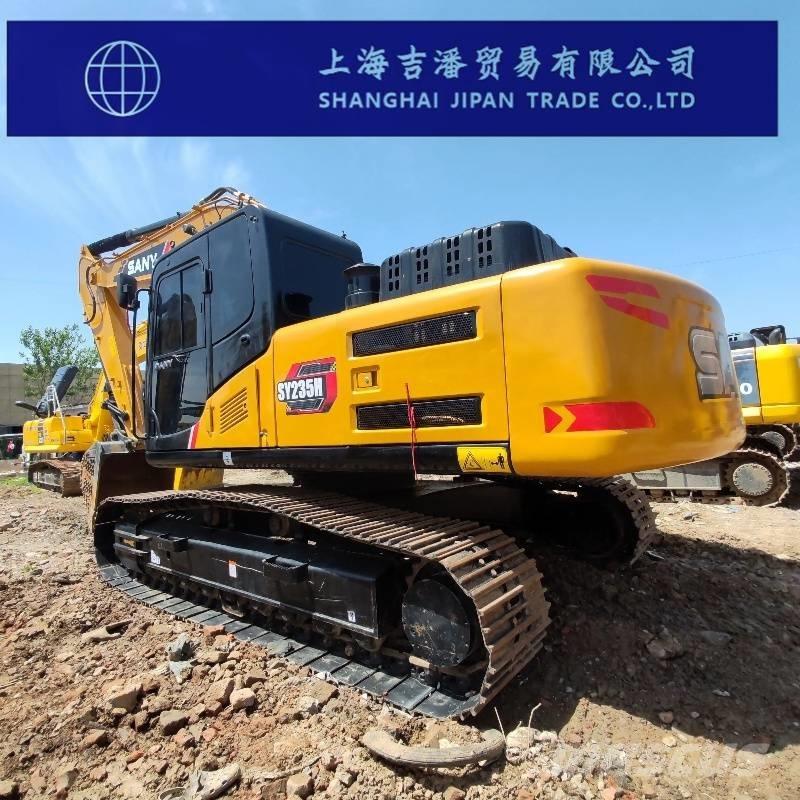

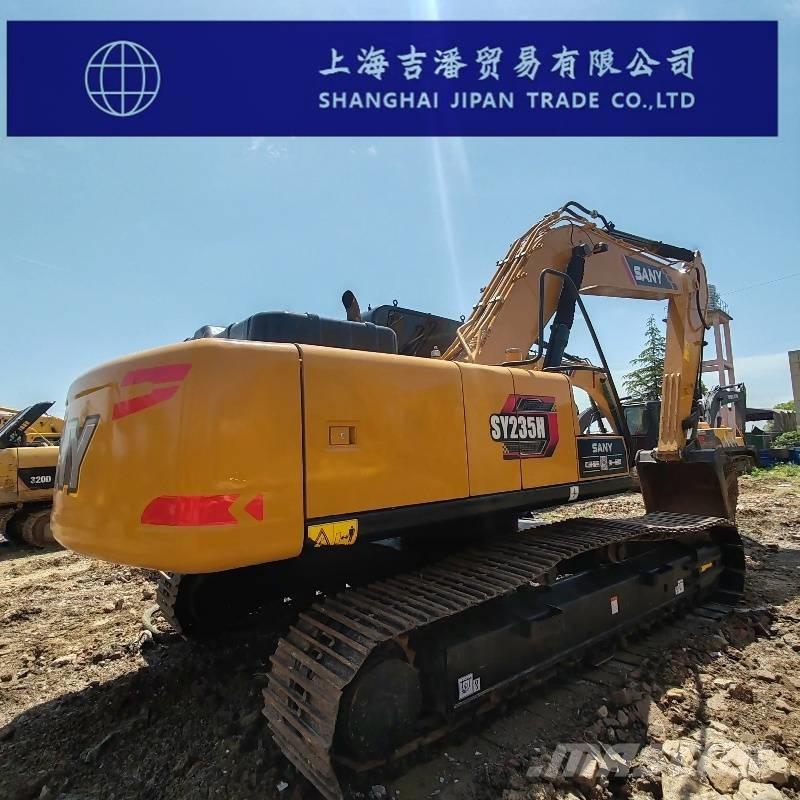

Sany SY 235 H

SANY SY235H HOPE excavator parameter configuration specification Power: Traditional power Manufacturer domestic Bucket backhoe Tonnage (tons) 23 The working weight of the whole machine (kg) is 23200 Bucket capacity (m³) 1.35 performance Rotation speed (rpm) 10.8 Travel speed (km/h)5.6/3. 5 Climbing ability (%) 70 Grounding specific pressure (Kpa) 51 Bucket digging force (kN) 158 Bucket digging force (kN) 124 dynamical system Rated power (kw/rpm) 133/2000 Body size Total length of transport (mm) 9635 Total width of transport (mm) 2980 Total height of transport (mm) 3100 Cab total height (mm) 3255 Mount width (mm) 2770 Track grounding length (mm) 3445 Total track length (mm) 4251 Track shoe width (mm) 600 Track gauge (mm) 2380 Minimum ground clearance (mm) 465 The minimum turning radius of the front working device (mm) is 3662 Maximum height (mm) at minimum turning radius 7600 Rear end slewing radius (mm) 2900 Scope of work Maximum digging radius (mm) 9745 Maximum digging depth (mm) 6450 Maximum digging height (mm) 9470 Maximum unloading height (mm) 6735
