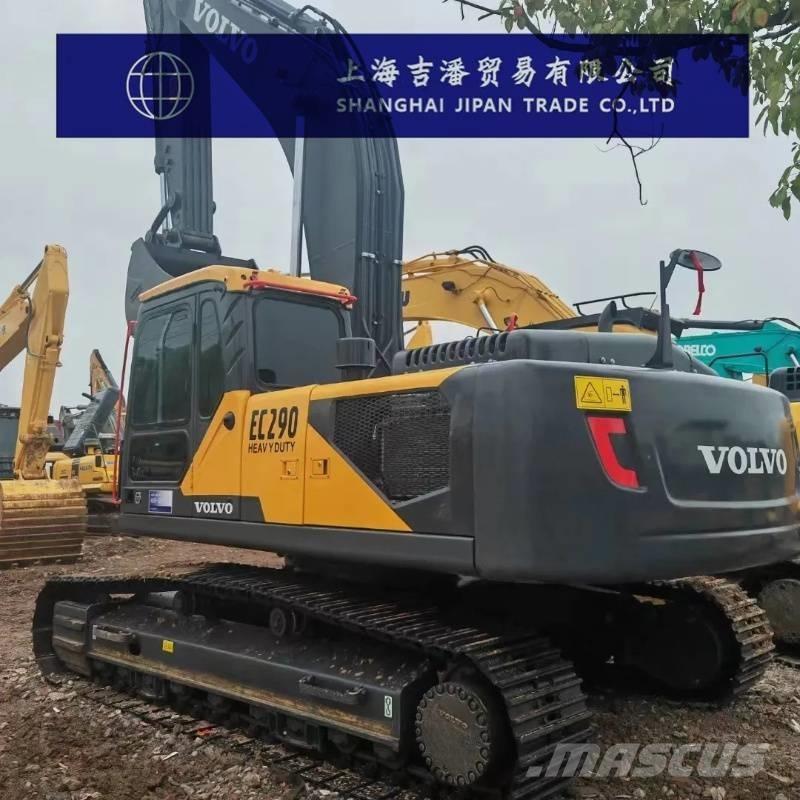

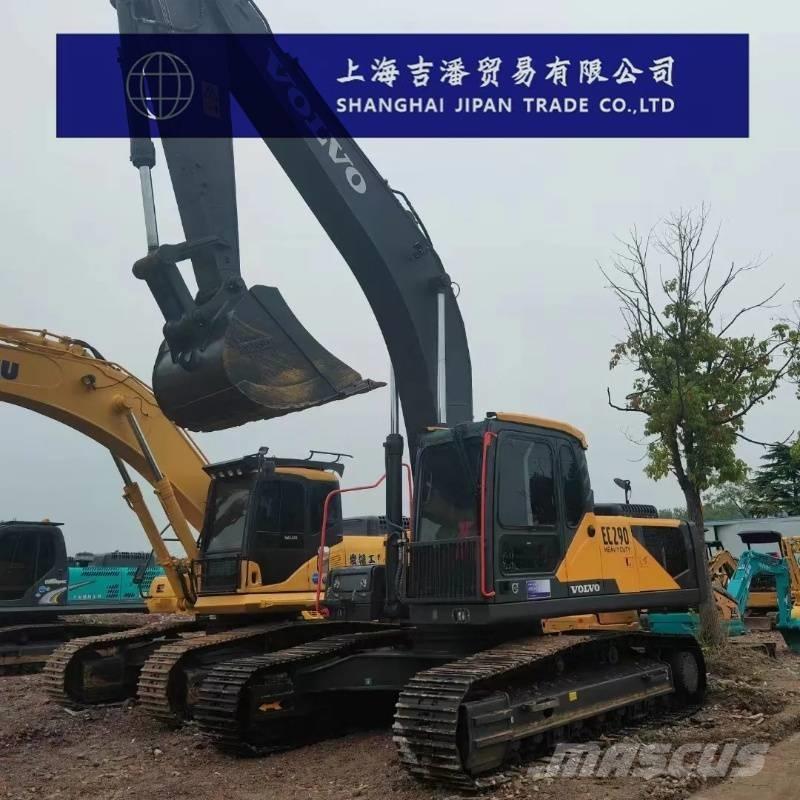

Volvo EC 290

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Parameter Value Operating Weight 28500 - 29900 kg Bucket Capacity 1.3 m³ Boom Length 6200 mm (Heavy - duty Boom) Stick Length 3050 mm Swing Speed 10.2 rpm Travel Speed 3.3/5.2 km/h Gradeability 70% (35°) Ground Contact Pressure 54.1 Kpa (with 5.4 - ton counterweight) Bucket Digging Force 181.4 kN (Standard Mode)/198.4 kN (Boost Mode) Stick Digging Force 127.6 kN (Standard Mode)/139.5 kN (Boost Mode) Maximum Traction Force 230.5 kN Engine Model Volvo D7D Rated Power 153 kW/1900 rpm Displacement 7.1 L Number of Cylinders 6 Bore × Stroke 108×130 mm Cooling Method Water - cooled Main Pump Type Variable Axial Piston Pump × 2 + Gear Pump Maximum Flow of Main Pump 250×2 + 19 L/min Type of Travel Hydraulic Motor Variable Axial Piston Motor × 2 Type of Swing Hydraulic Motor Axial Piston Hydraulic Motor (with Mechanical Brake) Working Hydraulic Circuit Pressure 31.4/34.3 Mpa Travel Hydraulic Circuit Pressure 34.3 Mpa Swing Hydraulic Circuit Pressure 26.5 Mpa Pilot Circuit Pressure 3.9 Mpa Fuel Tank Capacity 470 L Hydraulic Tank Capacity 195 L Hydraulic System Capacity 400 L Engine Oil Change Volume 32 L Coolant Capacity 44 L Transport Total Length 10400 mm Transport Total Width 3190 mm Transport Total Height 3290 mm (Total Boom Height) Cab Full Height 3030 mm Counterweight Ground Clearance 1145 mm Track Ground Contact Length 4015 mm Track Total Length 4870 mm Track Shoe Width Three - tooth 600/700/800/900; Two - tooth 700 mm Track Total Width 3190 mm Track Gauge 2590 mm Minimum Ground Clearance 480 mm Minimum Swing Radius of Front - end Working Equipment 4180 mm Rear - end Swing Radius 3050 mm Maximum Digging Radius 10690 mm Maximum Digging Radius at Working Surface 10490 mm Maximum Digging Depth 7320 mm Maximum Digging Height 10040 mm Maximum Unloading Height 7050 mm Maximum Vertical Digging Depth 6200 mm Maximum Effective Digging Depth 7140 mm
