Category
Crawler Excavators
Brand / model

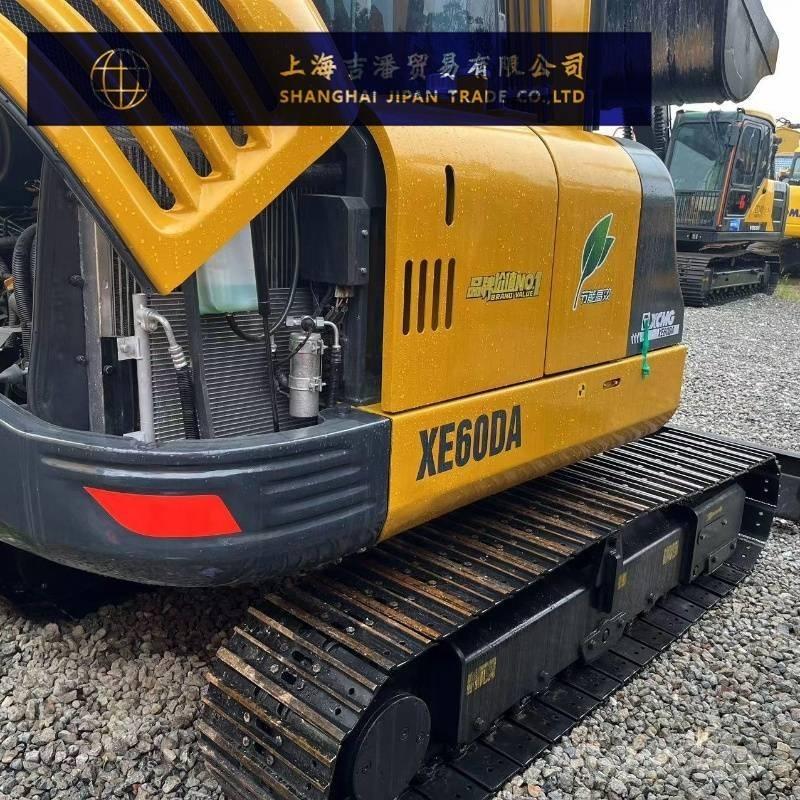

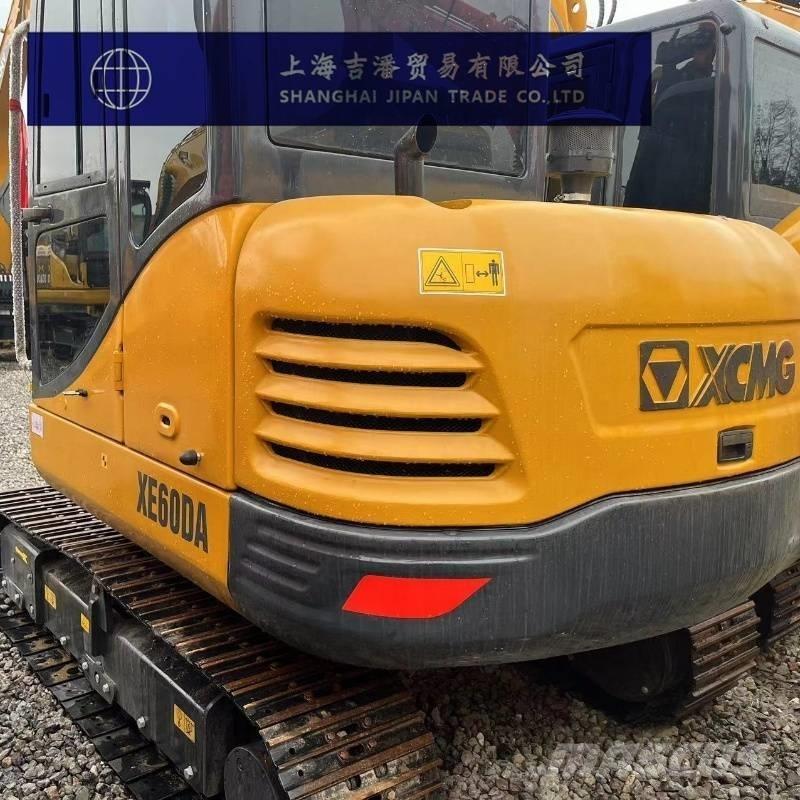

XCMG XE 60 DA
Year
2023
Hours
320 h
Country
China
General grade
1
2
3
4
5
Mascus ID
CEF4F950

PRICING

Select Currency

DETAILS

Power type
Diesel
Amount of previous owners
1
Date of latest inspection
2025-09-08
Undercarriage condition
Orginal
Gross weight
13,250 lbs
Engine power
49.2 hp (36.2 kW)
Engine manufacturer
Orginal
Emission level
Stage V / Tier V
Bucket capacity
0.23 m3
Original color
Orginal
Condition Info/Guarantee
1 Year
Production country
China
Delivery terms
FCA, FOB, CIF, EXW
Certificates
EPA, CE
Accessories
Air conditioning
Quick coupler
Skeleton bucket
Joystick control
Standard digging bucket
Additional information
基本参数 整机型号:XE60DA 整机工作重量:6010kg 铲斗容量:0.23m³ 动力类型:柴油 发动机型号:4TNV94L 尺寸参数 运输总长度:5860mm 运输总宽度:1920mm 运输总高度:2585mm 履带板宽度:400mm 履带轨距:1500mm 最小离地间隙:385mm 配重离地间隙:700mm 前段工作装置最小回转半径:2460mm 支重轮中心间距:1990mm 性能参数 回转速度:10rpm 行走速度:2.2/4.2km/h 爬坡能力:35% 接地比压:32.5kPa 最大牵引力:50.5kN 铲斗挖掘力:48.3kN 斗杆挖掘力:32.5kN 动力系统参数 发动机额定功率:36.2kW/2100rpm 最大扭矩:207.4N.m/1000rpm 气缸数:4 个 冷却方式:水冷 工作形式:直喷、4 冲程 油类容量参数 燃油箱:110L 液压油箱:85L 发动机油更换量:12L 液压系统参数 额定流量:151.2L/min 主阀压力:24.5MPa 行走系统压力:22MPa 回转系统压力:21MPa 先导系统压力:3.5MPa 作业范围参数 最大挖掘半径:6130mm 最大挖掘深度:3830mm 最大挖掘高度:5630mm 最大卸载高度:3945mm 最大垂直挖掘深度:2680mmc
