Cummins ISMe308
Price excl. VAT
Print
INFO
Category
Engines
Brand / model
Cummins ISMe308
Year
2018
Condition
New/unused
Location
Jining, Shandong, China
Country
China
General grade
1
2
3
4
5
Mascus ID
0B3ADE67
PRICING
Select Currency
DETAILS
Customer asset number
ISMe308
Date of latest inspection
yes
Engine power
307 hp (226 kW)
Part ID
ISMe308
Full service history
Yes
Serial number
ISMe308
Transport weight
2,205 lbs
Transport dimensions (LxWxH)
55.12 x 39.37 x 59.06 inches
RPM
1900
Emission level
Stage IIIB / Tier IV interim
Condition Info/Guarantee
ISO9001
Production country
China
Delivery terms
FCA, CPT, FOB, CFR, CIF, EXW
Additional information

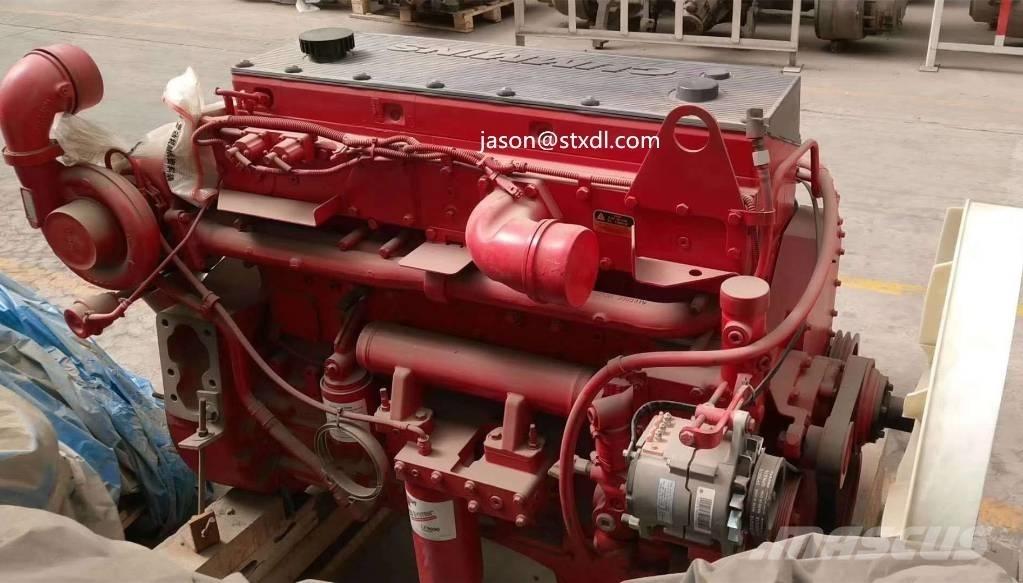

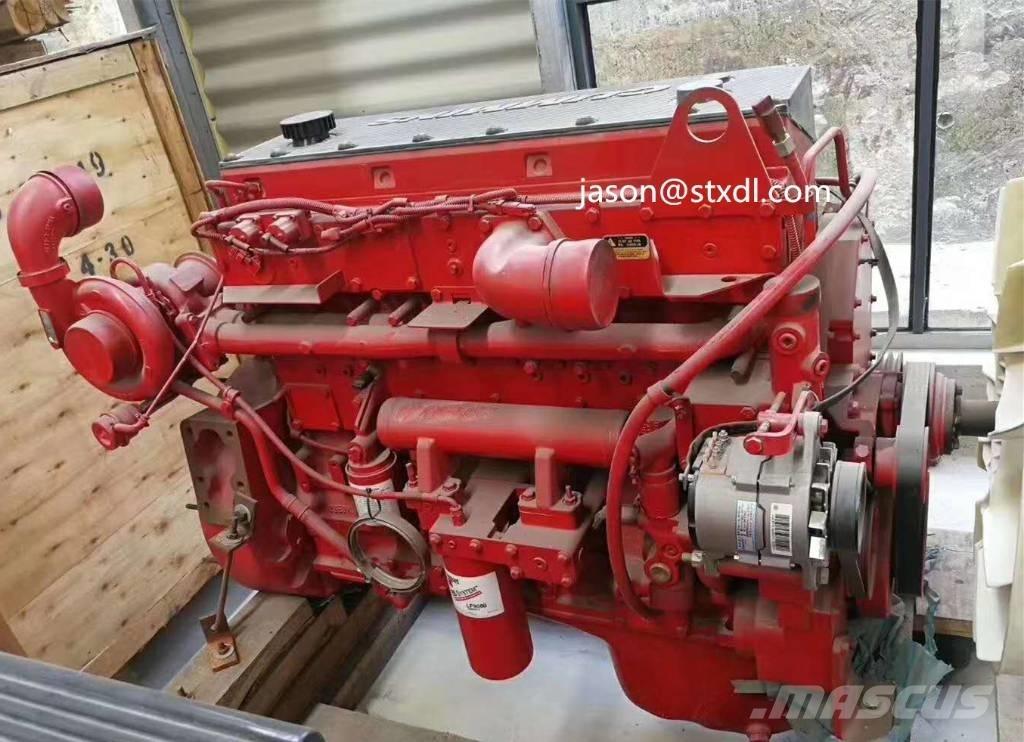

Cummins ISME308 Diesel Engine for Vehicle
General Information of Cummins ISME308 Diesel Engine for Vehicle
Engine Model ISME308
Engine Type 6 Cylinders, in Line
Displacement 10.8 L
Bore*Stroke(mm) 125 * 147
Compression Ratio 16.2:1
CPL Number -
Net Weight (with flywleel & alternator) 940 Kg
Overall Diemension(L*W*H) 1335mm*825mm*1159mm
Technical Specification of Cummins ISME308 Diesel Engine for Vehicle
Certification Euro II, III, IV or V
Aspiration Turbocharged & Intercooled
Fuel System Direct Injection Pump
Starting Method Electric Start
Cooling Method Water Cooled
Ignition Sequence 1-5-3-6-2-4
Performance Data of Cummins ISME308 Diesel Engine for Vehicle
Rated Power/Speed 226kW/308HP @ 1900rpm
Max.Torque/Speed 1450N.m @ 1200 rpm
Fuel Consumption @ Rated Power -
Idel Speed 600~800 rpm
Overhaul Mileage Over 1,000,000 kilometers
