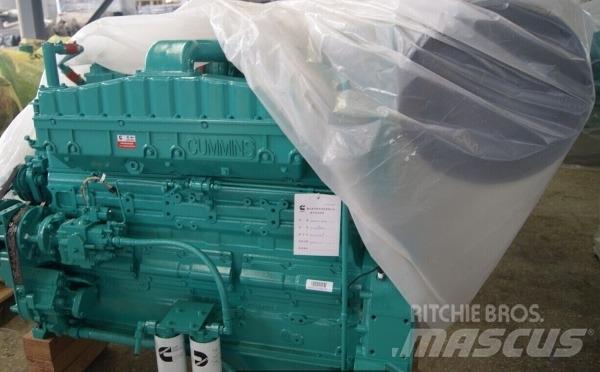

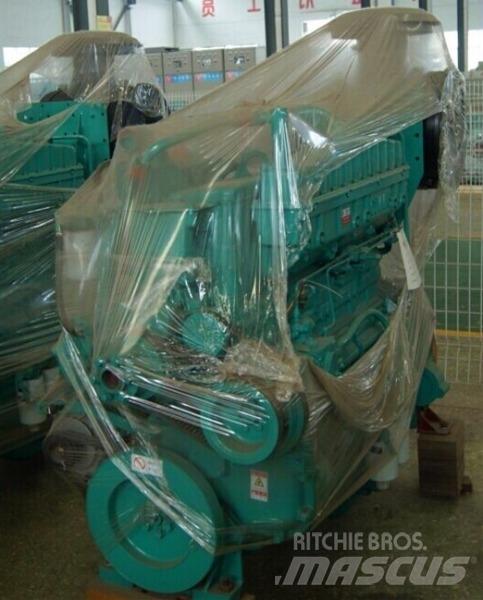

Cummins NTA855-G3
Price excl. VAT
Print
INFO
Category
Engines
Brand / model
Cummins NTA855-G3
Year
2018
Condition
New/unused
Location
Jining, Shandong, China
Country
China
General grade
1
2
3
4
5
Mascus ID
A1CEB442
PRICING
Select Currency
DETAILS
Customer asset number
NTA855-G3
Date of latest inspection
yes
Engine power
487 hp (358 kW)
Part ID
NTA855-G3
Full service history
Yes
Serial number
NTA855-G3
Transport weight
3,086 lbs
Transport dimensions (LxWxH)
66.93 x 43.31 x 74.8 inches
RPM
1500
Emission level
Stage II / Tier II
Condition Info/Guarantee
ISO9001
Production country
China
Delivery terms
FCA, CPT, FOB, CFR, CIF, EXW
Additional information
Cummins NTA855-G4 Generator Engine
General Information
Engine Model NTA855-G3
Engine Type 6 Cylinders, in Line
Displacement 14 L
Bore*Stroke(mm) 140 * 152
CPL Number 1436
Net Weight (with flywleel & alternator) 1317 KG
Overall Diemension(L*W*H) 2055mm*990mm*1535mm
Technical Specification
Fuel System PT Pump Direct Injection
Aspiration Turbocharged & Intercooled
Governing Rate ≤5%
Electrical System(Starter Motor/Alternator) 12V/24V
Engine Cooling Fluid 21L
Engine Oil Volume 39.7 L
Performance Data
Rated Power/Speed 358kW/487HP @ 1800rpm
Standby Power/Speed 399kW/543HP @ 1800rpm
Max Engine Oil Consumption 0.24 L/h
Fuel Consumption @ Continous Power 65L/ph
Fuel Consumption @ Rated Power 76L/ph
Fuel Consumption @ Standby Power 84L/ph
