Case 856 C AWD
Price excl. VAT
21
Favorite
Share
Save searchPrint
INFO
Category
Motor Graders
Brand / model
Case 856 C AWD
Year
2023
Hours
80 h
Condition
New/unused
Location
Wyszków, mazowieckie
Country
Poland
General grade
1
2
3
4
5
Mascus ID
DB91C429
PRICING
Select Currency
DETAILS
Gross weight
36,707 lbs
Engine power
194 hp (143 kW)
Additional information

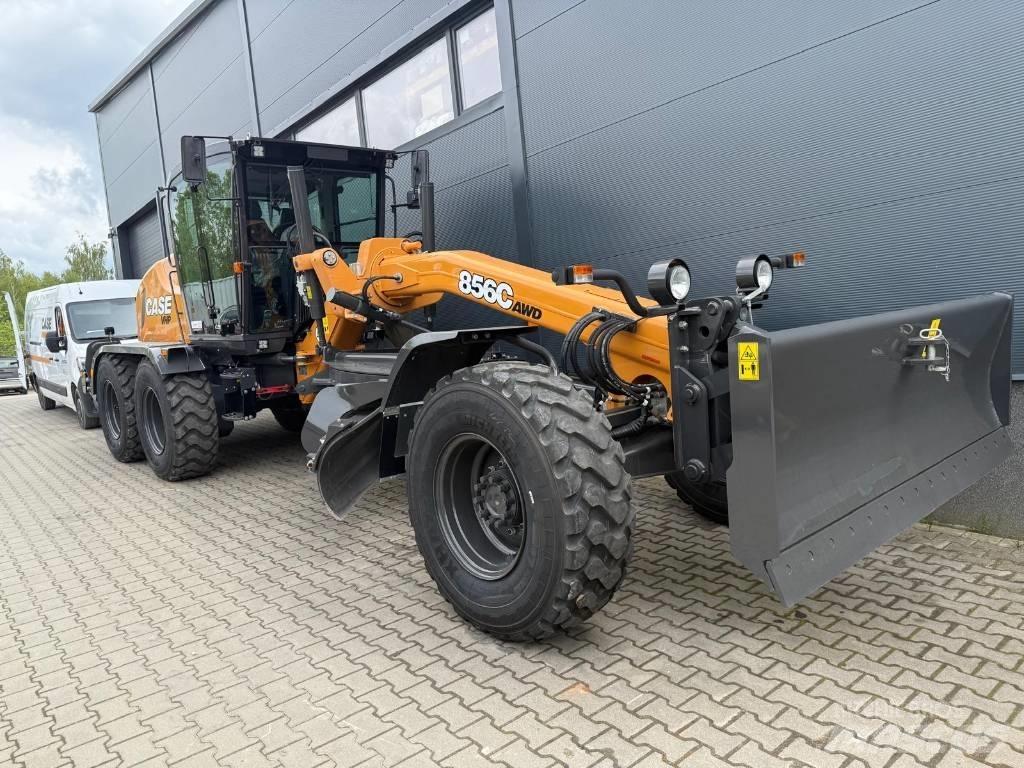

CASE 856C AWD
Patented FPT engine with Hi-eSCR2 technology with Ad-Blue. The CASE grader is the only grader on the market that meets the Stage V exhaust emission standards using only DOC+SCRoF (selective catalytic reduction) technology as a post-treatment system for exhaust gases. This solution guarantees a significant reduction in fuel consumption and maintenance and operating costs:
• - no DPF filter means no additional fuel consumption during work
• - no DPF filter means no need for periodic replacement
Drivetrain:
• Engine:
FPT - diesel, 6-cylinder, type N67 NEF, common rail, turbocharged intercooler capacity 6.7 l, meeting the latest Stage V exhaust emission standard; patented selective catalytic reduction system with Adblue
In gears 1-3 power - 129 kW (173 HP) according to ISO 14396/ECE R120
In gears 4-6 power - 142 kW (190 HP) according to ISO 14396;/ECE R120
Torque - 850 Nm at 1400 rpm
• Transmission:
Full Power Shift type providing the ability to change gear under load
Number of forward gears - 6
Number of reverse gears - 3
Torque converter with a ratio of 1.91:1
Pulling force 117 kN
Hydraulic system:
• Multi-piston pump with a flow of 126 l/min
• The “load sensing” system operating in a closed circuit with a pressure of 200 bar allows for very high precision of operation
• System capacity – 200 liters
Runner system:
• Hydraulically controlled steering system
• Six equal wheels with tires of size – 17.5 R25 XHA MICHELIN
• Wet disc brake system acting on four rear wheels
• Front axle with hydraulic camber adjustment and steering linkage
Axle oscillation - ± 15°
Wheel tilt - ± 20.3°
Frame turn - ± 28°
Ground clearance – 0.55 m
• Tandem rear axle:
Axle oscillation - ± 15°
Automatic No Spin differential lock (no slippage)
Slewing ring:
• Possibility of 360° rotation
• Slewing ring diameter - 1.35 m
• Closed slewing ring with internal lubrication of the slewing bearing, preventing dirt from entering
Electrical system and cabin:
• Voltage 24 V
• Alternator 90 A
• Battery 2 x 100 Ah
• Spacious cabin, low profile, comfortable ROPS/FOPS cabin equipped with air conditioning, LED work lights, adjustable steering column; comfortable, fully pneumatically adjustable operator's seat, doors on both sides of the cabin
• Reversing camera with monitor
• LED headlight package: 4 from the cabin + 4 working
• Warning light
• Reversing alarm (can be switched off)
• "JOYSTICK" CONTROL
• CASE SiteWatch telematics system with 3-year Advanced subscription - uses a state-of-the-art electronic module optionally installed in the machine to collect and compile information from a given machine and from GPS satellites
Weight of the machine ready for work - 16,600 kg
• Height 3,150 mm
• Length 10,044 mm
• Width 2,555 mm
Additional equipment:
• Rear ripper (5 teeth) with guard
• Front blade with parallel kinematics and mechanical indicator
• Middle blade 3.66 m wide and 0.61 m high (floating)
• Electric refueling pump
• Adapted to 3D levelling system (TRIMBLE, LEICA)
Price: €249,000Show more
