XCMG GR1803
Price excl. VAT
Print
INFO
Category
Motor Graders
Brand / model
XCMG GR1803
Year
2023
Condition
Demo
Country
China
General grade
1
2
3
4
5
Mascus ID
13EE1386
PRICING
Select Currency
DETAILS
Power type
Diesel
Gross weight
36,376 lbs
Cabin type
Enclosed cab
Steering
Wheel-
Emission level
Stage IV / Tier IV final
Engine
SC7H220.1G4
Engine power
220 hp (162 kW)
Engine manufacturer
XCMG
Top speed
38 km/h
Original color
Original
Transport dimensions (LxWxH)
357.09 x 103.35 x 134.65 inches
Tire brand
XCMG
Production country
China
Delivery terms
FCA, CPT, CIP, DAT, DAP, DDP, FAS, FOB, CFR, CIF, EXW
Accessories
Air conditioning
Battery disconnector
Joystick control
Windrow eliminator
Additional information

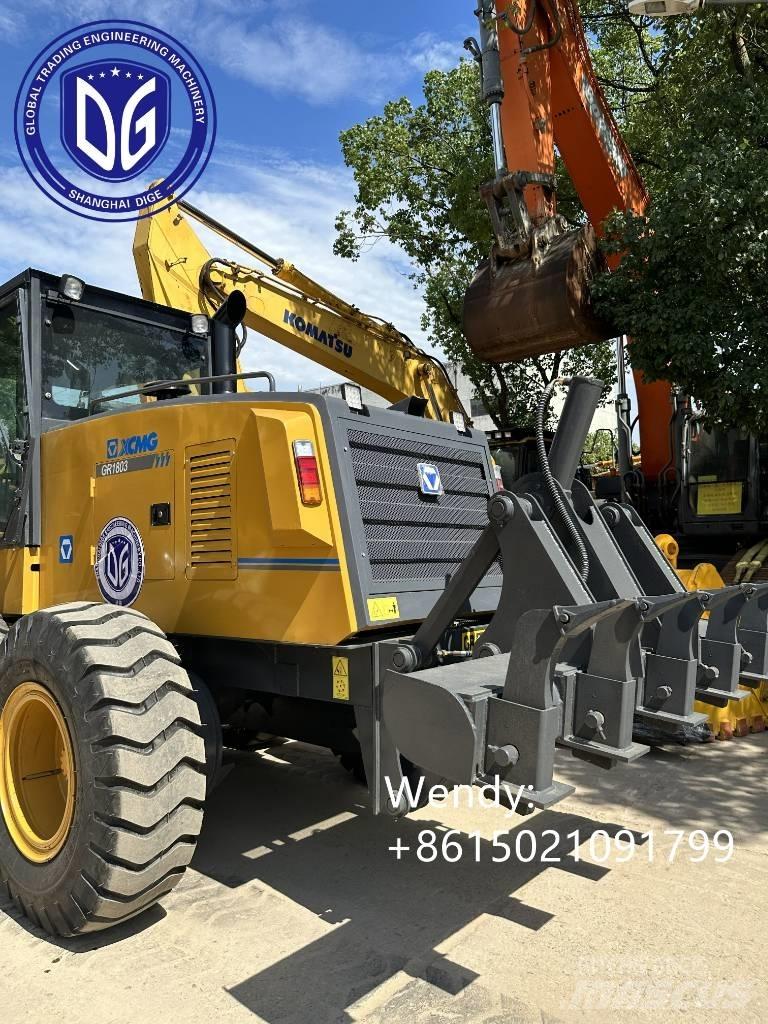

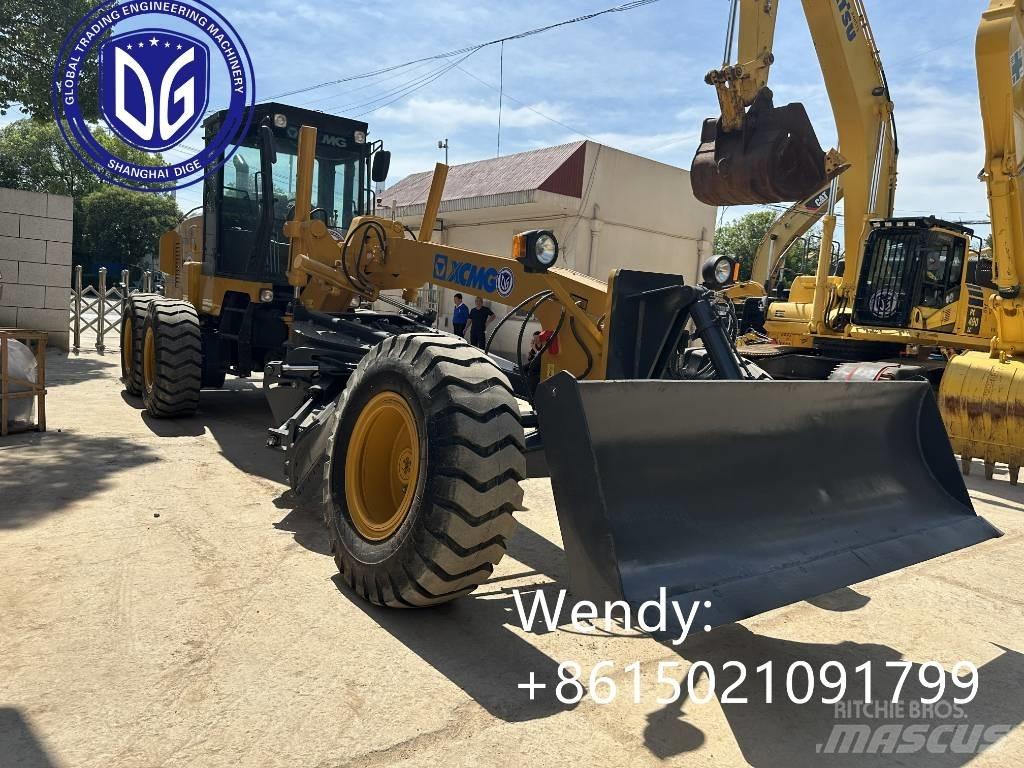

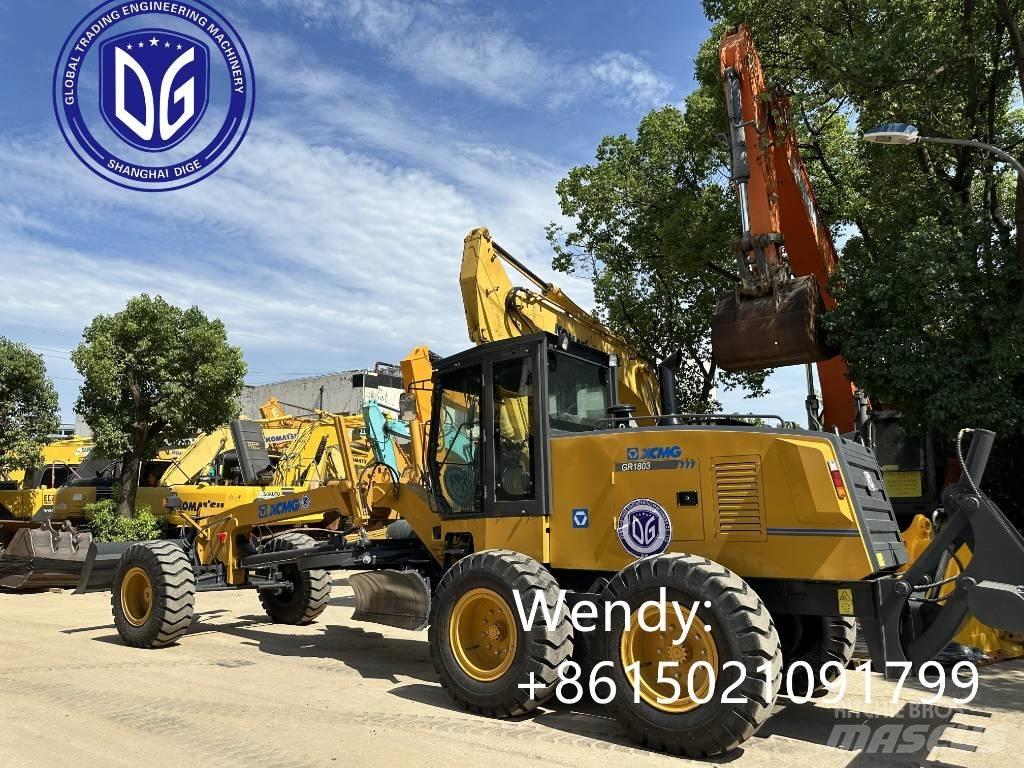

The XCMG GR1803 motor grader is a high - performing machine, popular among international customers. Powered by a Shangchai Stage IV variable - power engine, it offers a power output of 140 - 147 kW, ensuring strong torque at low speeds. This results in a quick start - up and acceleration, enabling efficient operations in various terrains.
The GR1803 features a 3.965 m long and 0.61 m high blade. With a maximum lift of 0.45 m and a digging depth of 0.5 m, it can handle large - scale grading tasks. The blade's 90 - degree tilt and adjustable cutting angle from 28° to 70° allow for flexible operations, adapting to different ground conditions.
The machine also offers energy - saving features. Its low - speed engine and optimized transmission system reduce fuel consumption by around 8%. Additionally, the on - demand hydraulic fan adjusts speed according to cooling needs, further improving fuel efficiency.
In terms of safety and reliability, the GR1803 has a globally optimized CAE structure. Its patented slewing bearing drive axle provides a longer service life. The single - cylinder large - steering - angle front axle, a XCMG - patented technology, combined with an articulated frame, ensures a small turning radius and enhanced maneuverability.
The GR1803 is suitable for a wide range of applications. It is ideal for road construction, including highway building and urban road renovation. In mining operations, it can level the ground for the installation of equipment and facilitate material transportation. It also performs well in land grading for large - scale construction projects, such as airports and industrial parks. Moreover, it can be used for snow removal in winter and trenching work in infrastructure projects.
The operator - friendly design of the GR1803 cannot be overlooked. The diamond - shaped cab has a six - point support shock - absorption system, and the optimized control mechanism reduces the operating force by 30%, providing a comfortable working environment. The large opening hood makes maintenance and servicing convenient.
