XCMG XCT12L5

Price excl. VAT

Images6Videos2

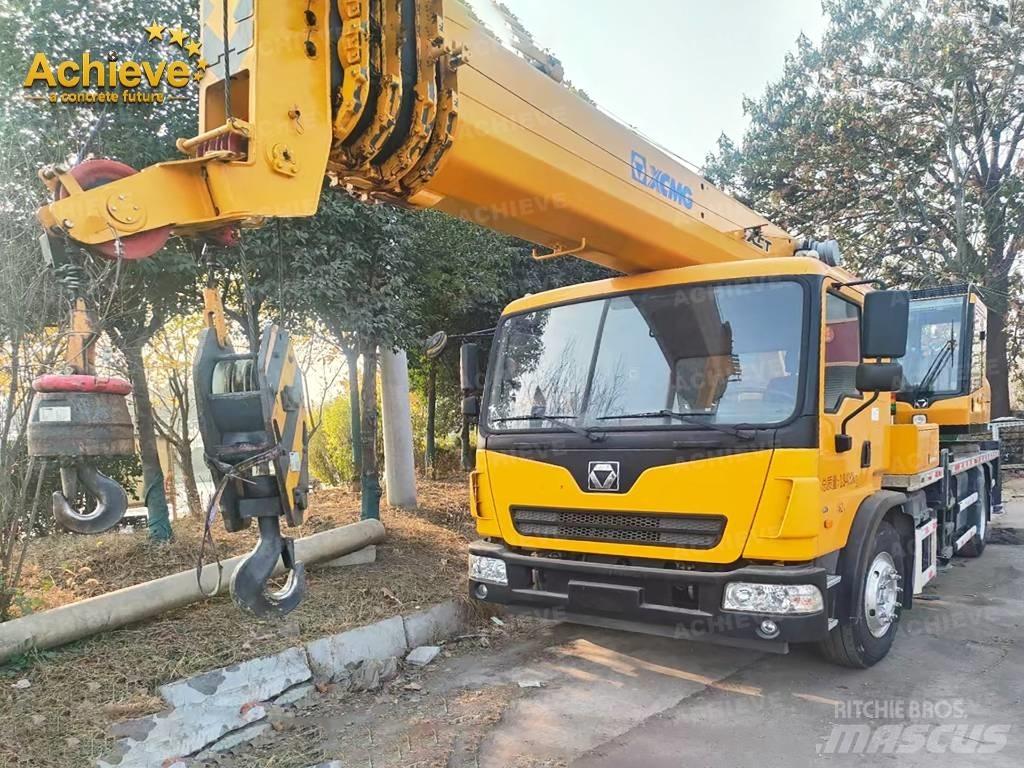

XCMG XCT12L5 Hoists and Material Elevators
XCMG XCT12L5 Hoists and Material Elevators
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Category
Hoists and Material Elevators
Brand / model
XCMG XCT12L5
Year
2022
Hours
1,248 h
Condition
Reconditioned,Demo
Country
China
General grade
1
2
3
4
5
Mascus ID
BA9F24BF

PRICING

Select Currency

DETAILS

Maximum lift height
82.0 feet
Maximum lift capacity
26,455 lbs
Serial number
XCT12L5
Gross weight
35,274 lbs
Emission level
Stage IIIA / Tier III
Original color
yellow
Transport dimensions (LxWxH)
1090025003.55 m
Production country
China
Delivery terms
FOB, CIF
Certificates
EPA, CE, TÜV
Additional information
Category Item Unit XCT12L4 Dimension Overall length mm 10900 Overall width mm 2500 Overall height mm 3550 Weight Total weight in travel kg 16000 Travel Max. travel speed km/h 90 Min. turning diameter m 18 Min. ground clearance mm 250 Approach angle ° 21 Departure angle ° 13 Max. grade ability % 41 Fuel consumption for 100km L 25 Main performance Max. rated total lifting capacity t 12 Min. rated working radius m 3 Turning radius at turntable tail m 2.57 Max. lifting torque kN.m 482.5 Base boom m 9.5 Max.main boom m 30.9 Max.main boom+jib m 38.1 Turning radius at turntable tail Counterweight mm 2570 Auxiliary winch mm 2910 Max. load moment Base boom t.m 48.25 Fully-extended boom t.m 27.6 Outrigger span(fully-extended) Longitudinal m 4.57 Hoist height Lateral m 5.5 Base boom m 9.5 Fully-extended boom m 30.9 Boom length Fully-extended boom + Jib m 38.1 Base boom m 9.45 Fully-extended boom m 30.5 Fully-extended boom + Jib m 30.5+7Show more
