Maeda CC423S-1 for sale - Sweden

ON REQUEST
ON REQUEST

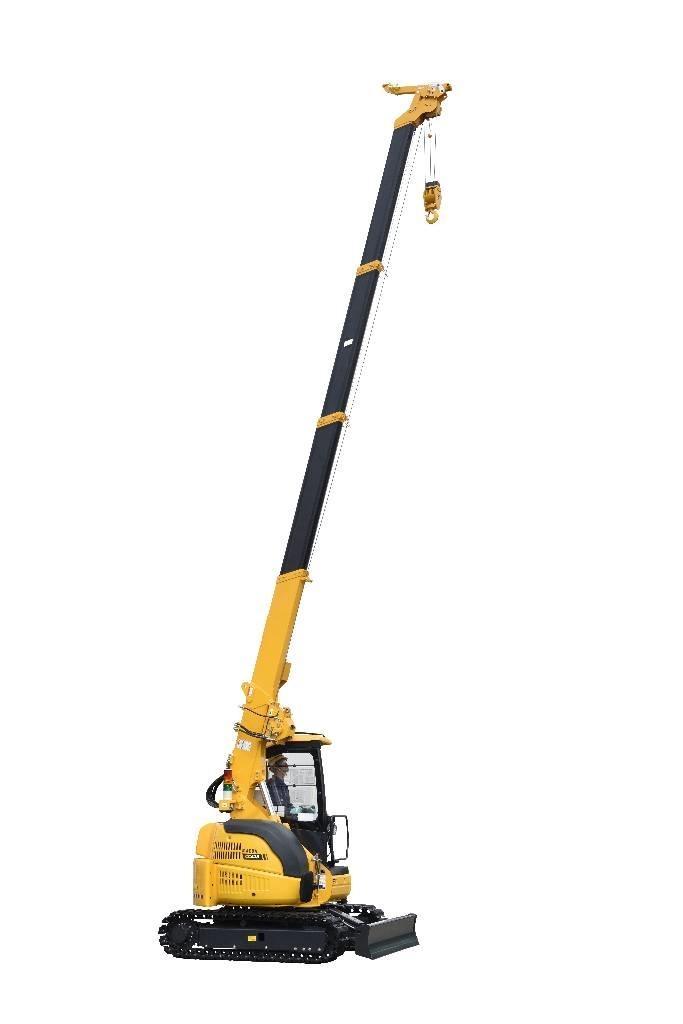

Maeda CC423S-1
Videos of Maeda CC423S-1

BASIC INFORMATION

CategoryMini cranes
Brand / modelMaeda CC423S-1
Year2023
Extra optionsNew/unused
LocationMÖLNLYCKE, Västra Götalands län
Country
Mascus ID2D871492
+ Show more details

PRICING

Price Excluding TaxOn Request

DETAILS

Condition level grade (1-5)
Gross weight9,700 lbs
Maximum lift capacity6,460 lbs
Boom length31.0 feet
Emission levelStage IV / Tier IV final
Engine manufacturerYANMAR
Maximum lift height31.0 feet
Transport dimensions (LxWxH)158.27x68.5x98.43
inches
Condition Info/Guarantee2 year
Front tires / undercarriage remaining100 %
Rear tires remaining 100 %
Production countryJapan
Attachments850kg Searcher Hook
Additional information1465kg Pick and Carry Duty
Blade
Programmable Moment Limiter
4 Fall / 2 Fall Hook Block
Tilt Alarm
Powerful Winch with Hydraulic Disc Brake
Minimal Tail Swing
Optional 850kg Searcher Hook
Data Logger
Pilot Pressure Travel Control
Equivalent to EPA Tier 4 Engine
New 7 inch Multi Monitor
2 Year Warranty

Crane Capacity – 2.93t x 1.5m
Max. Working Radius – 8.38m x 0.20t
Max. Lifting Height – 9.46m
Max. Reach Below Ground – -15.5m (4 falls)
Pick & Carry Capacity – 1,465kg
Travel Speed – 0-4.6km/h
Travel Ground Pressure – 43.5kpa [0.44kgf/cm2]
Engine – YANMAR 3TNV88F-EPMBA / Diesel
Engine Rated Output – 17.5kw/2,400rpm
Dimensions – 4,020mm (L) x 1,740mm (W) x 2,495mm (H)
Tail Swing – 980mm
Machine Weight – 4,400kg (Rubber Pads : +90kg)
DocumentsMaeda-CC423S-1-Catalog-Kranlyft.pdf
