Unic B-350.1V
Price excl. VAT
On Request
Print
INFO
Category
Mini cranes
Brand / model
Unic B-350.1V
Year
2020
Hours
450 h
Location
Duisburg, Nordrhein-Westfalen
Country
Germany
General grade
1
2
3
4
5
Mascus ID
ECB00724
DETAILS
Amount of previous owners
1
Gross weight
5,379 lbs
Maximum lift capacity
7,716 lbs
Min boom length
8.30 feet
Boom length
28.4 feet
Max lifting capacity at end of jib
1,764 lbs
Jib length of crane
28.4 feet
Maximum lift height
39.4 feet
Hook height of crane - horizontal jib
28.9 feet
Hook height of crane - luffed jib
8.53 feet
Transport dimensions (LxWxH)
0.11 x 24.8 x 0.05 inches
Production country
Japan
Delivery terms
FCA, CFR, EXW
Certificates
CE, TÜV
Attachments
mechanische Multifunktionale Klappspitze
mit Kopfrolle und Wirbelhaken
Kurzspitze 0,30 m, max. Traglast 700 kg
Hakenflasche 2-rollig, max. Traglast 3,5 t
Einseilhaken (Bommel), max. Traglast 900 kg
Accessories
Hook blocks
Documents
Additional information

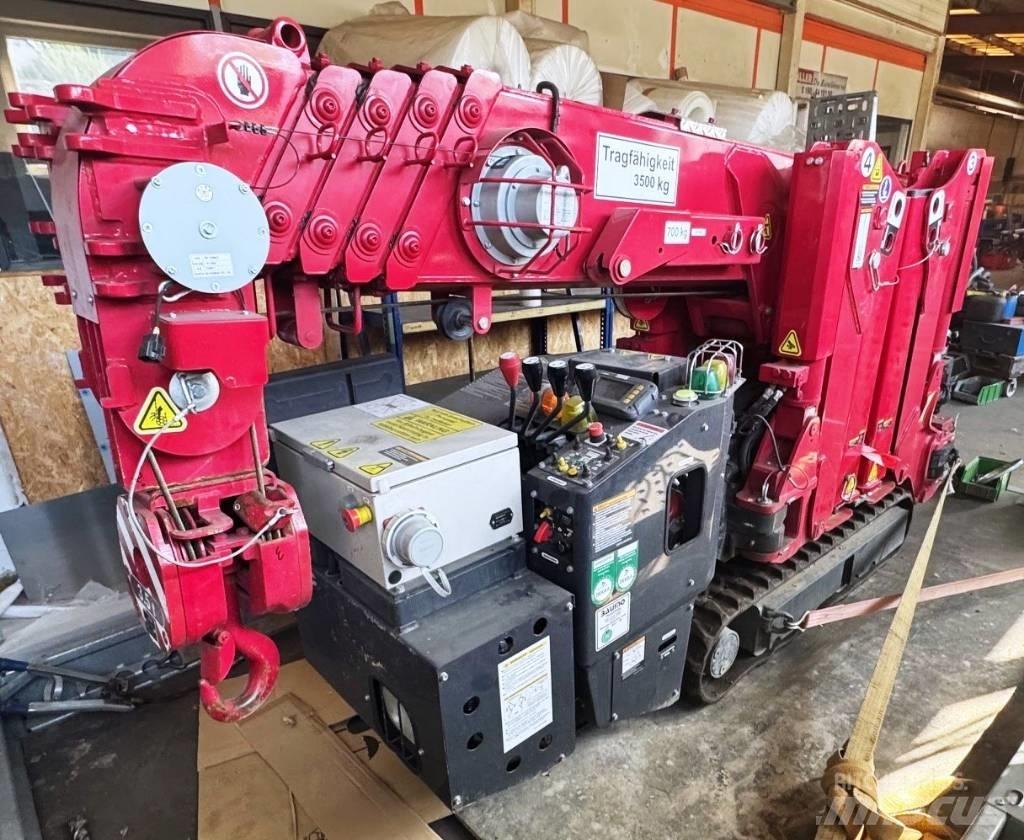

UNIC spider crane B-350.1V, year 2020, used
450 working hours, petrol engine, electric drive,
variable outrigger system, mechanical multifunctional swing-away jib
TECHNICAL DETAILS:
max. lfiting capacity 3,5 t x 1,4 m
max. working range 10,0 m
max. lifting height 12,0 m
max. outrigger base 3,9 x 3,9 m
DIMENSIONS & WEIGHT
Length 2.690 mm, width 630 mm, height 1.375 mm
total weight 2.440 kg
CRANE EQUIPMENT:
mechanical multifunctional swing away jib, length 1,3 /1,9 / 2,6 m,
max. loading capacity 700 / 500 / 250 kg, angel 10°, 45°, 80°
with sheave head usable as jib extenstion
with swivel hook usbale as assembly jib
0,30 m short jib with swivel hook, max. loading capacity 700 kg
one winch
radio remote control, multi functional
petrol engine 13 kW
electric drive 380 V, 25 m cable
Safe Load Indicator System Rayco Wylie Sysstem i4500
working range limiter, height range limiter
360° slewing range unlimited
variable outrigger system, computer controlled
drive and operation levels on crane
working light, black rubber tracks, (non-marking tracks as option available)
2-sheave hook block, max. capacity 3,5 t
singel line hook, max. capacity 900 kg
searcher hook max. capacity 900 kg
full documentation available:
operation manual, load charts, CE certfificate of conformity, spare part list
