Unic B-506-5.2

Price excl. VAT

On Request

Compnay LOGO
Images2

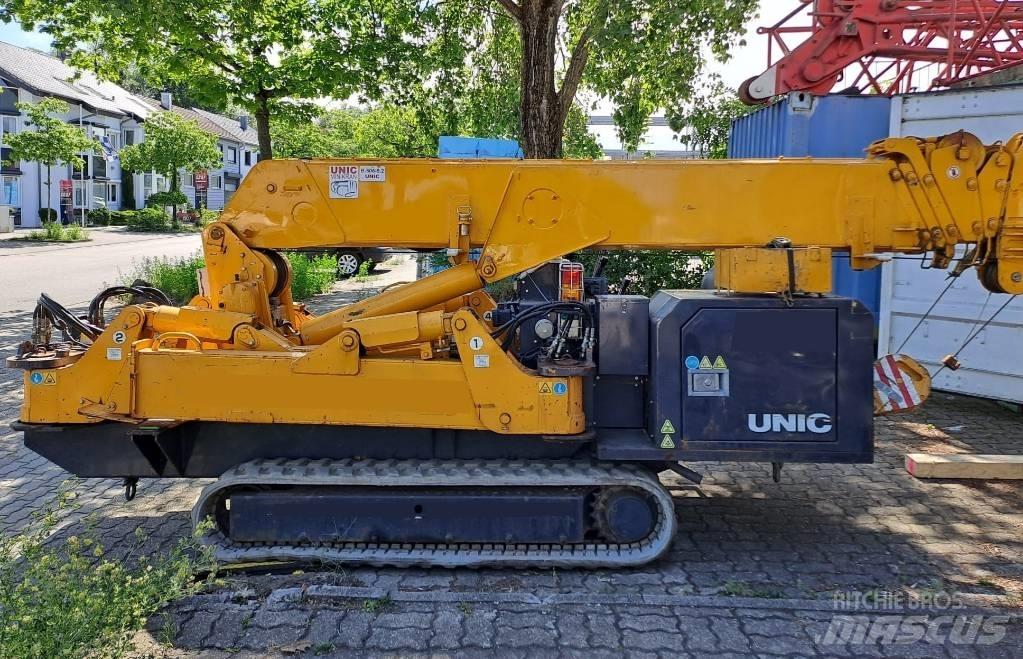

Unic B-506-5.2 Mini cranes
Unic B-506-5.2 Mini cranes
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Category
Mini cranes
Brand / model
Unic B-506-5.2
Year
2016
Hours
767 h
Location
Duisburg, Nordrhein-Westfalen
Country
Germany
General grade
1
2
3
4
5
Mascus ID
470353FC

DETAILS

Amount of previous owners
1
Gross weight
11,354 lbs
Maximum lift capacity
11,023 lbs
Boom length
51.5 feet
Max lifting capacity at end of jib
1,984 lbs
Jib length of crane
51.5 feet
Maximum lift height
62.3 feet
Hook height of crane - horizontal jib
52.5 feet
Hook height of crane - luffed jib
9.84 feet
Transport dimensions (LxWxH)
191.73 x 55.12 x 80.12 inches
Tire brand
NM-Antriebsketten
Production country
Japan
Delivery terms
FCA, CFR, EXW
Certificates
CE, TÜV
Accessories
Hook blocks
3-rollig, max. 5,0 t 1-rollig, max. 1,7 t Einseilhaken, max 0,9 t
Additional information
UNIC mini crawler crane, model B-506-5.2, year 2016, (used) only 767 h working hours incl. German DEKRA approval max. loading capacity 5,0 t TECHNICAL DETAILS: Max. Loading 5.0 t x 2.0 m Max. Hook height 19.0 m Max. Working area 16.5 m Dimensions: length 4870 mm (L) x 1400 mm (W) x 2035 mm (H) Weight approx. 5.150 kg STANDARD EQUIPMENT: 3.93 – 15.71 m telescopic main boom fully hydraulic Boom head with 3-sheaves 3,0 m folding jib with sheave head and searcher hook, max. 850 kg, hydr. adjustable 0-20° 1,0 m jib, max. 1,7 t, hydr. adjustable 0-20° 1x hoist winch German rope, low-spin, fine braided 360 ° rotation range (continuous), Diesel engine 18 kW (24,5 HP) Electric drive 380 V (AC 50/60 Hz, power 7,5 kW) with cable 50,0 m Radio remote control Safe load indicator Rayco Wylie Systems i4500 Variable footprint, computer controlled, variable positioning of each outrigger length (mininum, half, maximum), automatic detection of the outrigger position and calculation of the max. load of each outrigger Overwinding alarm, computer controlled intelligent voice warning system working lights, driver´s seat, Hydrostatic drive, step-less forward and reverse Speed 0 – 3,0 km/h, Track ground length 1.800 mm, Track ground width 300 mm Track ground pressure 0,46 kg/cm2 Hook block 3-sheaves, max. loading capacity 5,0 t Hook block 1-sheave, max. loading capacity 1,7 t Ball, max. loading capacity 900 kg Superstructure yellow, Chassis Black-grey Ideal for limited work areas or confined access to the work area and an intelligent solution and alternative to the conventional mobile crane (large crane) Various mini crane models with lifting capacities of 0.99 - 10.0 t lifting heights up to 31.0 m Used mini crane models on demand until 8.0 t loading capacity.Show more
