INFO

Category
Mini Excavators <7t (Mini Diggers)
Brand / model

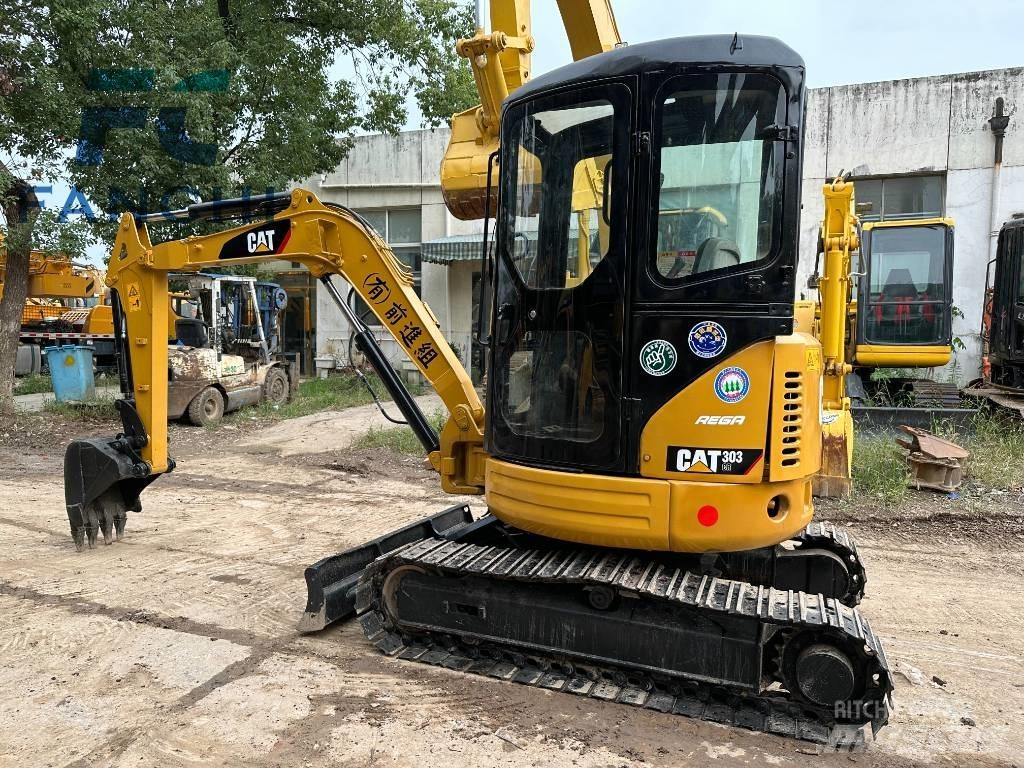

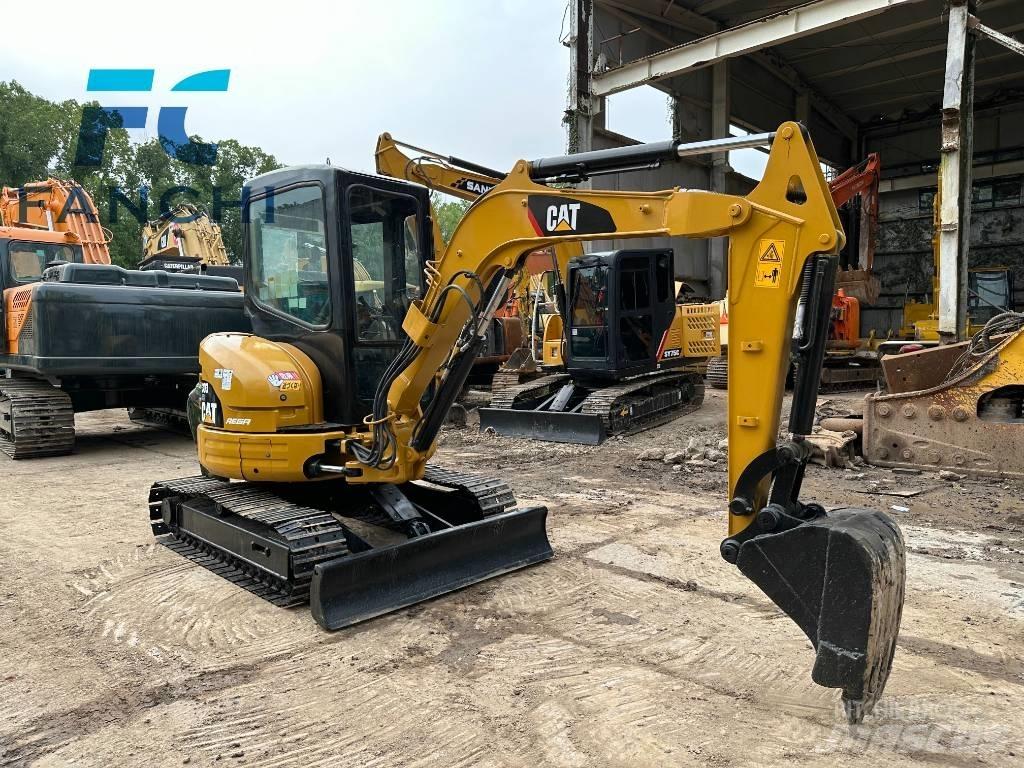

CAT 303 CR
Year
2023
Hours
400 h
Condition
Remanufactured
Country
China
General grade
1
2
3
4
5
Mascus ID
A2D0DB59

PRICING

Select Currency

DETAILS

Power type
Diesel
Amount of previous owners
1
Undercarriage condition
good
Gross weight
7,822 lbs
Output of the auxiliary hydraulics
66 l/min
Emission level
Stage 5/Tier 4 Final
Track width
11.8 inches
Bucket capacity
0.12 m3
Transport dimensions (LxWxH)
473017802.5 m
Original color
YELLOW
Engine
Cat C1.8
Engine power
32.1 hp (23.6 kW)
Engine manufacturer
japan
Tire brand
original
Condition Info/Guarantee
good
Production country
Japan
Delivery terms
FOB, CIF, EXW
Certificates
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME
Attachments
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Accessories
Manual / mechanic quick coupler
Hammer/shear hydr. circuit
Air conditioning
Diesel heater
Show more
Additional information
The following are some parameters of the Caterpillar CAT303.5CR excavator: - **Overall Dimensions of the Machine** - Total transportation length: 4730mm, total transportation width: 1780mm, total transportation height: 2500mm. - Track shoe width: 300mm, track ground contact length: 2220mm. - Rear swing radius: 890mm. - **Operating Weight and Capacity** - The operating weight of the whole machine is approximately 3548 - 3770kg. - Bucket capacity: 0.12m³. - Fuel tank capacity: 46L, hydraulic oil tank capacity: 42.3L, engine oil change volume: 7L, coolant volume: 5.5L. - **Performance Parameters** - Engine model: Cat C1.8, rated power: 23.6kW. - Travel speed (high/low): 4.6/2.6 km/h, swing speed: 9rpm. - Bucket digging force: 33kN, stick digging force: 18.9kN. - Maximum drawbar pull: 31kN. - **Working Range** - Maximum digging radius: 5200mm, maximum digging radius at the ground level: 5060mm. - Maximum digging depth: 2880mm, maximum vertical digging depth: 2320mm. - Maximum digging height: 5030mm, maximum unloading height: 3640mm.Show more

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 China
