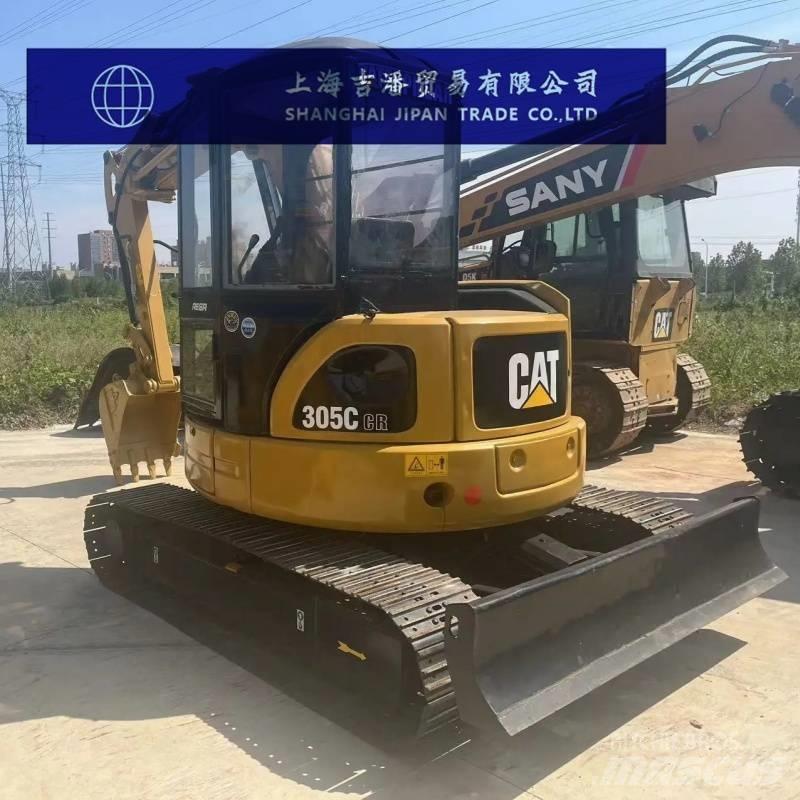

CAT 305C
Price excl. VAT
Print
INFO
Category
Mini Excavators <7t (Mini Diggers)
Brand / model
CAT 305C
Year
2022
Hours
1,568 h
Country
China
General grade
1
2
3
4
5
Mascus ID
DEA30BD9
PRICING
Select Currency
DETAILS
Power type
Diesel
Date of latest inspection
2025-06-13
Amount of previous owners
1
Undercarriage condition
98%
Gross weight
13,228 lbs
Emission level
Stage V / Tier V
Track width
23.6 inches
Bucket capacity
0.22 m3
Transport dimensions (LxWxH)
227.91 x 86.85 x 100 inches
Original color
original
Engine
original
Engine power
46.4 hp (34.1 kW)
Engine manufacturer
original
Condition Info/Guarantee
1 year
Delivery terms
FCA, FOB, CFR, CIF, EXW
Certificates
EPA, CE
Attachments
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Nina
Whatsapp: +86 18055199047
Mobile:+86 18055199047
Wechat:18055199047
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Accessories
Additional information
卡特彼勒CAT@305小型液压挖掘机 参数配置
规格
动力传统动力
厂商合资/进口
铲斗反铲
吨位(吨)5
整机工作重量(kg)5400
铲斗宽度(mm)766.0
铲斗容量(m³)0.22
动臂长度(mm)3200.0
斗杆长度(mm)1500.0
性能
回转速度(rpm)10.5 min-1
回转扭矩(Nm)13.9 N·m
行走速度(km/h)4.3/2.8
爬坡能力(%)50
铲斗挖掘力(kN)35.0
斗杆挖掘力(kN)27.2
最大牵引力(kN)40.2
动力系统

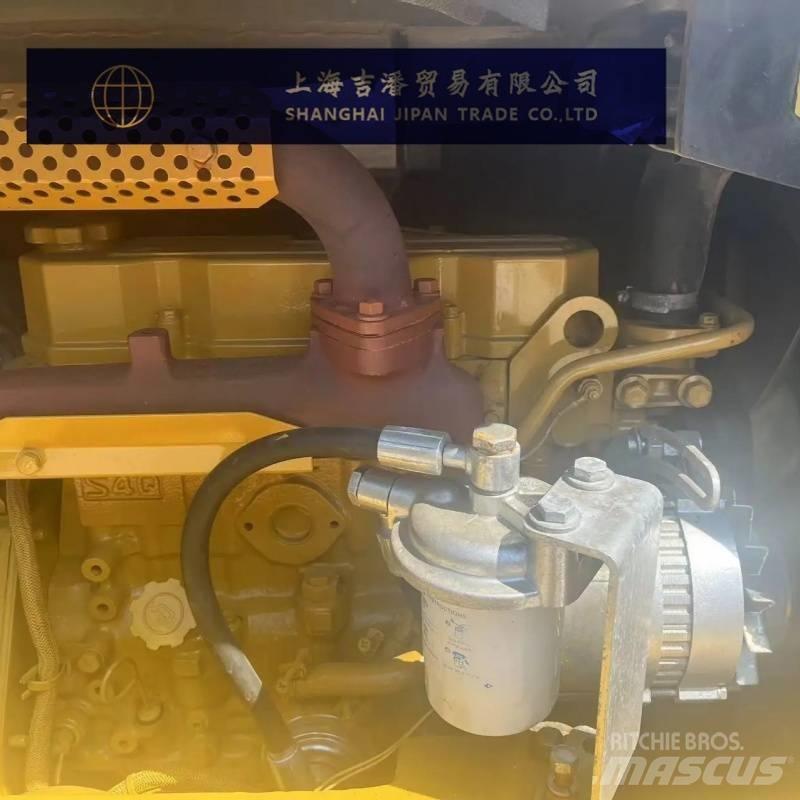

发动机型号Cat C2.4 DI
额定功率(kw/rpm)34.1
排量(L)2.4
缸径×行程(mm)87.0*102.4
液压系统
主泵类型配备可变排量活塞泵的负载感应液压系统
主泵最大流量(l/min)140.0
油类容量
燃油箱(L)78
液压油箱(L)58
液压系统(L)85
发动机油更换量(L)9.5
冷却液(L )9.8
主体尺寸
运输总长度(mm)5765.0
运输总宽度(mm)1950.0
运输总高度(mm)2540.0
履带总长度(mm)2440.0
履带板宽度(mm)400.0
履带轨距(mm)1550.0
最小离地间隙(mm )628.0
支重轮中心间距(mm)1920.0
后端回转半径(mm )1580.0
作业范围
最大挖掘半径(mm)5955.0
停机面最大挖掘半径(mm)5830.0
最大挖掘深度(mm)3720.0
最大挖掘高度(mm)5460.0
最大卸载高度(mm)3835.0
最大垂直挖掘深度(mm)2210.0
推土板宽度×高度(mm)1950.0*360.0
推土铲举升或推深(mm)365.0/480.0
