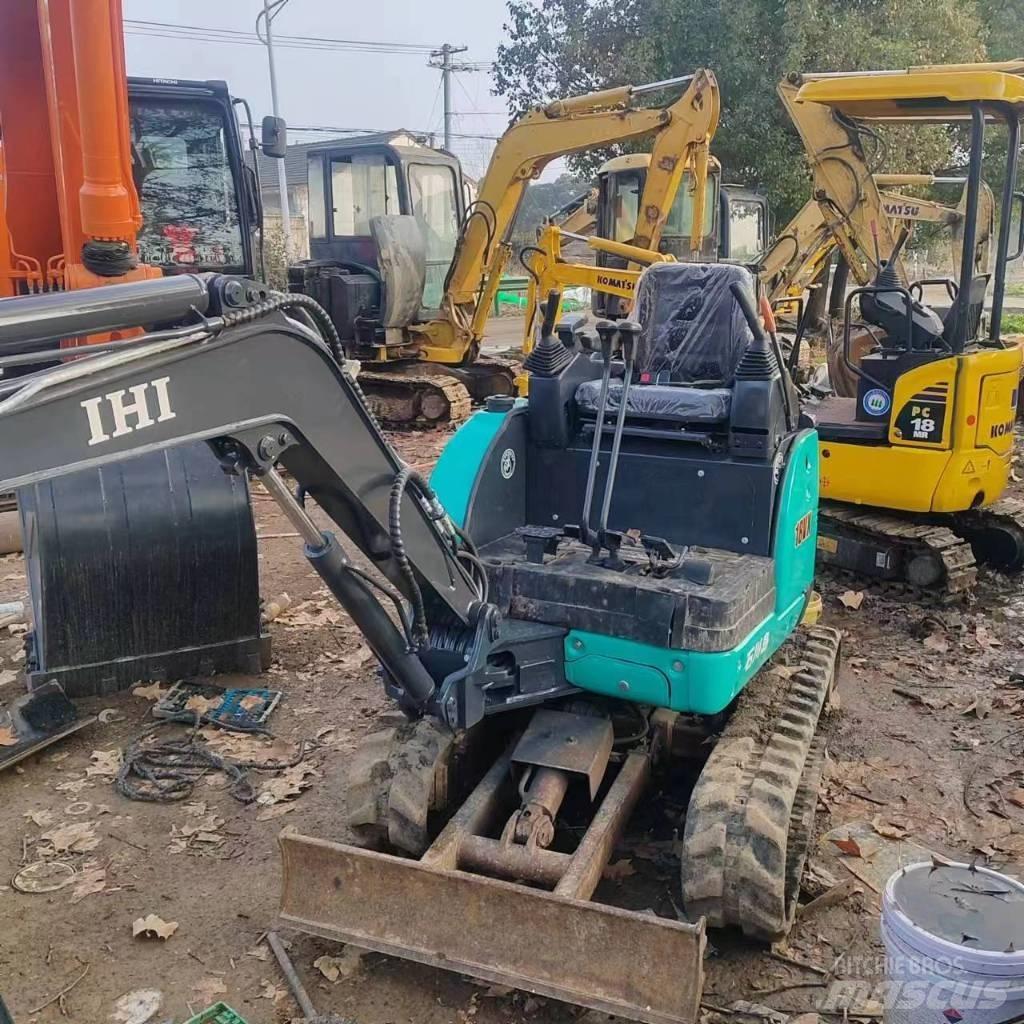

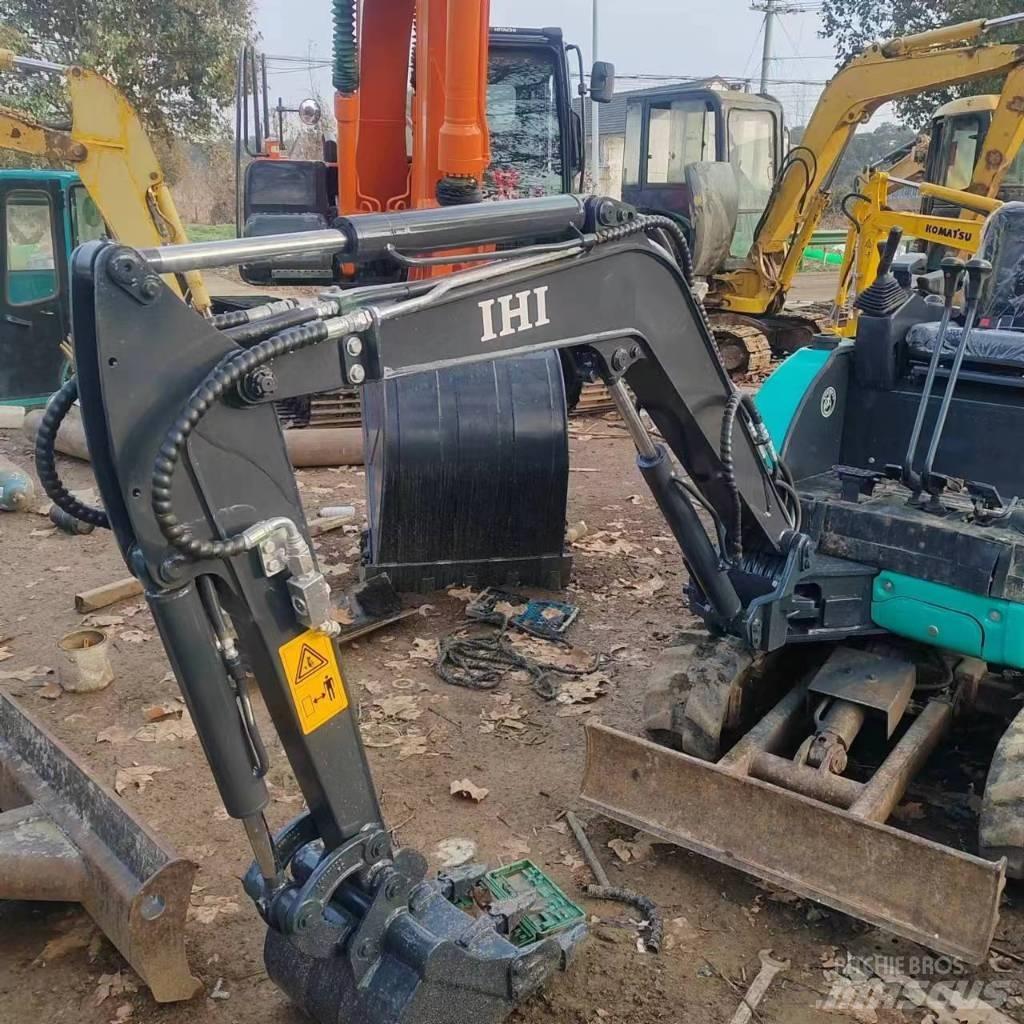

IHI 18VX
Price excl. VAT
Print
INFO
Category
Mini Excavators <7t (Mini Diggers)
Brand / model
IHI 18VX
Condition
Reconditioned
Country
China
General grade
1
2
3
4
5
Mascus ID
6A639EF8
PRICING
Select Currency
DETAILS
Power type
Diesel
Date of latest inspection
2025-02-07
Amount of previous owners
1
Undercarriage condition
good condition
Gross weight
4,409 lbs
Track width
51.2 inches
Bucket capacity
0.06 m3
Transport dimensions (LxWxH)
3.38/0.98/2.33 m
Original color
green
Engine
Yanmar 3TNV70
Engine power
14.3 hp (10.5 kW)
Engine manufacturer
yanmar
Condition Info/Guarantee
good condition
Production country
Japan
Delivery terms
FCA, FAS, FOB, CIF, EXW
Certificates
EPA, CE, ANSI, AS
Additional information
Main Performances:
·Rotation speed(rpm):9.5
·Rotating torque(N.m):4.0/2.1(high/low)
·Gradeability(%):58
·Grounding specific pressure(kPa):28.5
·Digging force of bucket(kN):16
Hydraulic System:
·Maximum flow rate of main pump(L/min):17.2×2+12
·Main overflow set pressure(MPa):20.6
Working Range:
·The maximum excavating radius(mm):3760
·The maximum excavating depth(mm):2100
·The maximum excavating height(mm):3610
·The maximum unloading height(mm):2560
·The maximum vertical excavating depth(mm):1770
Oil Capacity:
·Fuel tank volume(L):20
HEFEI XIANMING CONSTRUCTION MACHINERY CO.,LTD.
中国安徽省合肥市包河区滨湖区中山路1522号佳源都市小区美泉宫26幢及配套商业2幢702室 230041 合肥市 安徽 China
