Kubota U 15-3 S
Price excl. VAT
Print
INFO
Category
Mini Excavators <7t (Mini Diggers)
Brand / model
Kubota U 15-3 S
Country
China
General grade
1
2
3
4
5
Mascus ID
29470657
PRICING
Select Currency
DETAILS
Date of latest inspection
2025-02-07
Amount of previous owners
1
Undercarriage condition
perfect
Gross weight
3,858 lbs
Emission level
Stage IIIA / Tier III
Track width
9.06 inches
Bucket capacity
0.04 m3
Transport dimensions (LxWxH)
3.575/0.99/2.25 m
Original color
blue,yellow
Dipper / stick length
17.7 inches

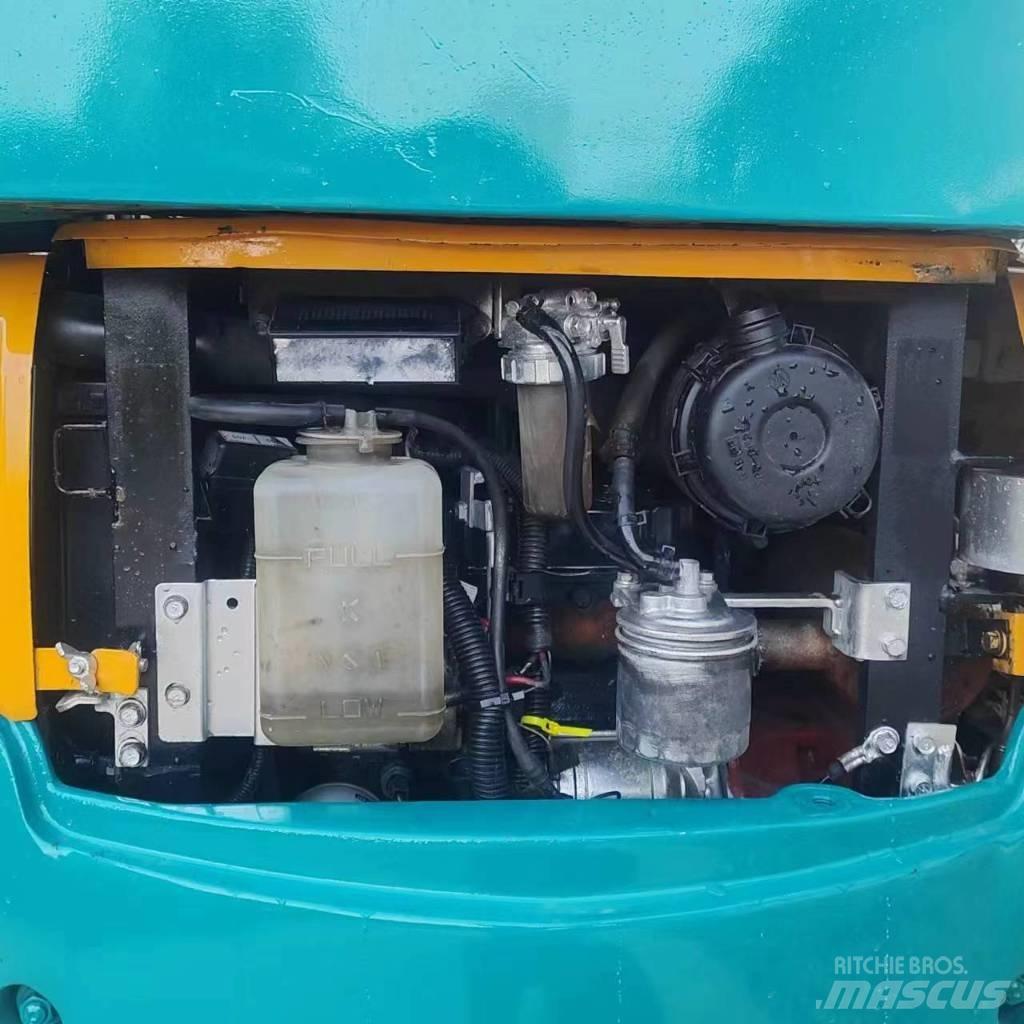

Engine
D782-E2
Engine power
13.1 hp (9.60 kW)
Engine manufacturer
kubota
Condition Info/Guarantee
perfect
Production country
Japan
Delivery terms
FCA, FOB, CFR, CIF, EXW
Certificates
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME
Additional information
Main Performances:
·Travelling speed(km/h):2.2/4.3
·Swing speed(r/min):8.7
·Gradeability(%):15.2
·Digging force of bucket(kN):15.2
Working Range:
·The maximum excavating height(mm):3540
·The maximum unloading height(mm):2440
·The maximum excavating depth(mm):2310
·The maximum excavating radius(mm):3900
·The maximum vertical excavating depth(mm):1910
Boundary Dimension:
·Track length(mm):1585
·Wheel base of track(mm):1010
·The minimum rotation radius of the rear end(mm):620
·The minimum ground clearance(mm):145
Oil Capacity:
·Fuel tank volume(L):18
HEFEI XIANMING CONSTRUCTION MACHINERY CO.,LTD.
中国安徽省合肥市包河区滨湖区中山路1522号佳源都市小区美泉宫26幢及配套商业2幢702室 230041 合肥市 安徽 China
