Category
Mini Excavators <7t (Mini Diggers)
Brand / model

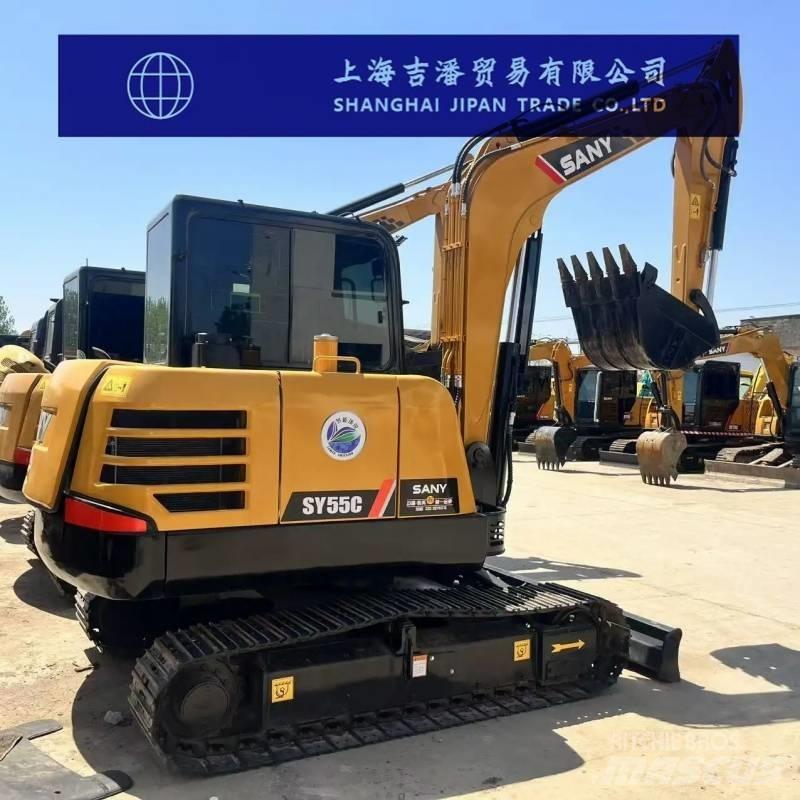

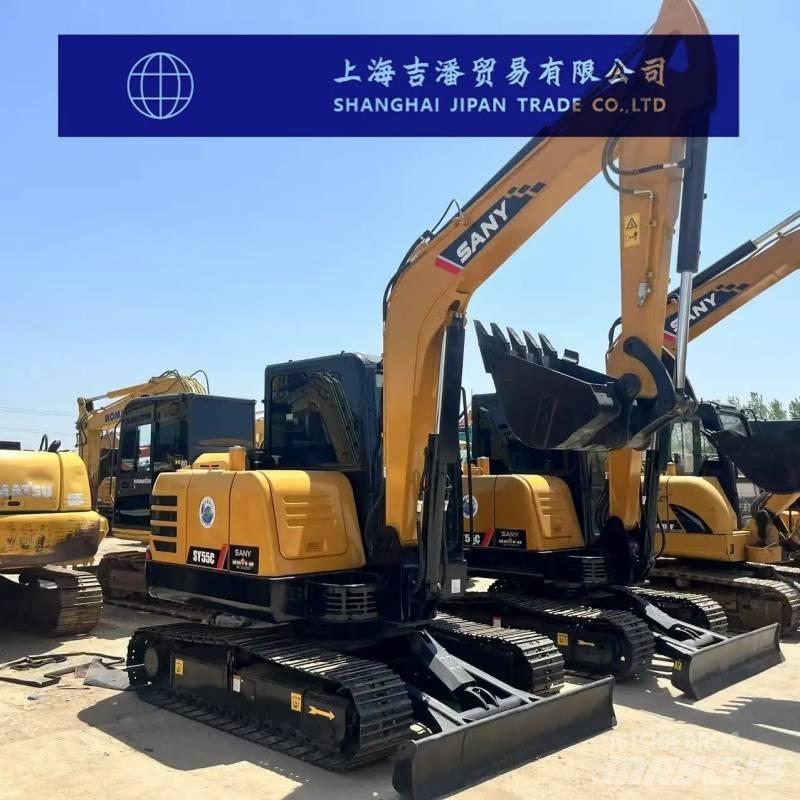

Sany SY 55 C
Year
2024
Hours
500 h
Country
China
General grade
1
2
3
4
5
Mascus ID
C5CEDA61

PRICING

Select Currency

DETAILS

Customer asset number
1
Serial number
1
Power type
Diesel
Date of latest inspection
2025-07-01
Amount of previous owners
1
Undercarriage condition
Good Condition
Gross weight
12,743 lbs
Registration number
1
Emission level
Stage V / Tier V
Track width
15.8 inches
Bucket capacity
0.21 m3
Transport dimensions (LxWxH)
233.27 x 78.94 x 102.17 inches
Original color
Original
Engine
Original
Engine power
49.0 hp (36 kW)
Engine manufacturer
Original
Condition Info/Guarantee
1 Year
Production country
China
Delivery terms
FCA, FOB, CIF, EXW
Certificates
EPA, CE
Attachments
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.
Accessories
Twig wire box
Air conditioning
Additional hydraulics
Rubber tracks
Show more
Additional information
Parameter configuration of Sany SY55C excavator Specification Power Traditional Power Domestic manufacturer Bucket backhoe Tonnage (tons)5 The working weight of the entire machine (kg) is 5780 Bucket capacity (m³)0.1-0.28(0.21) Performance Rotational speed (rpm) : 9.6 Walking speed (km/h) : 3.73/2.4 Climbing ability (%)70% (35°) The ground pressure (Kpa) is 32.75 Bucket digging force (kN)45 Bucket shaft digging force (kN)33 Power system Engine model: 4JG1 Rated power (kw/rpm) : 36/2100 Maximum torque (N.m)175/1800 Displacement (L)3.059 Number of cylinders (4) The cooling method is water cooling Oil capacity Fuel tank (L)130 Hydraulic oil tank (L)85 Engine oil change volume (L) : 9.6 Main body size Total transportation length (mm) : 5925 Total transportation width (mm)2005 The total transportation height (mm) is 2595 The total length of the track (mm) is 2545 Track plate width (mm) : 400 Track gauge (mm)1600 Minimum ground clearance (mm) : 330 The rear end turning radius (mm) is 1640 Number of idler wheels (on one side) (5 Number of idler wheels (single side) (units)1 Number of track plates (single side) (pieces)40 Scope of work Maximum excavation radius (mm) : 6090 Maximum excavation depth (mm) : 3815 Maximum excavation height (mm) : 5690 Maximum unloading height (mm) : 3930 Maximum vertical excavation depth (mm) : 3070 The bulldozer shovel lifts or deepens (mm)385/380
