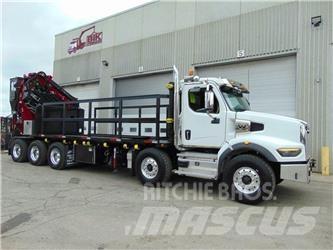

BIK FC-110 for sale - the United States

ON REQUEST
ON REQUEST

BASIC INFORMATION

CategoryOther Cranes and Lifting Machines
Brand / modelBIK FC-110
ConditionNew/unused
LocationMilford, Massachusetts
Country
United States
Mascus ID6A58B12B

PRICING

Price Excluding TaxOn Request

DETAILS

Condition level grade (1-5)
Additional informationBOOM DETAILS

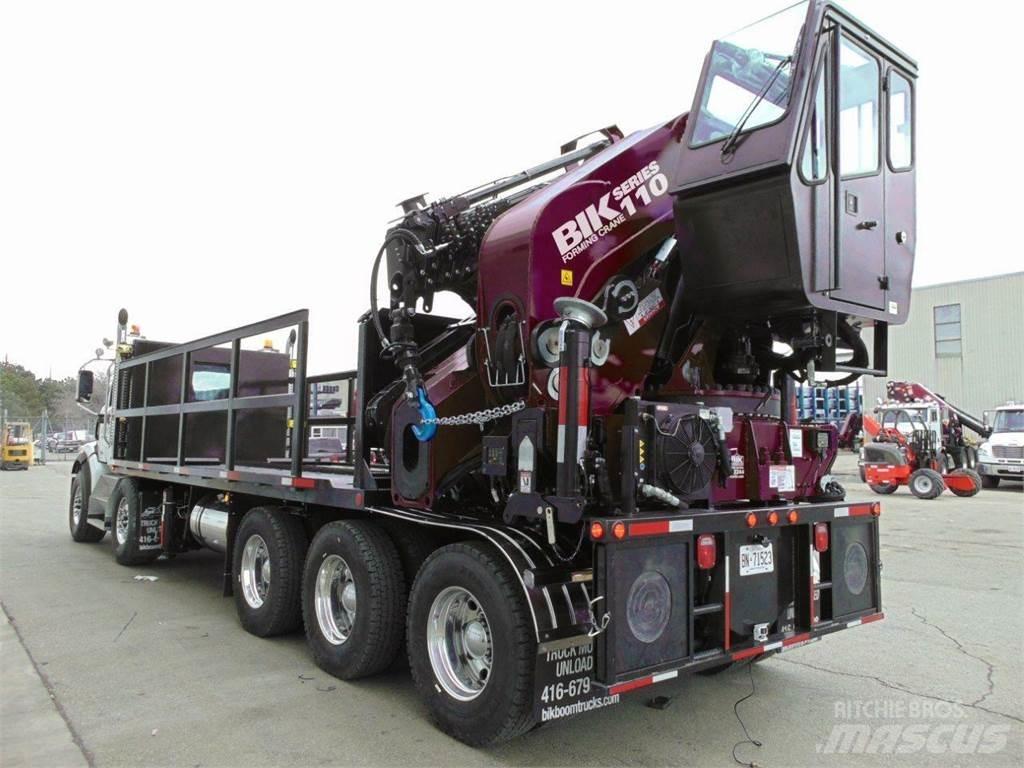

New – BIK “Form-Crane” Series FC-
110

By PM – 100 ton/m
Folding Knuckle Boom with jib – 8+6 extensions – 110’ Horizontal Reach

Main Boom Horizontal Capacity:

36,800 lb ... 16’

20,000 lb ... 23’

16,000 lb ... 33’

1,000 lb ... 47’

7,200 lb ...  67’

Jib Horizontal Capacity:

3,200 lb ... 76’

2,600 lb ... 87’

2,200 lb ... 100’

2,000 lb ... 104’

1,600 lb ... 110’

PM Power-Link connections at Main, Knuckle & Jib Cylinders,  Dual Planetary Gear Motors & Continuous Boom Rotation

Double pilot operated on slewing and pilot operated check valves on all cylinders, Extra function plumbed to boom tip w/Hyd rotator & T-hook

180 degree flip-up Hydraulic Extra Wide Main outriggers at pedestal – 28’ – 7” span
  –  360 degree full load chart stability

Hydraulic Oil Cooler, high pressure return filter and min. 100 –gallon
 hyd aluminum oil tank with gate valves mounted at front under deck

7 – Section DANFOSS
 Proportional Control Valve at Top-Seat with Ladder Access – &  SCANRECO
 Proportional  Radio Remote Control

PM – Power Tronic
onboard  load & function monitoring system, Digital Load Indicator at top seat & remote
, electric/hyd overload protection

Radio Remote Control includes: 2-batteries, in-cab charger, and back-up cord – 5 level turtle (micro) slow down mode

Lifting winch on Main boom
  plumbed to the end of jib with proper load hook & down weights

Installed END OF FRAME, with integral sub-frame, 3/8” front and centre -½” sheer plating at crane for maximized torsion strength

DECK DETAILS
New  – 22’  x 102” Flat Deck:


Steel headboard w/ 4 Side Wrap Winches

Steel Checker plate Floor, winch bar and holder

Integral 6” sub-frame and extension at rear as torque box for boom with all proper engineered sheer platting

X-braces & support

Removable sides to hold in cages

2-Deck access Ladders, reflectors, conspicuity tape, Mud-flaps, 8-Winches and tracks (sliding) under deck (deck to be built same as your truck).

TRUCK DETAILS

New – Western Star 49X  TA Steer /Tridrive  (5 Axles total):
  109,000 lb GVWR

Detroit Diesel 16L – 565 hp / 2,050 ft/lb torque, Engine Brake,  Detroit 12 spd Automated Trans.

Truck cab white

(2) x 20,000 LB front tandem steer axles on Air Ride
 with 425 / 65R22.5 tires

69,000 LB  Tridrive Rears on Hendrickson Primax Air Ride suspension with 54” spread between drives

Double Frame

Polished ALCOA AluminumWheels front and outer rear

Polished dual Vertical Exhaust pipes

Chrome Grille &  Bumper

80 gallon alum fuel tank

Truck Features Include:

A/C, Tilt/Telescopic   steering,  high level Interior,  AM/FM stereo Bluetooth,  air driver’s seat, fixed passenger seat, cruise, heated mirrors,  exterior S/S sun visor, 6 wheel lock-ups
, power windows/locks, Air ride cab, dual roof mounted strobe lights, trailer air tow package, etc…

Also Included
:

Auxiliary Extra-Wide hydraulic outriggers  23’ spread front mounted for 360 degree stability

1” Drawplate Plate at rear of truck frame

Aluminum locking checker plate toolbox installed

(4) PVC stabilizer pads – with holders (4 pcs)

Fully enclosed cab with heat & access steps from bumper

Back up camera with pass side blind side
