BIK FC-92 for sale - the United States



CategoryOther Cranes and Lifting Machines
Brand / modelBIK FC-92
Extra optionsNew/unused
LocationMilford, Massachusetts
United States
Mascus ID864F714C


Price Excluding TaxOn Request


Condition level grade (1-5)
Additional informationBOOM DETAILS

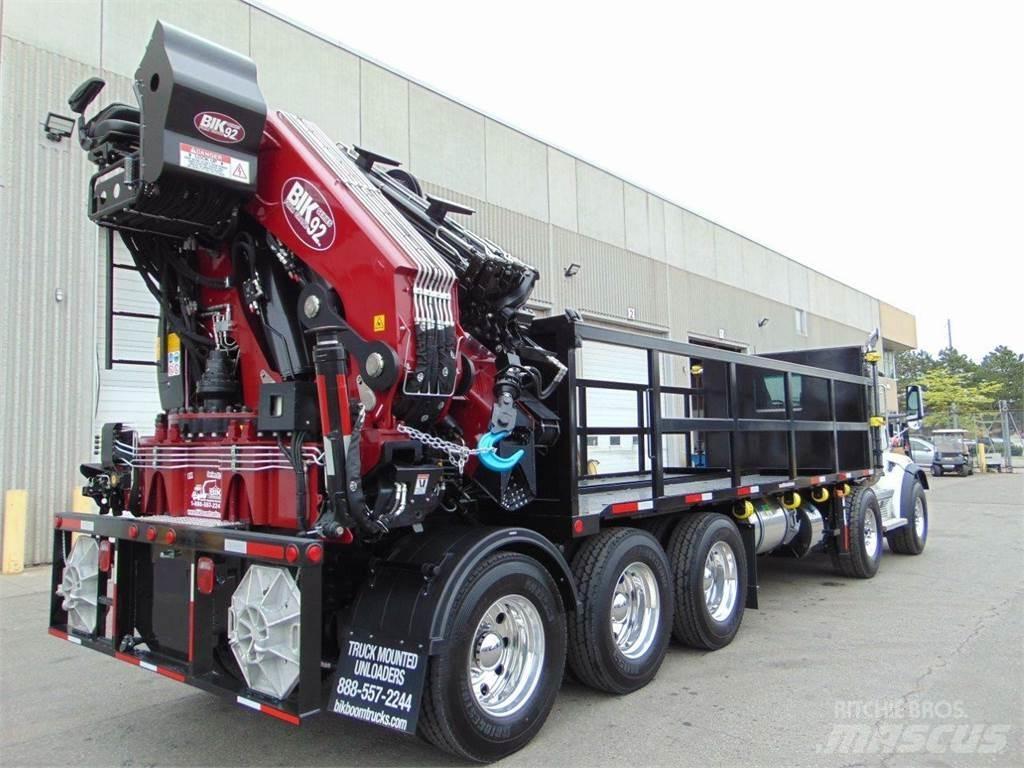

New – BIK “Form-Crane” Series FC-

PM 65 ton/m
Folding Knuckle Boom with jib – 6+6 extensions – 92’ Horizontal Reach

Main Boom Horizontal Capacity:

48,500 lb ... 8’ 2”

28,260 lb ... 14’ 5

5,340 lb ... 25’ 3”

10,000 lb ... 37’

7,210 lb ... 50’ 2”

Jib Horizontal Capacity:

3,850 lb ... 59’ 1”

3,000 lb ...  74’ 6”

2,340 lb ...  81’ 1”

2,100 lb ... 86’ 8”

1,800 lb ... 92’

Power-Link connections at Main, Knuckle & Jib Cylinders

Dual Planetary Gear Motors & Continuous Boom Rotation

Double pilot operated on slewing and pilot operated check valves on all cylinders

Extra function plumbed to boom tip w/Hyd rotator & T-hook

180 degree flip-up Hydraulic Extra Wide Main outriggers at pedestal – 28’ – 7” span

Extra Wide Front Aux Stabilizers with 21’ Span

Hydraulic Oil Cooler, high pressure return filter and min. 70 –gallon
 hyd aluminum oil tank with gate valves mounted at front under deck

7 – Section DANFOSS
 Proportional Control Valve at Top-Seat with Ladder Access – &  SCANRECO
 Proportional  Radio Remote Control

PM – Power Tronic
onboard  load & function monitoring system, Digital Load Indicator at top seat & remote
, electric/hyd overload protection

Radio Remote Control includes: 2-batteries, in-cab charger, and back-up cord – 5 level turtle (micro) slow down mode

Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components  by PM  –  24/7 Crane-Tech Support by BIK

Installed END OF FRAME, with integral sub-frame, 3/8” front and center -½” sheer plating at crane for maximized torsion strength

New –
 22’ x 102” Steel Checker plate
 – LOW PROFILE: to accommodate up to 9’2” tall Form Cages

Installed on pre-engineered 6” main sill sub frame & extension with X-braces for Tortional support tied to truck frame by sheer plating at front, center and rear

aluminum deck surface

60” + headboard, Center Divider

4-vertical mounted winch straps mounted ahead of headboard to wrap around cages for transport

6 – under deck sliding  tie-down winch straps on passenger side, winch bar holder and winch bar, dual ladder access, reflectors and side lights  as required by DOT standards.

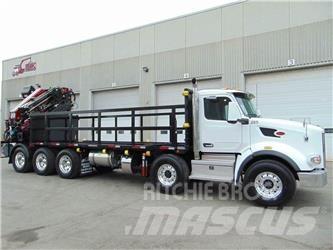

 – Peterbilt 567  5-Axle TA steer / Tri-Drive Diesel Truck:
109,000 lb GVWR

15L Cummins Diesel,   565 hp

Eaton Ultrashift-Plus Automated 18spd trans.

(2) x 20,000 lb tandem steer fronts with 425/65R22.5 Front Floatation tires on Alum rims

69,000 LB Tri-Drive Rears on Hendrickson Air Ride Suspension with  11R22.5 tires on Aluminum rims

Double frame chassis

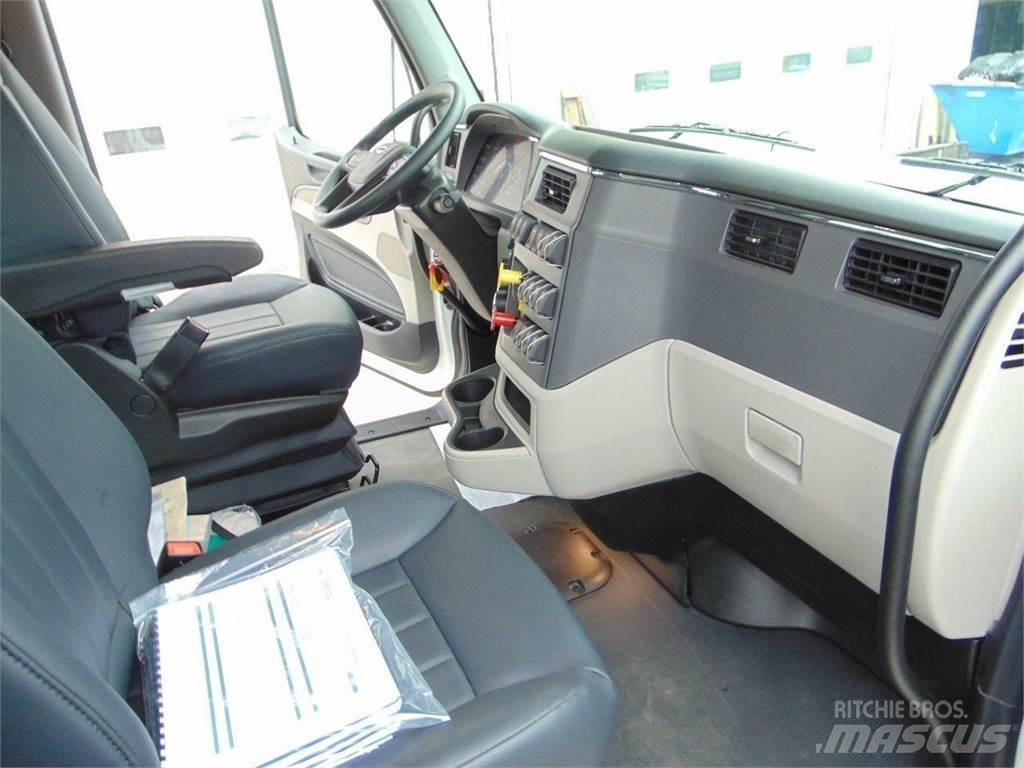

Truck Features Include
: Two Stage Engine Brake, Air Cond.,  AM/FM  stereo, cruise, tilt/tele steer column, power windows/locks, chrome bumper and grill, Power and heated mirrors, engine block heater, painted ext visor,  trailer air tow package, rear wheel lock ups, 80 gal alum fuel tank, trailer air tow package, etc…



Also included:

Two sets of PVC stabilizer pads with holders mounted on truck,

36” aluminum checker plate storage box, hydraulic rotator

1” drawplate installed at rear
