BIK TC-124-XL for sale - the United States



CategoryOther Cranes and Lifting Machines
Brand / modelBIK TC-124-XL
Extra optionsNew/unused
LocationMilford, Massachusetts
United States
Mascus ID63CCB6C8


Price Excluding TaxOn Request


Condition level grade (1-5)
Additional informationBOOM DETAILS

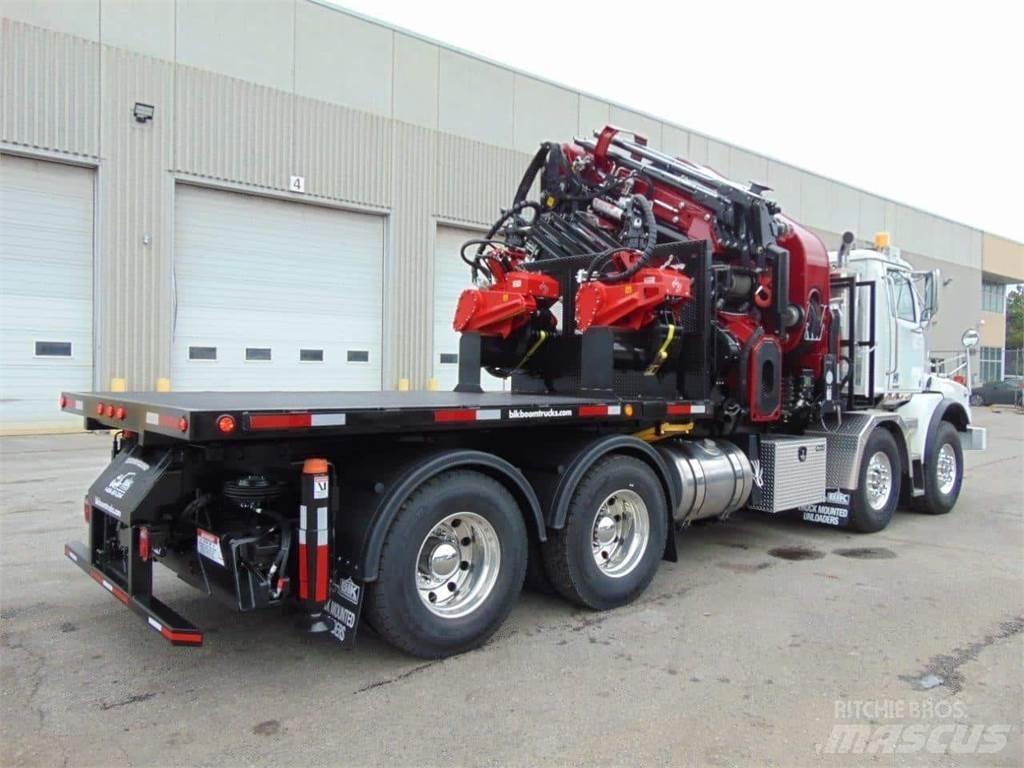

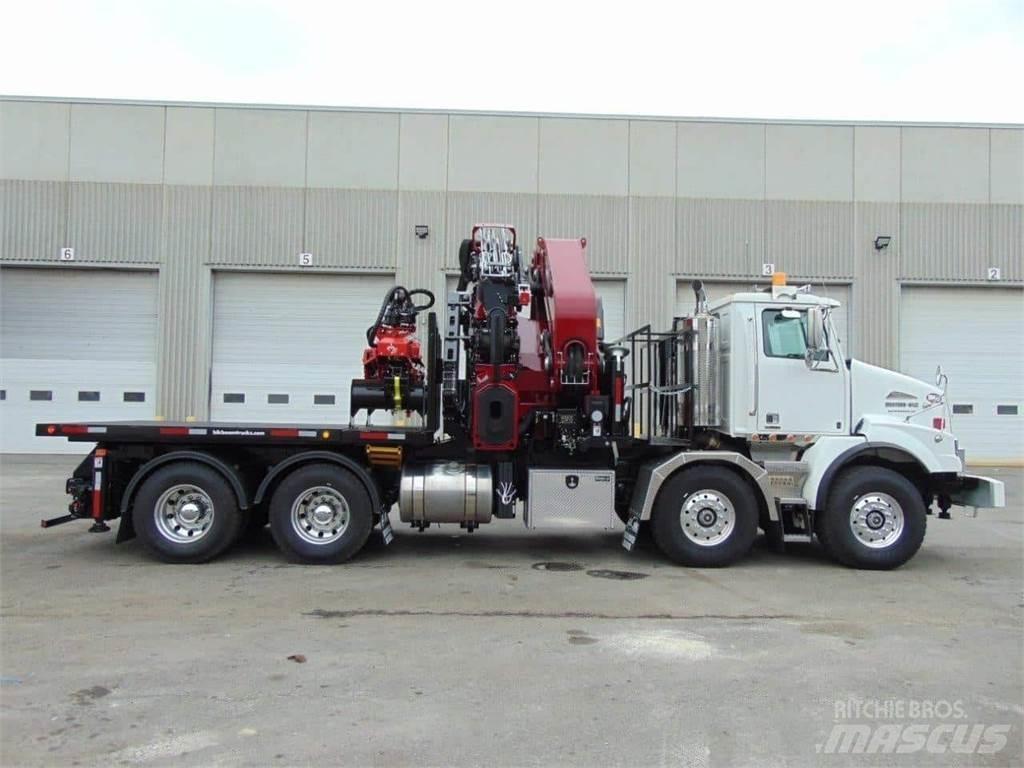

New – BIK Tree-Care Series TC-124-XL –  150 ton/m  Knuckle Boom

8 ext Knuckle Boom w/Detachable 6 ext jib + 1-grapple extension

Including (1) Grapple extention in jib

Boom Capacity of  3
,800 lbs ... 124’ Vertical Reach

Main Boom Horizontal Capacity:

46,000 lb ...  16’

27,000 lb ...  26’

18,200 lb ...  38’

12,700 lb ...   50’

9,800 lb ... 64’

Jib Horizontal Capacity:

5,350 lb ...  73’

4,500 lb ...  85’

3,900 lb ...  96’

3,200 lb ...  108’

w/Grapple extn to  112’

PM connecting rods at First Boom and Knuckle, 15degree negative angle at 1st
 knuckle, 25 degree negative angle at jib

Continuous Rotation
 and Dual Planetary Gear

Special Extra High Tensile Steel Structure

Hydraulic Extra Wide Main outriggers
 at pedestal – 33’ – 6” span – hydraulic tilting when retracted. Radio controlled

Hydraulic Oil Cooler, high pressure return filter and min. 92-gallon oil tank for boom

Lifting winch
 on boom plumbed to jib

 Proportional Control Valve & SCANRECO
 Proportional Radio Remote Control

PM Power Tronic Electronic System allowing constant crane monitoring & visual display with 5-level stability control system

Scanreco Radio Remote
 Control includes: 2-batteries, in-cab charger, back-up cord, load chart  in FT. & LBS.

Load Tested & Installed back of cab, with integral sub-frame to meet or exceed all CMVSS Standards

Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components

New – Western Star 4800 Sloped Short Nose T/A Steer-T/A Rear  – 4 Axle:
 92,000 lb GVWR

DD-13 Diesel – 470 hp with Jake

Eaton Ultrashift 18spd Automated Trans.

(2) x 20,000 LB fronts with 425 / 65R22.5 tires,  52,000 LB Rears on  Tuftrac Susp.

Double Frame

Polished ALCOA Aluminum Wheels front and outer rear

Dual Chrome single polished Exhaust, Chrome Grille &  Bumper

Dual 80 gallon aluminum fuel tank

Loaded with Options including:
A/C, Tilt/Telescopic steering, top level  Interior,  AM/FM/CD,   air driver’s seat, fixed passenger seat, cruise, heated mirrors, exterior S/S sun visor, 4 wheel lock-ups, power  window both sides , power mirrors &  door locks, Air ride cab, trailer air tow package, truck cab white colour,  5th
 wheel on at tandems w/ramps
, etc…

Also Included

(6) pcs – 2” PVC stab pads w/holders

(2) pcs  Alum storage boxed installed

Custom re-enforced manual extension for grapple

Mecanil SG-280 Grapple Saw with spare parts kit

Custom 2’ deck behind boom with grapple saw holder(s)

8’ removable carry deck over 5th

Spot lights on main boom and on jib

2 to 3 day Boom feature/operation familiarization by BIK tech at your location

Other Options Also Available:

(additional) Mecanil SG 160 Grapple saw with spare parts kit & holder

(1) Additional Manual  pull out boom extension for regular lifting hook (adds 5.5’ more reach)

(1) Aluminum single man self-levelling basket

Hook Lift Deck removal system or Dump Body (instead of 5th
wheel or flat deck)
