BIK TC-170 for sale - the United States

ON REQUEST
ON REQUEST

BASIC INFORMATION

CategoryOther Cranes and Lifting Machines
Brand / modelBIK TC-170
ConditionNew/unused
LocationMilford, Massachusetts
Country
United States
Mascus ID9CCD15B7

PRICING

Price Excluding TaxOn Request

DETAILS

Condition level grade (1-5)
Additional informationBOOM DETAILS

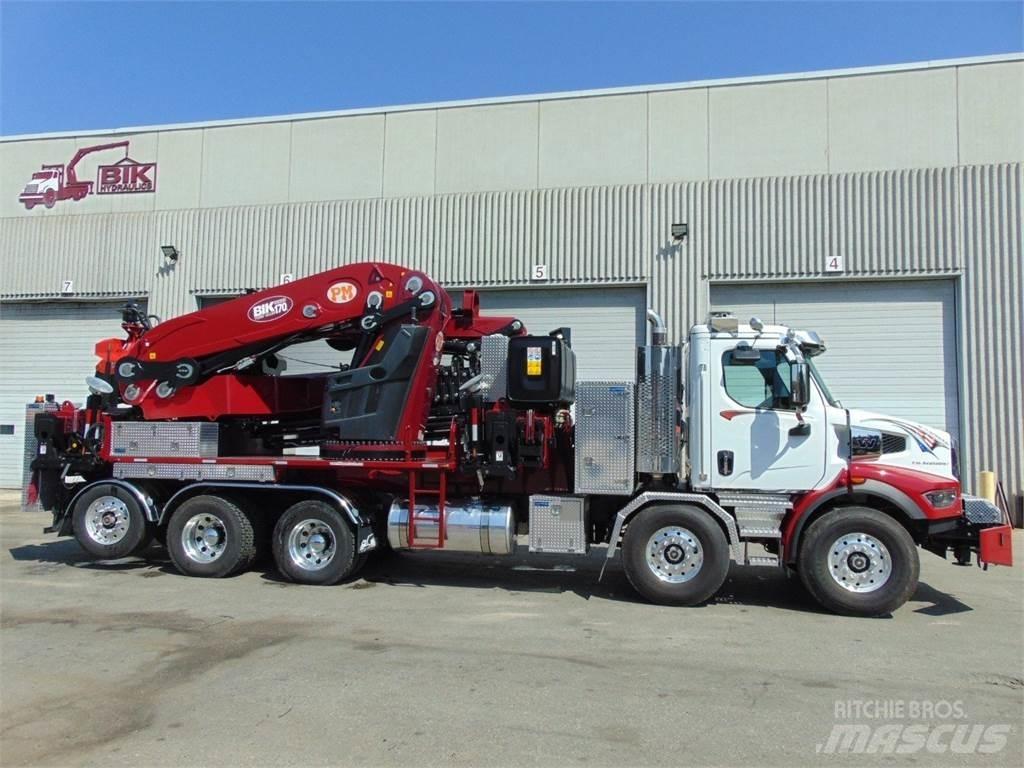

New – BIK Tree-Care Series TC-170 – PM 210 Knuckle Boom

Hydraulic Knuckle Boom with Jib fold on top of deck

8 hydraulic extensions in main and 6 extension in jib with one manual grapple extension

170’ total vertical reach
(158’ horizontal)

Continuous Rotation
 and Dual Planetary Gear
 Rotation

Double pilot operated on slewing and pilot operated check valves on all cylinders

Special Extra High Tensile Steel Structure, Lowest weight to ton/m size in its class

Dual Main lift and dual knuckle lift cylinders – greater power and easy access , Boom / bed wings painted your colour Red

Hydraulic Extra Wide Main outriggers
 at pedestal – 40’
– hydraulic tilting when retracted

Auxilary
34’ spread stabilizers
installed at rear behind drives, 2-hyd out & down rearward & 1-at front bumoer

Hydraulic Oil Cooler, high pressure return filter and min. 92-gallon oil tank for boom

2.7 ton single part line lifting winch plumbed to the end of jib (custom jib stowe brackets on top of bed wing to be established)

DANFOSS
 Split Valve – 2 pressure line system
Proportional Control Valve
 & SCANRECO

Proportional
Radio Remote Control

PM
Power Tronic
Electronic System
allowing constant crane monitoring & visual display

Scanreco Radio Remote
 Control includes: 2-batteries, in-cab charger,
back-up cord, Crane Painted PM Blue, load chart
in FT. & LBS.

Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components

TRUCK DETAILS

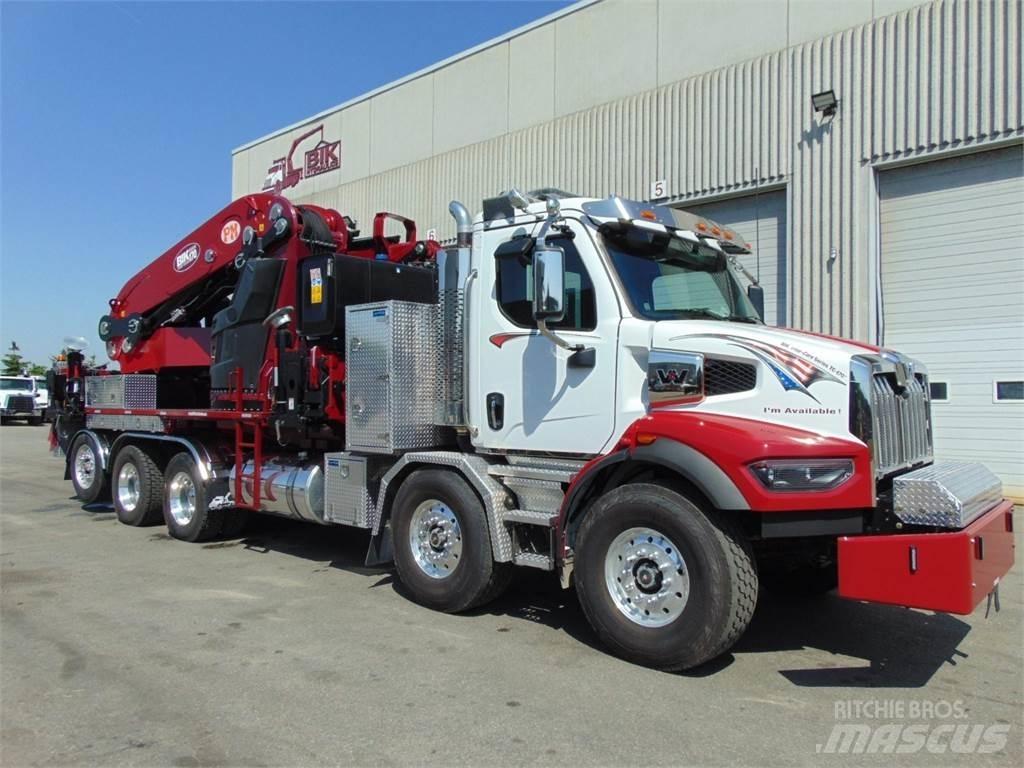

New –
Western Star 4800 Sloped Short Nose
T/A Steer-T/A Rear with Tag axle– 5 Axle

DDC-13 Diesel –
102,000 lb GVWR

470 hp with Jake

Eaton Ultrashift 18 spd trans.

(2) x 20,000 LB fronts with 425 / 65R22.5 tires

46,000 LB Rears on
air ride Susp.

20,000 lb self steer tag axle behind t/a’s

Double Frame

Polished ALCOA Aluminum Wheels front
and outer rear

Dual Chrome single polished Exhaust, Chrome Grille &
Bumper

Dual 80 gallon aluminum fuel tank

Loaded with Options including:

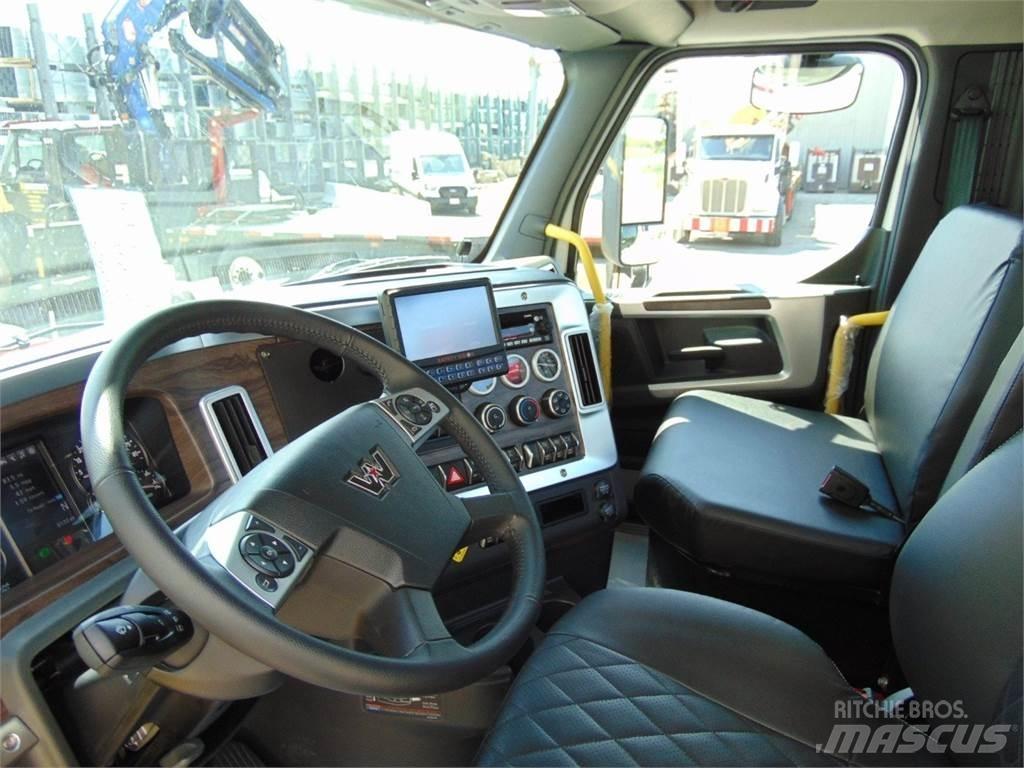

A/C, Tilt/Telescopic steering, top level
Interior,
AM/FM/CD,
air driver’s seat, fixed passenger seat, cruise, heated mirrors, exterior S/S sun visor, front steel bumper with fog lights and open top storage box behind bumper both sides, 4 wheel lock-ups, power
window both sides , power mirrors &
door locks,
Air ride cab, full differential locks, trailer air tow package,
truck cab white color, truck painted your colours as requested, rear half fender from checker plate (similar to 2
nd

 steer axle curves), rear 3-section lights to be in checke rplate material and rear truck frame cover, Dot bumper,
etc…

Options Included
:

(4) pcs – 2” PVC stab pads w/holders

(7)
Alum storage box installed

Custom re-enforced manual extension for grapple

Mecanil SG-280 Grapple Saw with spare parts kit

On site boom feature/operation familiarization by BIK tech for 2-3 days

Additional Options Available:



Dump deck or Chip Box type dump body (instead of flat deck or 5
th

 wheel)

(2) Additional Manual
pull out boom extensions for regular lifting hook to end of hydraulic reach (adds
11’ more reach)

(1) Aluminum single man self-levelling basket

Mecanil SG160 grapple saw with spare parts kit
