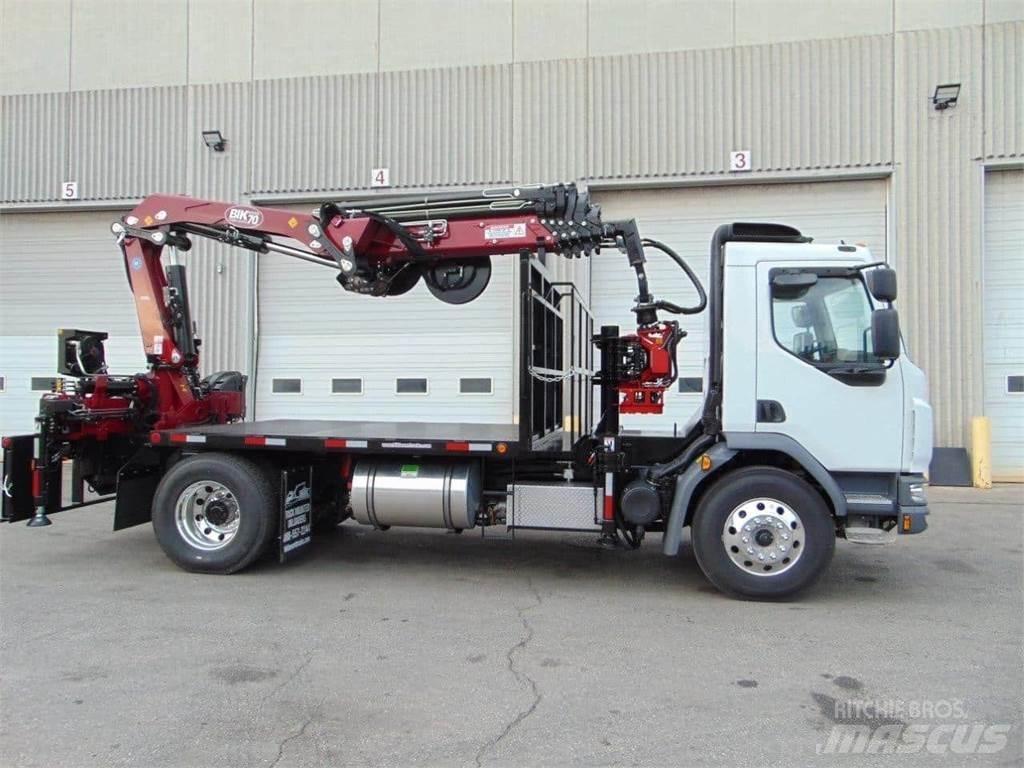

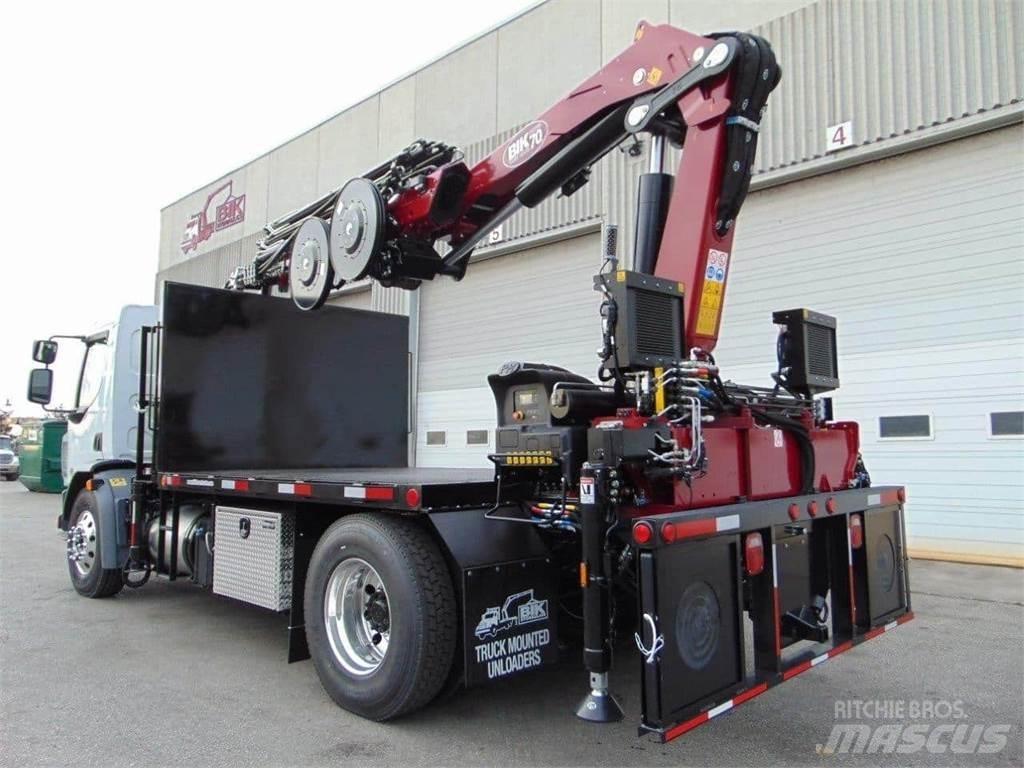

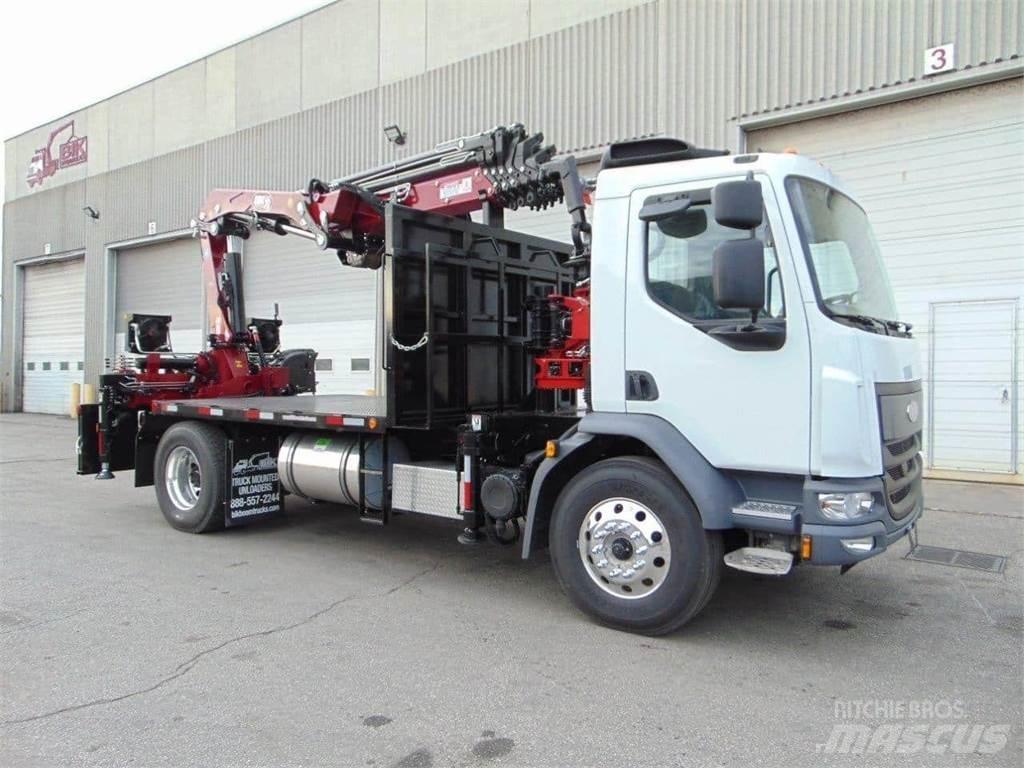

BIK TC-70 for sale - the United States

ON REQUEST
ON REQUEST

BASIC INFORMATION

CategoryOther Cranes and Lifting Machines
Brand / modelBIK TC-70
ConditionNew/unused
LocationMilford, Massachusetts
Country
United States
Mascus IDB16FC269

PRICING

Price Excluding TaxOn Request

DETAILS

Condition level grade (1-5)
Additional informationBOOM DETAILS
New
– BIK Tree-Care Series TC-70
(PM 23.5 ton/m)



6-hydraulic extensions & one manual grapple extension

Vertical Reach of 70’

Handles 3,800 lbs ... 70’ Vertical

HORIZONTAL Capacities:

9,800 lb ... 14’

5,900 lb ... 20’

4,330 lb ... 26’

2,560 lb ... 40’

1,750 lb ... 55’

408 Degrees Rotation on Main Hydraulic Slewing

Double pilot operated on slewing and pilot operated check valves on all cylinders, Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom

DANFOSS
 Proportional Valve Controls
 – single sided operator control station,
Load Holding Valves

 on all cylinders

PM Power
–Tronics
 electronic monitoring & load control with Stabilizer deployments sensors & didgital read-out on the remote

SCANRECO
 Radio Remote Control

Hydraulic
OUT and Hydraulic DOWN

 Extra Wide

 – 21’ 6” span
 , 2-sided stabilizers w/ round foot pads welded to bottom of cylinder.

15 degree negative angle

 on folding arm
–
Hydraulic Overload Protection

 – simplified sysTem that prevents boom from overload

Two functions plumbed


to end of 6th

 extn,
– Heavy Duty Pedestal Turning Cylinders

 for greater turning torque & reduced wear

Installed at rear on
integral sub base / torque box, Engineer certified stability inspection & certificate,

Warranty: 1-Yr. parts & labour on entire boom, 3-Yr. on Structural Components


DECK DETAILS
New  – 10’ x 102” Steel Deck  Body

60” steel head board

Steel checker plate deck surface

Main sil X-braces & support

2-Deck access Ladders at Headboard

2-Ladders at rear

Reflectors and Mud-flaps

6 – Sliding Winches and track under deck

Painted black.

Mat Rack and Grapple Saw Rest

Integrated back of cab (ahead of head board) – To carry boom stowed over deck on Head Board with Grapple Attached.

TRUCK DETAILS
New
 – 2023 Peterbilt 220 Cab-Over Single axle Diesel Truck:

26,000 lb end rating – Cummins 260 hp Diesel

Allison 6spd Automatic transmission.

12,000 lb rated front axle with 11R22.5 Front tires on polished Aluminum rims

21,000 LB rated Rears on Spring Suspension with 11R22.5 tires on Polished Aluminum outer rims – steel inner

Air brakes

180” Wheel Base

Truck Features Include:
 Air cond., AM/FM  stereo,  Bluetooth, USB port, power windows, tilt steering,  power & heated mirrors, cruise, painted bumper, fog lights, aluminum battery box cover, 75 gal Aluminum fuel tank, engine block heater, etc…

Also Included:

(2) pcs – 2” PVC stabilizer pads – with holders

36” Alum storage boxes installed

Mecanil SG-160 Grapple saw with spare parts kit

Grapple saw holder/stowe bracket on side of frame near boom

BIK tech to familiarize boom operation at your facility for 2-3 days,

Other Additional Available Options:

(1) Aluminum self evelling man basket

Drawplate
 with reese type pintle hook receiver with electric trailer brake actuator installed

Additional 3’ Aluminum storage box installed under deck

TC-78 version
 – with 8’ extra reach , Handling 2,800 lbs ... 78’ Vertical Reach

3 sets – removable log bunks installed on each side of platform
BIK Boom Trucks
