PM 100028 SP

Price excl. VAT

On Request

Compnay LOGO
Images4
PM 100028 SP Other Cranes and Lifting Machines
PM 100028 SP Other Cranes and Lifting Machines
PM 100028 SP Other Cranes and Lifting Machines
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Category
Other Cranes and Lifting Machines
Brand / model
PM 100028 SP
Year
2018
Location
Milford, Massachusetts
Country
United States
General grade
1
2
3
4
5
Mascus ID
5639EBB7

DETAILS

Maximum lift capacity
220,462 lbs
Attachments
https://freecranespecs.com/PM/100028-SP
Additional information

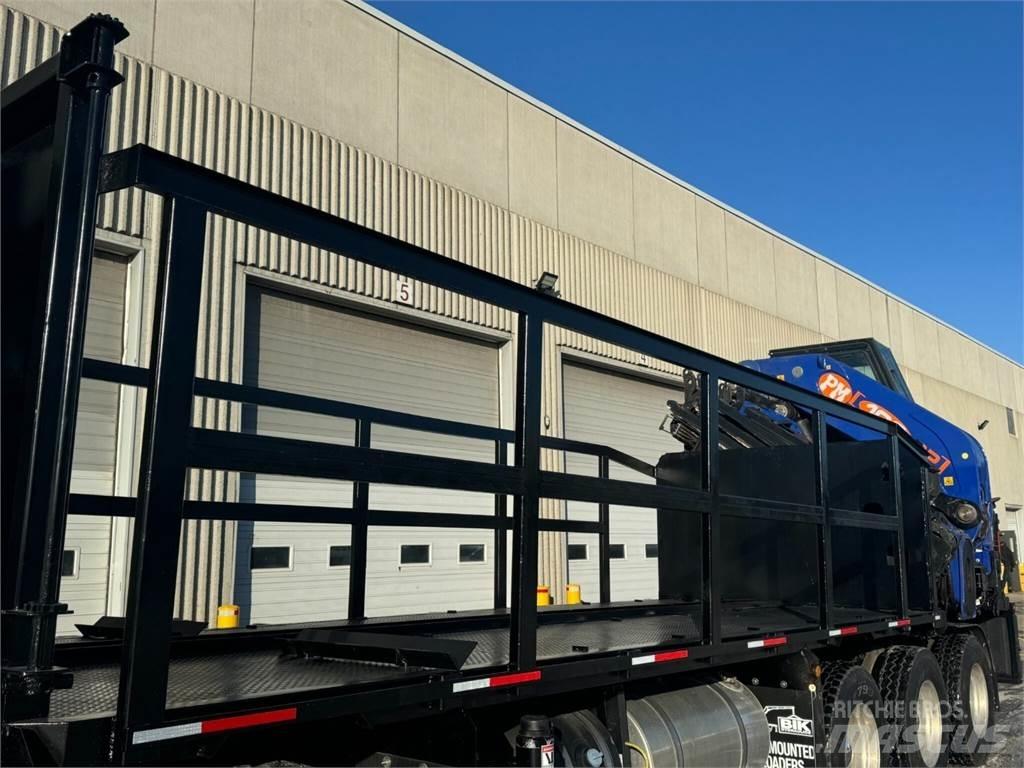

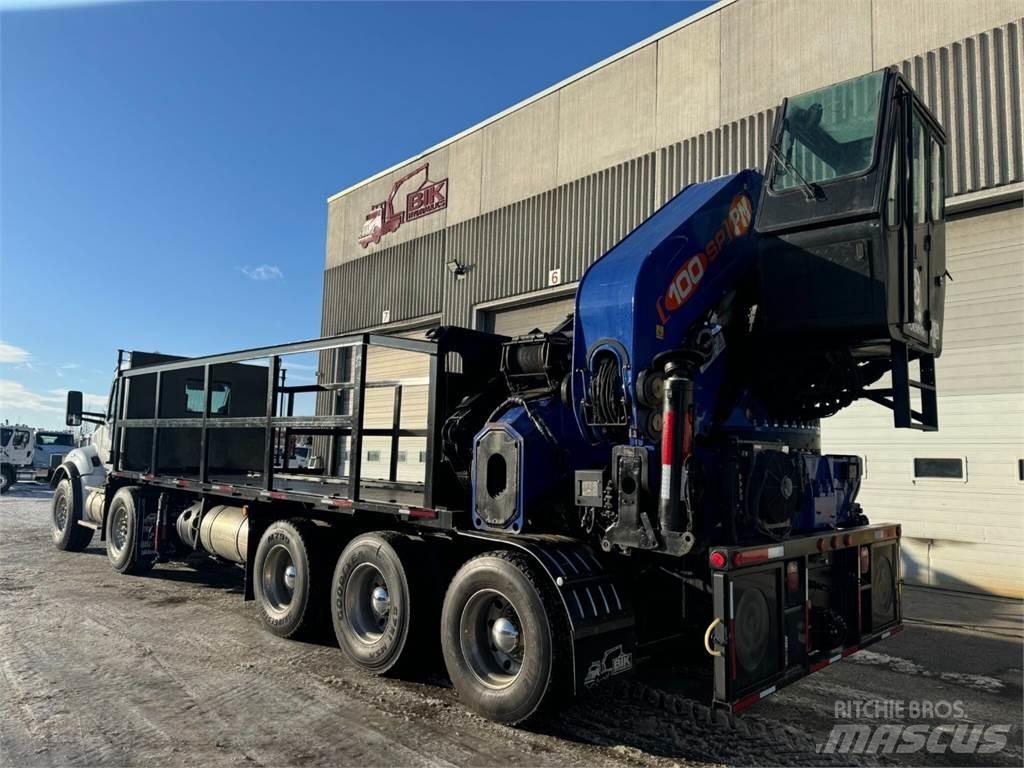

Boom Details PM 100028-SP  Knuckle Boom   Folding Hyd 8 ext Knuckle Boom  – 65’ Horizontal Reach    (77’ vertical) Horizontal Capacity: 36,800 lb ... 16’ 20,100 lb ... 27’ 16,000 lb ... 33’ 13,000 lb ... 39’ 9,300 lb ... 52’ 6,000 lb ... 65’ PM Power-Link connections at Main, Knuckle & Jib Cylinders, Dual Planetary Gear Motors & Continuous Boom Rotation 180-degree flip-up Hydraulic Extra Wide Main outriggers at pedestal – 30’ – 7” span  – 360-degree full load chart stability Hydraulic Oil Cooler, high-pressure return filter and min. 80–gallon hyd oil tank with gate valves mounted at the front under deck Scanreco Radio Remote Control includes:  2-batteries, in-cab charger, and backup cord – 5 level turtle (micro) slow-down mode Simplified Hydraulic Overload System  allowing maximized uptime and ease of maintenance Manual Controls –  Danfoss valve located on boom column with plastic cover and mechanical hour meter Lifting Winch  – 4-ton single-line pull winch that can be plumbed for up to 4 part line accessories Crane Painted PM Blue – Certified Painting Quality System – Load Tested and certified Installed at rear, with integral sub-frame, 3/8” front and centre -½” sheer plating at crane for maximized torsion strength Also Included: Auxiliary Extra-Wide hydraulic outriggers  23’ spread front mounted for 360 degree stability 1” Drawplate Plate at rear w/pintle hook 36” Alum locking checker plate toolbox installed (8) PVC stabilizer pads – with holders (4 pcs).,   NOTE: Pictures of Shown when Unit was New Ideal Heavy Lift Precast Unloader CALL FOR DETAILS AT:  1-888-557-2244  OR   416-679-3838 Deck Details 22’  x 102”  Steel Deck: 66” head board with window cut out with mesh Steel checker plate Floor Winch bar and holder Integral steel sub-frame and extension at rear as torque box for boom with all proper engineered sheer planting X-braces & support 2-Deck access Ladders,  reflectors, conspicuity tape, Mud-flaps 6-Winches and tracks (sliding) under deck. Truck Details Used – 2018 Kenworth T880  T/A Steer – Tridrive  (5 Axles total):  99,000 lb GVWR Paccar 13L Diesel – 505 hp w/Jake – 1,850 ft/lb torque Eaton Ultrashift Plus Automated 18 spd trans,  Truck cab white (2) x 20,000 LB fronts with 425 / 65R22.5 tires 69,000 LB Tridrive Rears on Hendrickson Primax Air Ride Susp. With 56” spread at t/a, Double Frame Polished ALCOA Aluminum Wheels front and outer rear Chrome single polished Exhaust, Chrome Grille &  Bumper 120-gallon alum fuel tank Loaded with Options Including:    A/C, Tilt/Telescopic steering, AM/FM stereo with Bluetooth, high back air driver’s seat, fixed passenger seat, cruise, heated mirrors,  exterior S/S sun visor, 6 wheel lock-ups , power windows and locks, Air ride cab, full differential locks, trailer air tow package, etc… Show more

BIK Boom Trucks - Milford, MA

177 Central St. 01757 Milford Massachusetts United States
