PM 11523 for sale - the United States

ON REQUEST
ON REQUEST
PM 11523

BASIC INFORMATION

CategoryOther Cranes and Lifting Machines
Brand / modelPM 11523
Year2022
Extra optionsNew/unused
LocationMilford, Massachusetts
Country
United States
Mascus ID57FCB7D5
+ Show more details

PRICING

Price Excluding TaxOn Request

DETAILS

Condition level grade (1-5)
Additional informationBOOM DETAILS

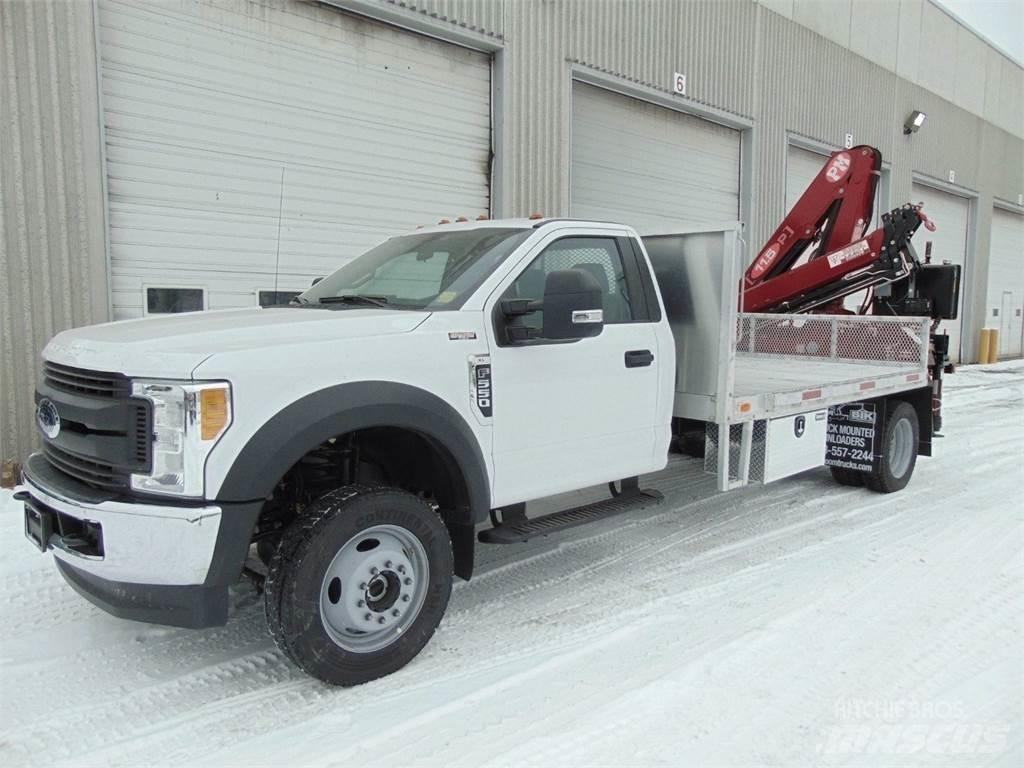

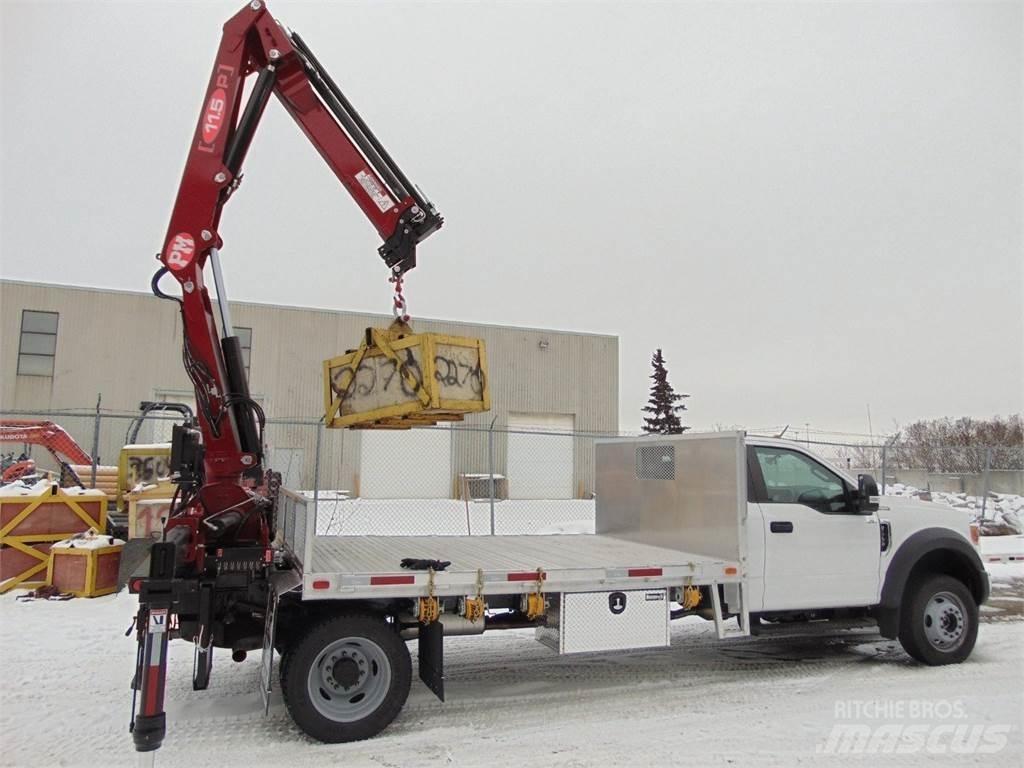

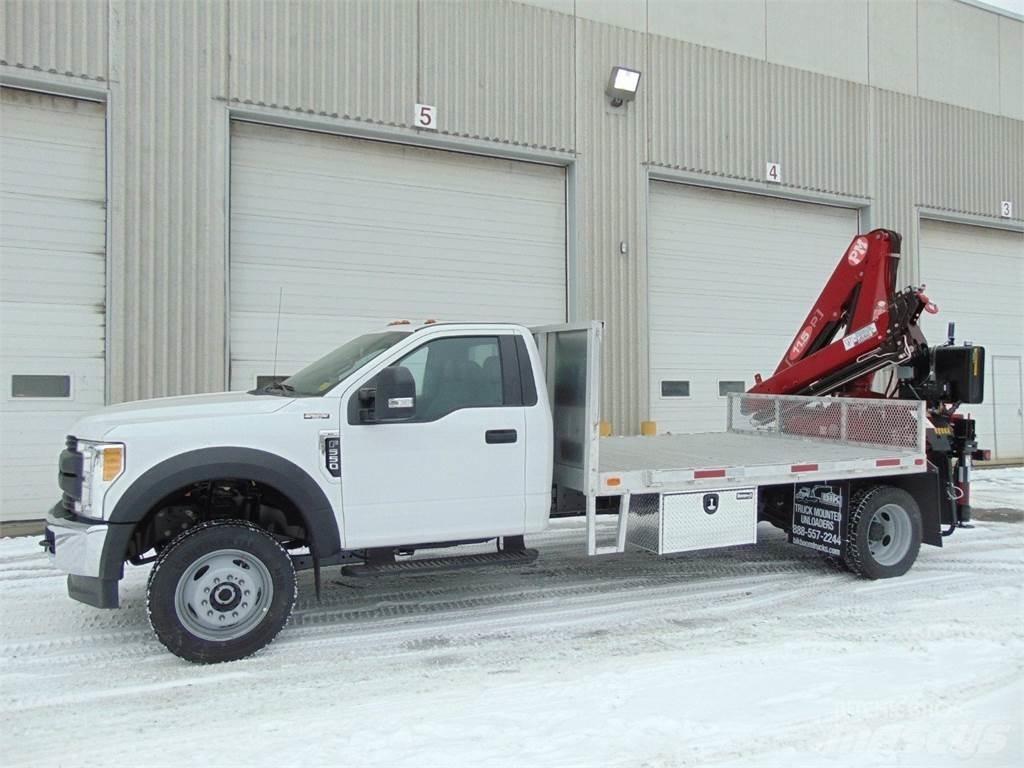

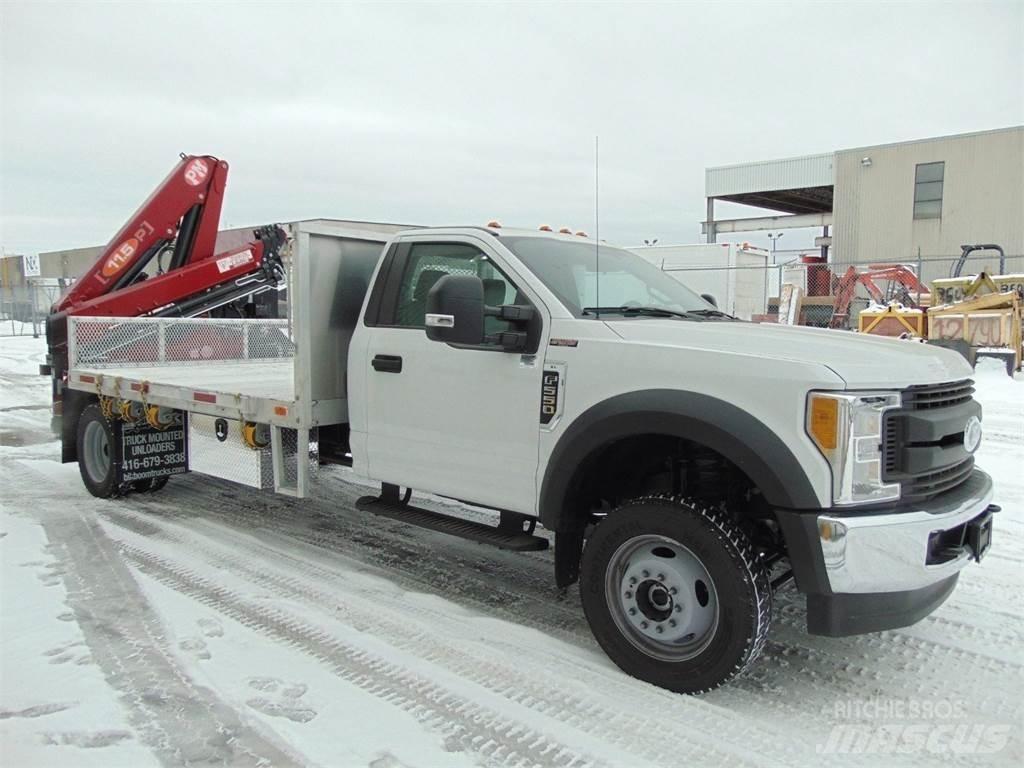

NEW – PM 11523 KNUCKLE BOOM

Folding Hydraulic Knuckle Boom 3 -Hyd Extensions to 32’ 6”’ Horizontal Reach, (45’ Vertical)

Horizontal Capacity:

9,420 lb ... 8’ 0”

6,940 lb ... 12’ 1”

3,640 lb ... 18’ 0”

2,600 lb ... 25’ 3”

2,000 lb ... 32’ 6”

408 Degrees Rotation on Main Hydraulic Slewing, Crane Painted PM Blue

Double Pilot Operated on Slewing and Pilot Operated Check Valves on all Cylinders

Hydraulic Extra Wide Main Outriggers at Pedestal – 14’ 10” Span

Hydraulic Oil Cooler, High Pressure Return Filter and Min. 40-Gallon Oil Tank for Boom

SCANRECO Wireless Radio Remote with Back-up Corded Remote with Hauve Proportional Control Valve / Manual Ground Level Controls

Hydraulic OUT and Hydraulic DOWN 2-Sided Stabilizers w/Round Foot Pads Welded to Bottom of Cylinder

Hydraulic Overload Protection – Simplified System That Prevents Boom from Overload

Load Holding Valves on Each Cylinder for Safety and Security of Operator and Load

Heavy Duty Pedestal Turning Cylinders for Greater Turning Torque, Reduced Wear, and Improved Precision

Boom Mounted at Rear of Truck on Engineered Sub Frame. Engineer Certified Stability Testing

DECK DETAILS
NEW –  10’ 6” ALUMINUM FLAT DECK

Sub Base / Torque Box Steel Tube with Cross Members, 8’ Wide Plus Rub Rail (102” Total Width)

4 Under-Deck Sliding Tie-Down Winch Straps, Aluminum Extruded Deck Surface

40” Aluminum Headboard Height with Smooth Alum Surface with Window Cut Out w/Mesh

DOT Tape and Reflectors, Dual Front Access Ladders, Primed and Painted Gloss Black, LED Side Clearance Lights

(Removable Sides are Available)

TRUCK DETAILS
NEW – FORD F-550 2×4 OR 4×4 SINGLE-AXLE GAS FUEL TYPE TRUCK – 19,500 LBS GVWR PACKAGE

6.8L – V10 Gas (or) Diesel Available, 6 Spd Automatic Trans, 4.88 Limited Slip Rear Axle Ratio, Payload-Plus Package Upgrade

7,000 lb Front Axle with Steel Rims on 225/70R 19.5 Tires

12,700 lb Rear Multi-leaf Suspension with 225/70R 19 Tires, Steel Rims

Hydraulic Brakes, Transmission Cooler, A/C, Cruise Control, Power Windows & Locks, Driver Convenient Package, AM/FM Stereo, Bluetooth, Platform Running Boards, Chrome Bumper, etc…
